Engine identification

Engine number at the marked surface.

Replacement drives are already assigned a number containing the identification and engine number at the factory.

The old drive number must be imprinted for replacement crankcases.

Magnesium crank cases feature a label, the engine number does not need to be embossed.

M47 / M47TU / M47T2

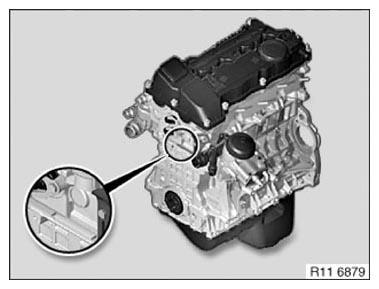

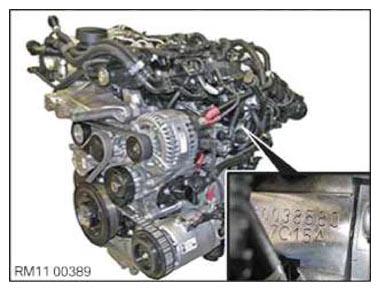

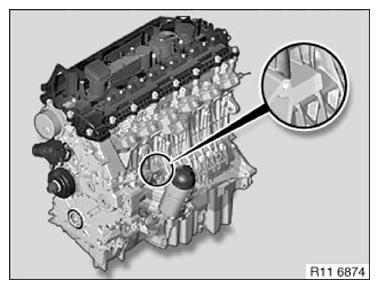

Fig 1: Engine Identification Mark (M47/M47TU/M47T2)

Courtesy of BMW OF NORTH AMERICA, INC.

M57 / M57TU / M57T2

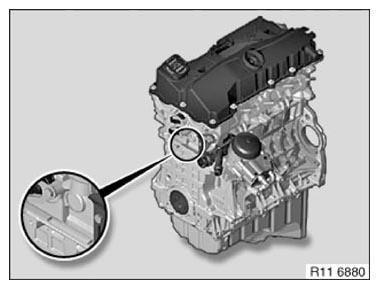

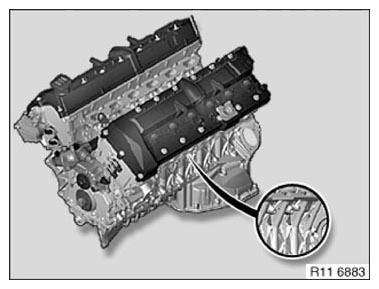

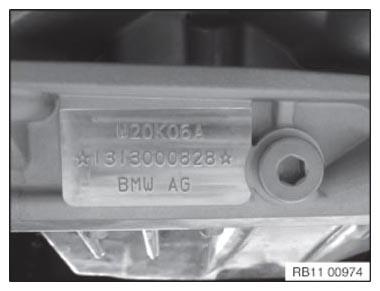

Fig 2: Engine Identification Mark (M57/M57TU/M57T2)

Courtesy of BMW OF NORTH AMERICA, INC.

M67 / M67TU

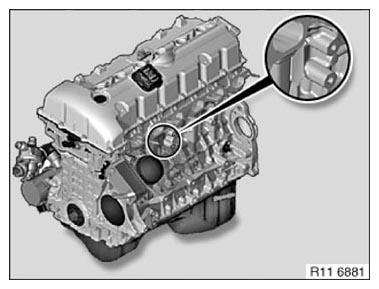

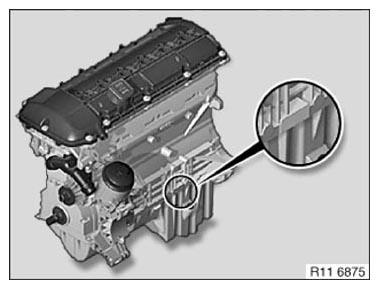

Fig 3: Engine Identification Mark (M67/M67TU)

Courtesy of BMW OF NORTH AMERICA, INC.

N47 / N47S / N47C / N47T / N57 / N57S / N57T

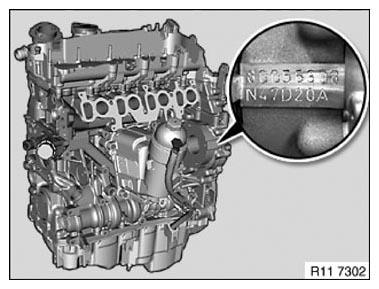

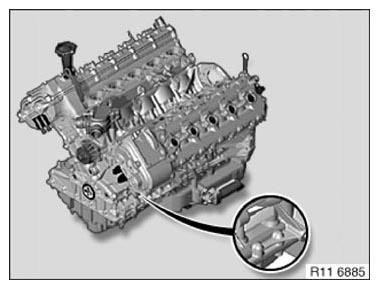

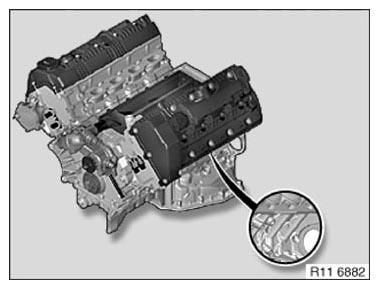

Fig 4: Engine Identification Mark (N47/N47S/N47C/N47T/N57/N57S/N57T)

Courtesy of BMW OF NORTH AMERICA, INC.

M52 / M52TU

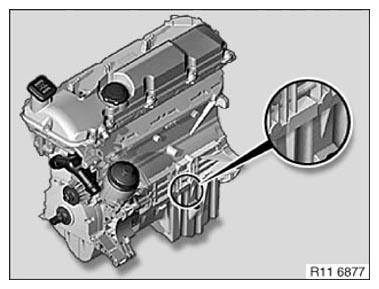

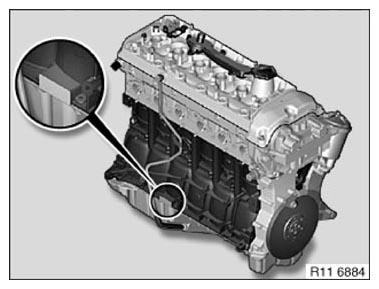

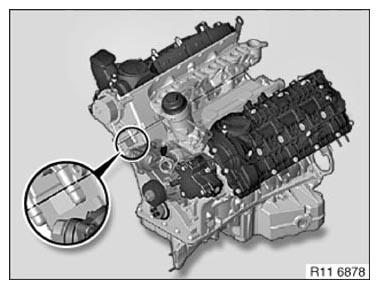

Fig 5: Engine Identification Mark (M52/M52TU)

Courtesy of BMW OF NORTH AMERICA, INC.

M54

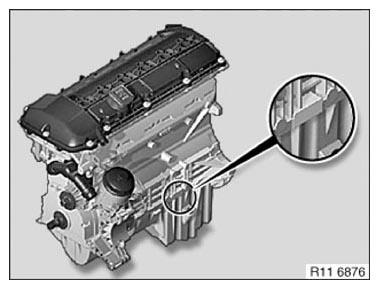

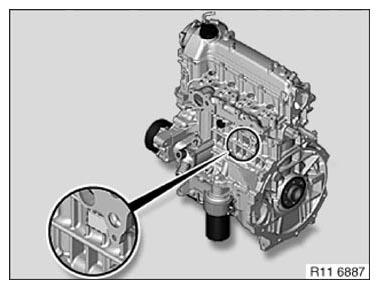

Fig 6: Engine Identification Mark (M54)

Courtesy of BMW OF NORTH AMERICA, INC.

M56

Fig 7: Engine Identification Mark (M56)

Courtesy of BMW OF NORTH AMERICA, INC.

N20 / N26

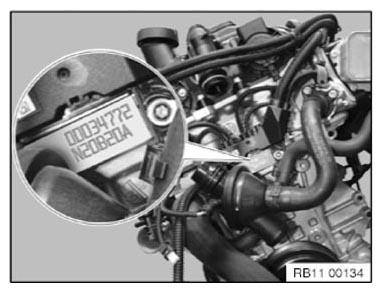

Fig 8: Engine Identification Mark (N20/N26)

Courtesy of BMW OF NORTH AMERICA, INC.

N40 / N45 / N45T / N43

Fig 9: Engine Identification Mark (N40/N45/N45T/N43)

Courtesy of BMW OF NORTH AMERICA, INC.

N42 / N46 / N46T

Fig 10: Engine Identification Mark (N42/N46/N46T)

Courtesy of BMW OF NORTH AMERICA, INC.

N51 / N52 / N52K / N52T / N53 / N54 / N55

Fig 11: Engine Identification Mark (N51/N52/N52K/N52T/N53/N54/N55)

Courtesy of BMW OF NORTH AMERICA, INC.

N62 / N62TU

Fig 12: Engine Identification Mark (N62/N62TU)

Courtesy of BMW OF NORTH AMERICA, INC.

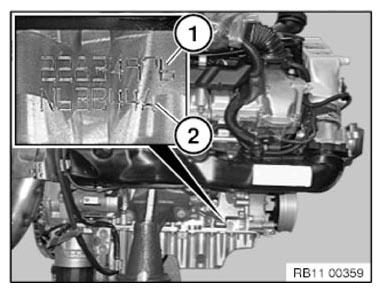

Position (1) engine number.

Position (2) engine code letters. N63, N63TU.

S63

N74

S63T0 to engine number 2001 0052 on right side cyl. 1-4.

S63T0 from engine number 2001 0053 on left side cyl.l 5-8.

E72 Vehicles must be imprinted on the left side cyl. 5-8.

Fig 13: Engine Code Letters

Courtesy of BMW OF NORTH AMERICA, INC.

N73

Fig 14: Engine Identification Mark (N73)

Courtesy of BMW OF NORTH AMERICA, INC.

S54

Fig 15: Engine Identification Mark (S54)

Courtesy of BMW OF NORTH AMERICA, INC.

S85 / S65

Fig 16: Engine Identification Mark (S85/S65)

Courtesy of BMW OF NORTH AMERICA, INC.

S55

Fig 17: Engine Identification Mark (S55)

Courtesy of BMW OF NORTH AMERICA, INC.

W10 / W11

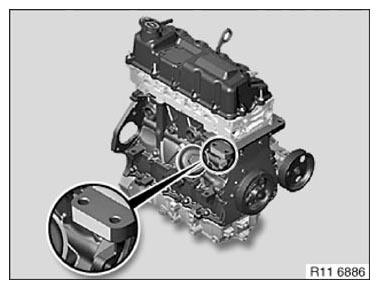

Fig 18: Engine Identification Mark (W10/W11)

Courtesy of BMW OF NORTH AMERICA, INC.

W16

Fig 19: Engine Identification Mark (W16)

Courtesy of BMW OF NORTH AMERICA, INC.

W17

Fig 20: Engine Identification Mark (W17)

Courtesy of BMW OF NORTH AMERICA, INC.

W20

Fig 21: Engine Identification Mark (W20)

Courtesy of BMW OF NORTH AMERICA, INC.

N12 / N13 / N14 / N16 / N18

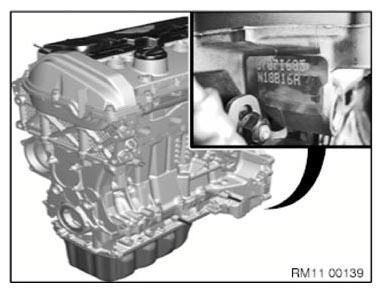

Fig 22: Engine Identification Mark (N12/N13/N14/N16/N18)

Courtesy of BMW OF NORTH AMERICA, INC.

B37 / B38 / B47 / B48 / B57 / B58

Fig 23: Engine Identification Mark (B37/B38/B47/B48/B57/B58)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
