22 11 110 Replacing left engine support arm (S63)

Necessary preliminary tasks:

• Secure engine in INSTALLATION POSITION .
• Lower FRONT AXLE SUPPORT (left-hand drive models only)

Release screw (1).

Tightening torque 22 11 2AZ .

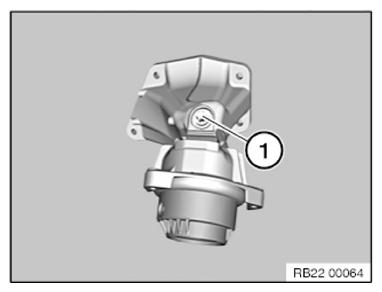

Fig 1: Identifying Left Engine Support Arm (S63) Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 22 11 3AZ .

Remove engine support arm.

Installation note:

Attention!

To ensure play between engine mount and engine support arm, lower the engine completely before tightening the screw connection (engine mount/engine support arm).

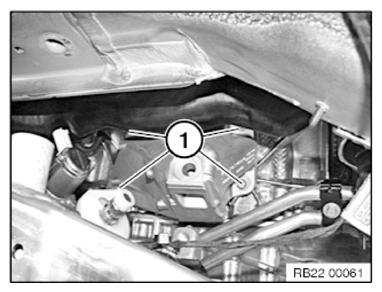

Fig 2: Identifying Engine Support Arm Screws

Courtesy of BMW OF NORTH AMERICA, INC.
