Install control unit bracket

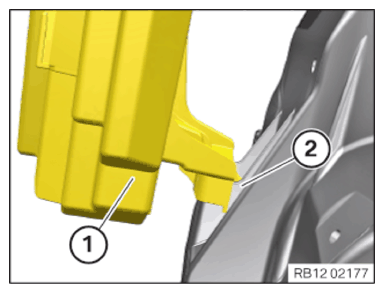

- Make sure the control unit bracket (1)
at bottom is fed into the mount (2)
correctly.
- Feed in the control unit bracket (2) and install.
- Tighten down screws (1)
.TIGHTENING TORQUES SPECIFICATION
Control unit bracket at the shock tower Hexagon screw tightening torque 8 Nm - Feed in and install the cable clip (1)
.
The lock (arrow) must audibly engage.
- Attach the cable bracket (1)
to the control unit bracket (2)
and lock.
The lock (arrow) must audibly engage.
- Connect and lock the connector (2) on the control unit bracket (3).
The connector (2) must engage audibly.
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Attach the connector (2)
to the control unit bracket (3)
and lock.
The connector (2) must engage audibly.
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Secure the clamps (arrows).
Follow-up work
- Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to INSTALLING COVER OF THE DME CONTROL UNIT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
