Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before replacement, record the personalization settings to transfer to the new module (if they are available). Refer to Body Control Module (BCM) Programming/RPO Configuration (DIM) , Body Control Module (BCM) Programming/RPO Configuration (IPM)  or Body Control Module (BCM) Programming/RPO Configuration (RIM)  .
  2. Remove the right sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
  3. Remove the Dash Integration Module (DIM) from the bracket by releasing the tab behind the module.
  4. Disconnect the electrical connectors (1).

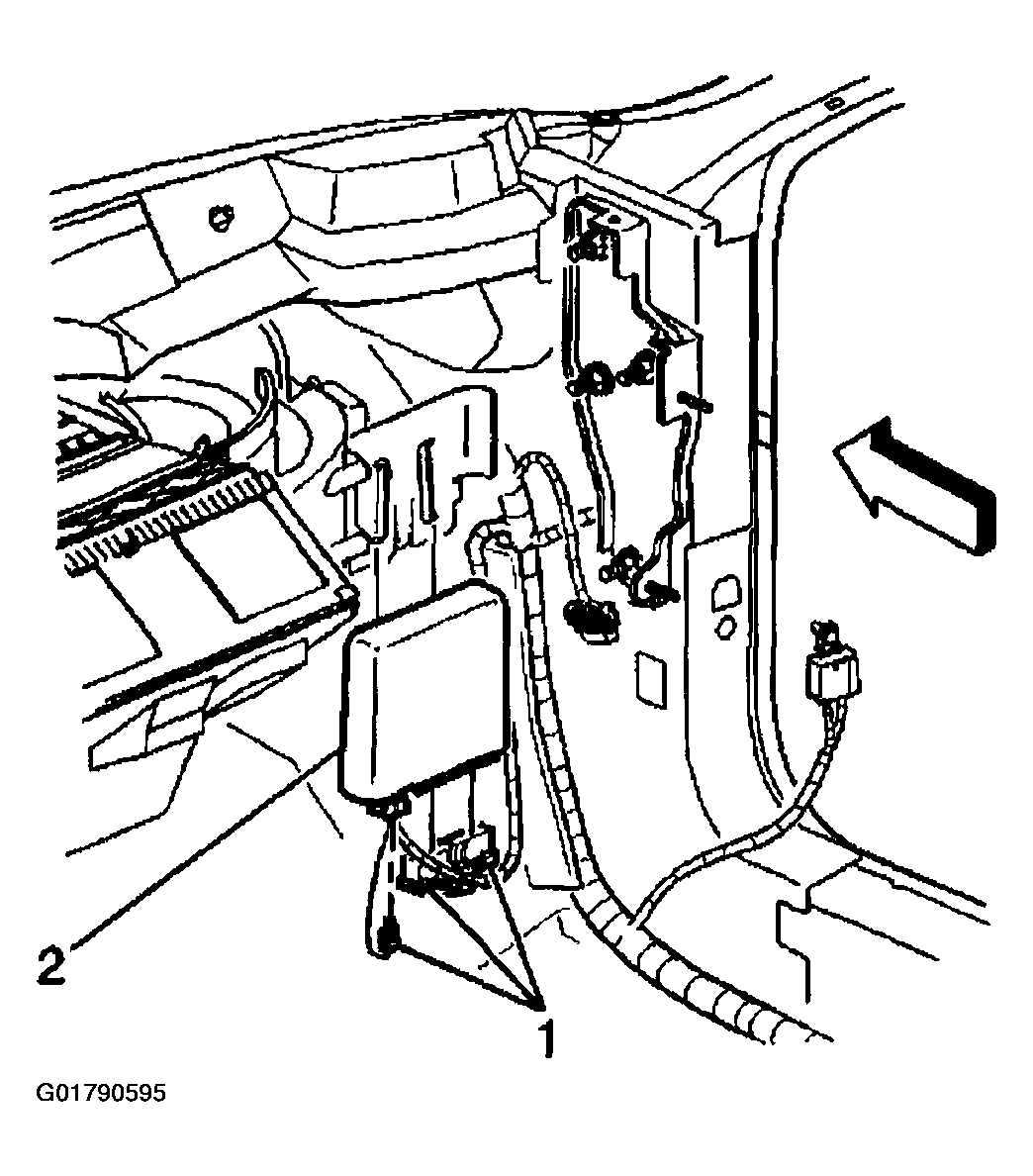

    Fig 1: Removal & Installation Of Dash Integration Module
    G01790595Courtesy of GENERAL MOTORS CORP.
