Removal Procedure
WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the left sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT-RIGHT .

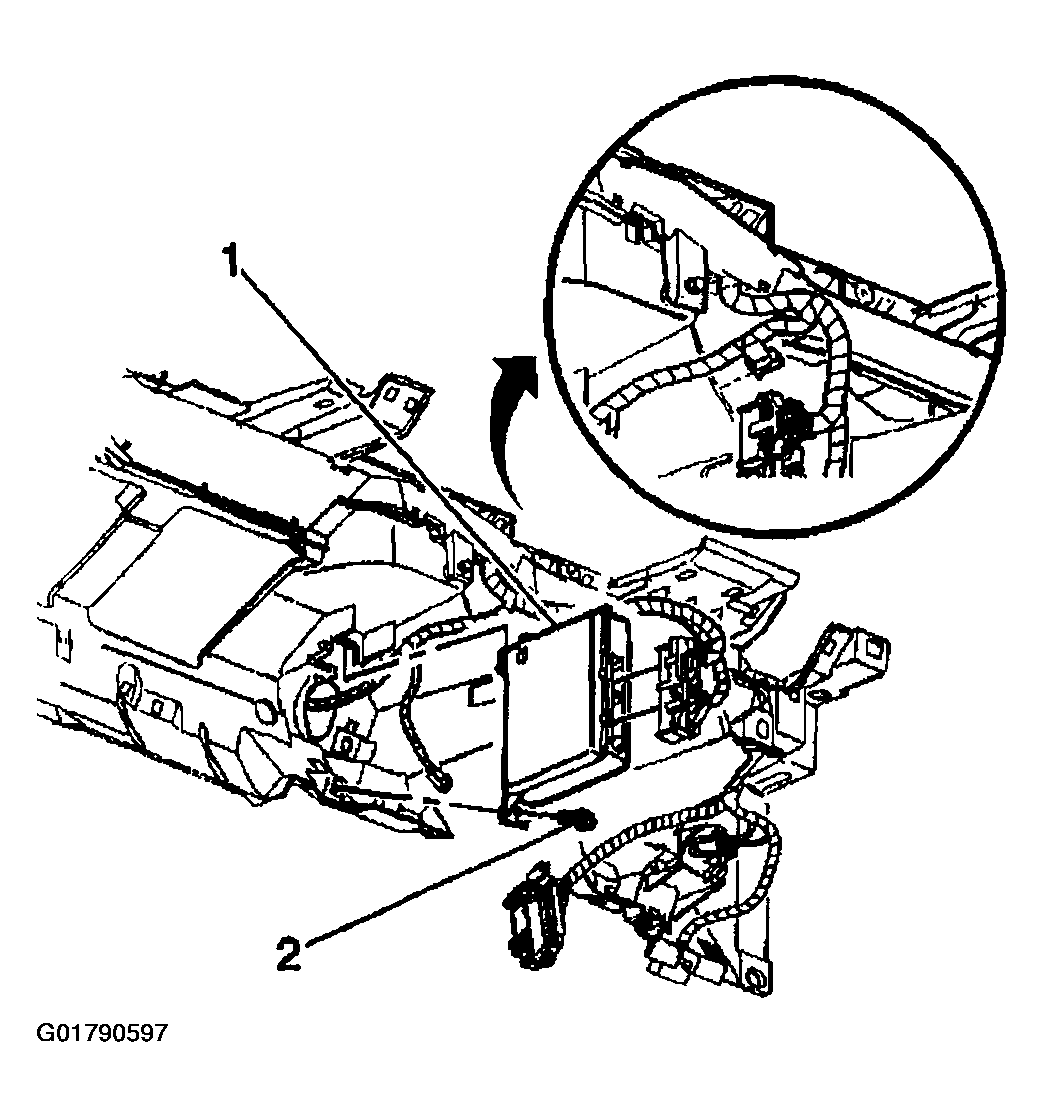

- Remove the fastener (2) from the Instrument Panel Module (IPM).
- Rotate the IPM up and out of the IP retainer.
- Disconnect the electrical connectors from the IPM (1).
