Shift Control Linkage Rod

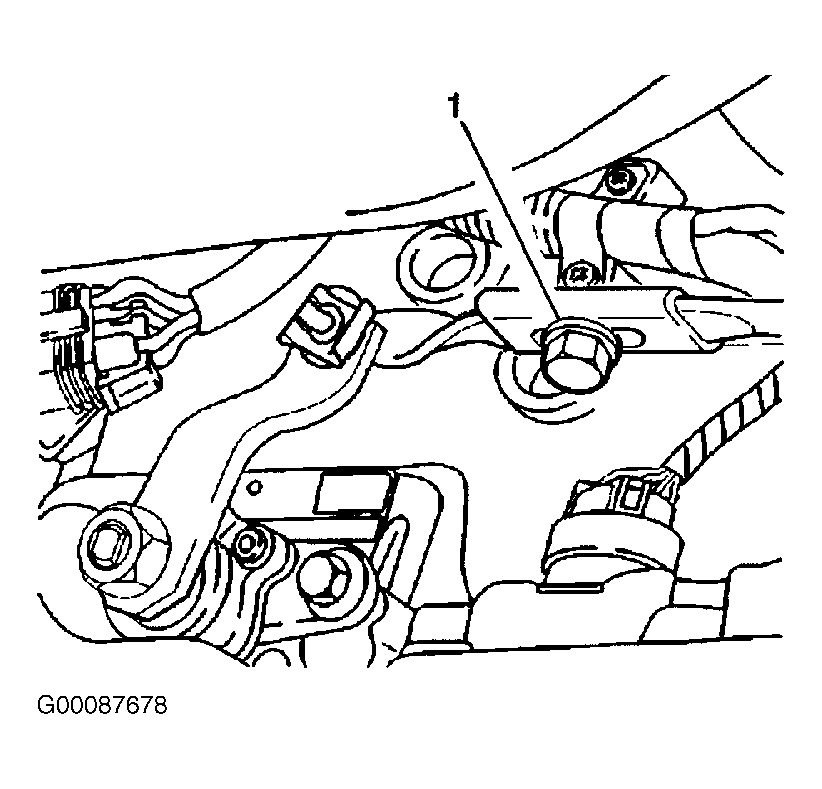

- Position the shift lever in Park. Raise and support the vehicle. Loosen the adjustment bolt (1) to allow the adjuster to slide freely. See Fig 1
.
- Hold the selector lever on transmission against the rear stop to eliminate any play. Tighten the shift control linkage adjustment bolt to specification. See TORQUE SPECIFICATIONS
. Lower the vehicle.
- Inspect the operation of starting system with shift lever in each position. The engine should only crank when the lever is in Park or Neutral position.
Courtesy of GENERAL MOTORS CORP.
