Encoder Motor (NVG 246): Installation

NOTE: When installing the encoder motor, ensure that the encoder motor is indexed correctly and the motor is flat against the transfer case before tightening the bolts. A NEW encoder motor does NOT come with locating pins.
  1. Install the locating pins to the NEW encoder motor.
  2. Position a NEW actuator insulator gasket to the transfer case.
  3. Install the encoder motor.
    NOTE: When tightening encoder motor bolts, start with the bolt by the harness and continue in a clockwise order until finished.

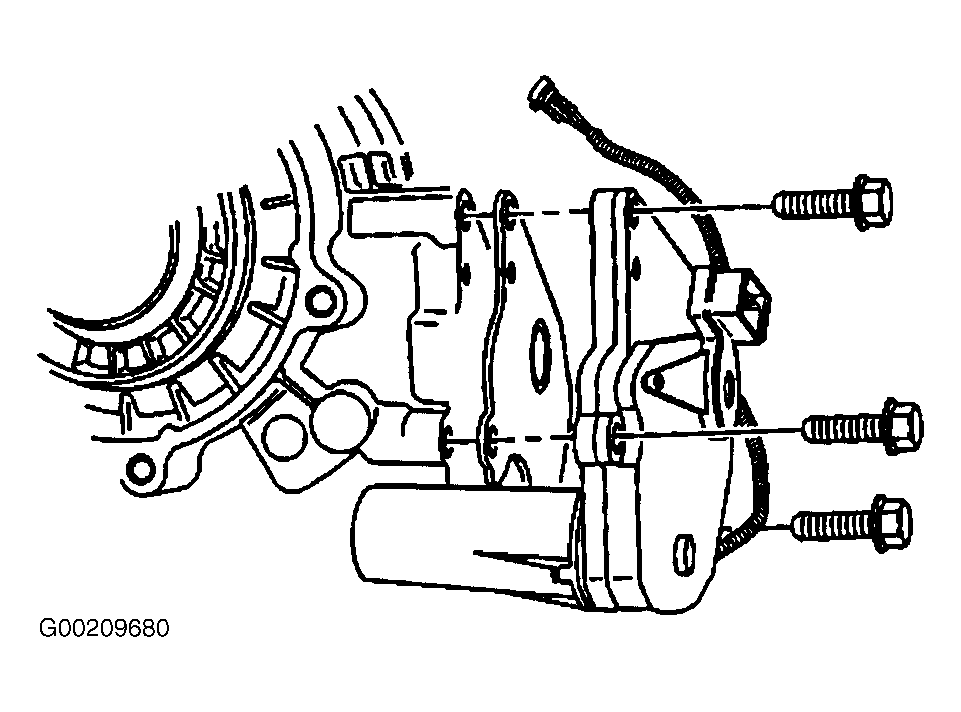

  4. Install encoder motor bolts. See Figure . Tighten bolts to specification. See TORQUE SPECIFICATIONS  .

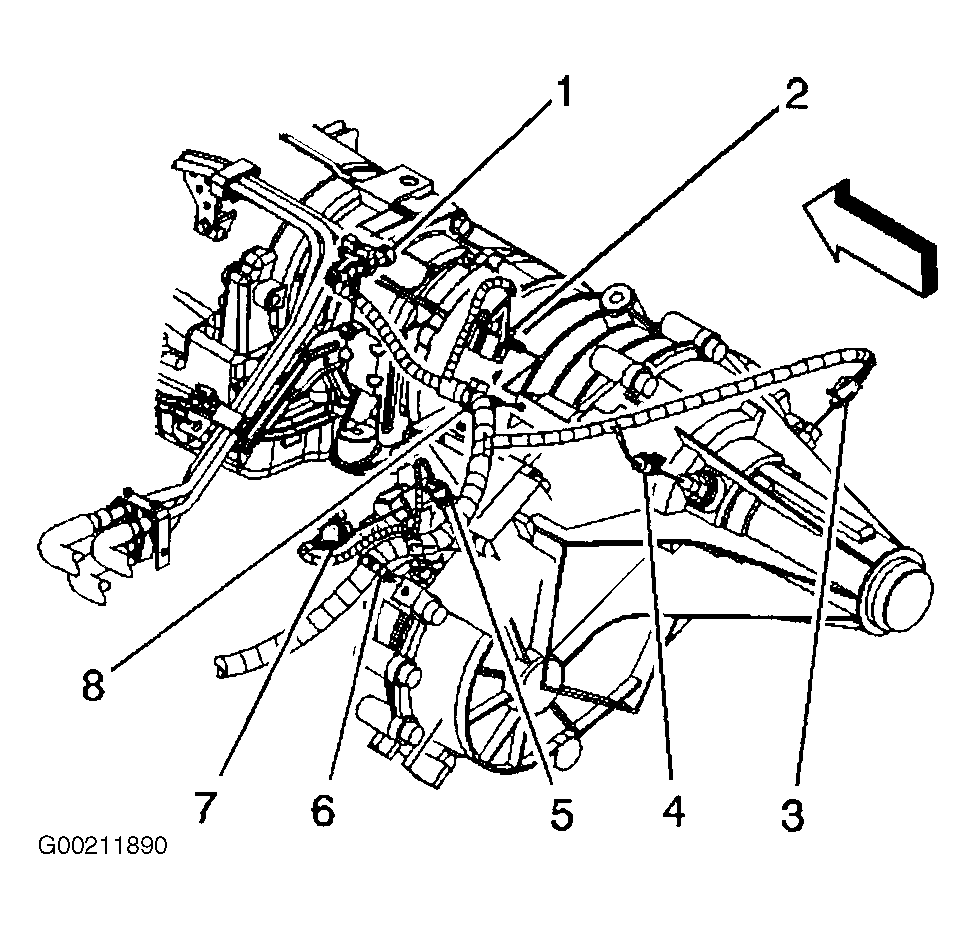

  5. Connect the encoder motor electrical connector (7). See Figure .
  6. Connect the transfer case switch electrical connector (2).
  7. Install the front drive shaft. See appropriate DRIVE SHAFTS & UNIVERSAL JOINTS article in DRIVELINE/AXLES.
  8. Install the transfer case shield, if equipped. See TRANSFER CASE SHIELD  .
  9. Lower vehicle.
