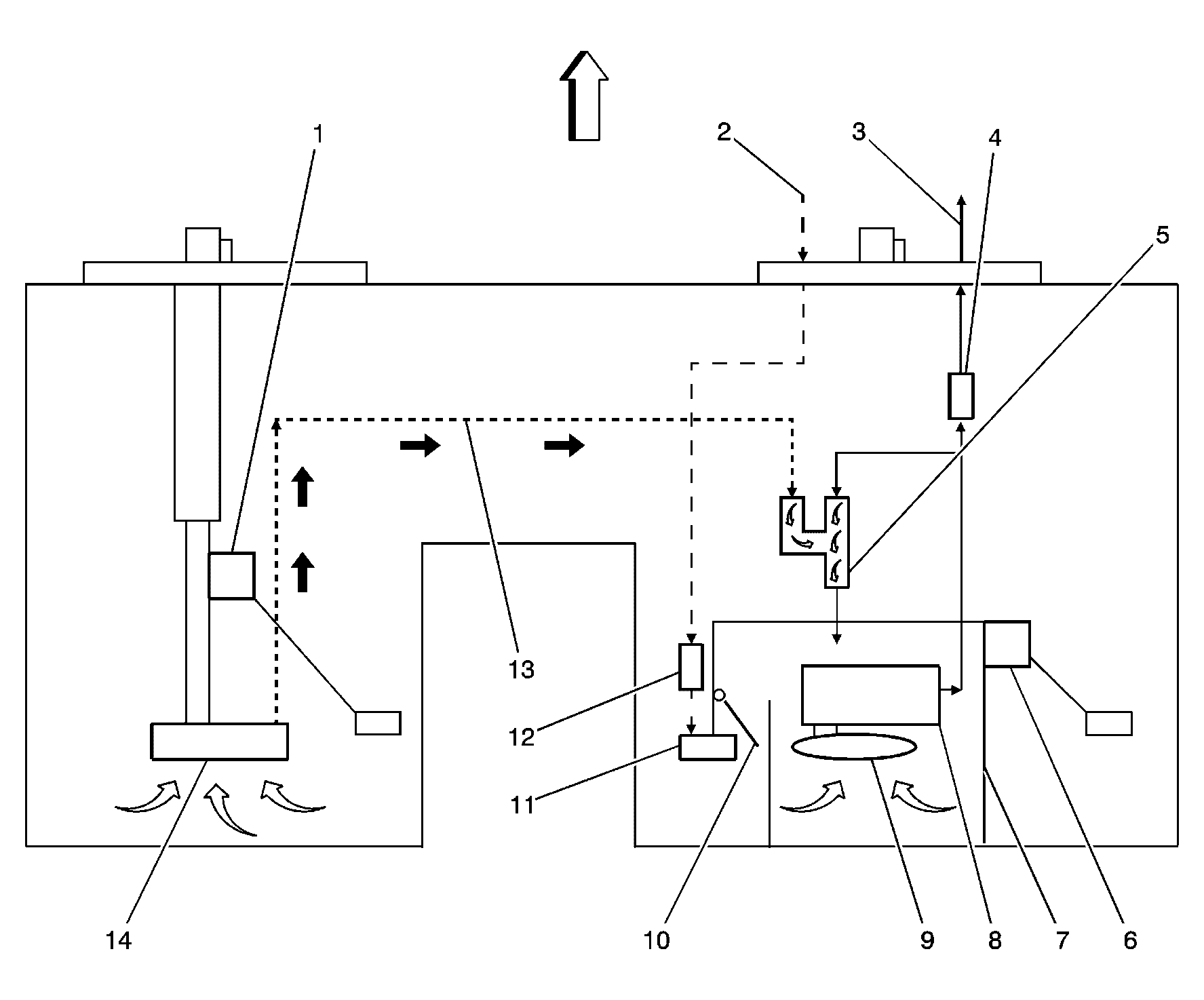

System Overview
| Callout | Component Name |
|---|---|
| 1 | Fuel Level - Left |
| 2 | Fuel Return Pipe from Engine |
| 3 | Fuel Feed Pipe to Engine |
| 4 | 2-Way Check Valve - Fuel Supply |
| 5 | Siphon Jet Pump |
| 6 | Fuel Level - Right |
| 7 | Fuel Reservoir/Bucket |
| 8 | Fuel Pump |
| 9 | Fuel Strainer/Pick up |
| 10 | Check Valve for Reservoir |
| 11 | Return Fuel Jet Pump |
| 12 | 2-Way Check Valve - Return Fuel |
| 13 | Fuel Transfer Line |
| 14 | Fuel Strainer/Pickup |
The fuel tank stores the fuel supply. The electric fuel pump supplies fuel through an in-line fuel filter to the fuel injection system. The fuel pump provides fuel at a higher rate of flow than is needed by the fuel injection system. The fuel pressure regulator maintains the correct fuel pressure to the fuel injection system. A separate pipe (2) returns unused fuel to the fuel tank. The electric fuel pump (10) also supplies fuel to the siphon jet pump. The siphon jet pump (13) is attached to the right fuel tank module (11). The siphon jet pump draws fuel from the left side (4) of the fuel tank though the fuel transfer tube (5) to the right side of the fuel tank. Fuel is then equalized between the right and left sides of the tank.
