Engine Controls Schematics

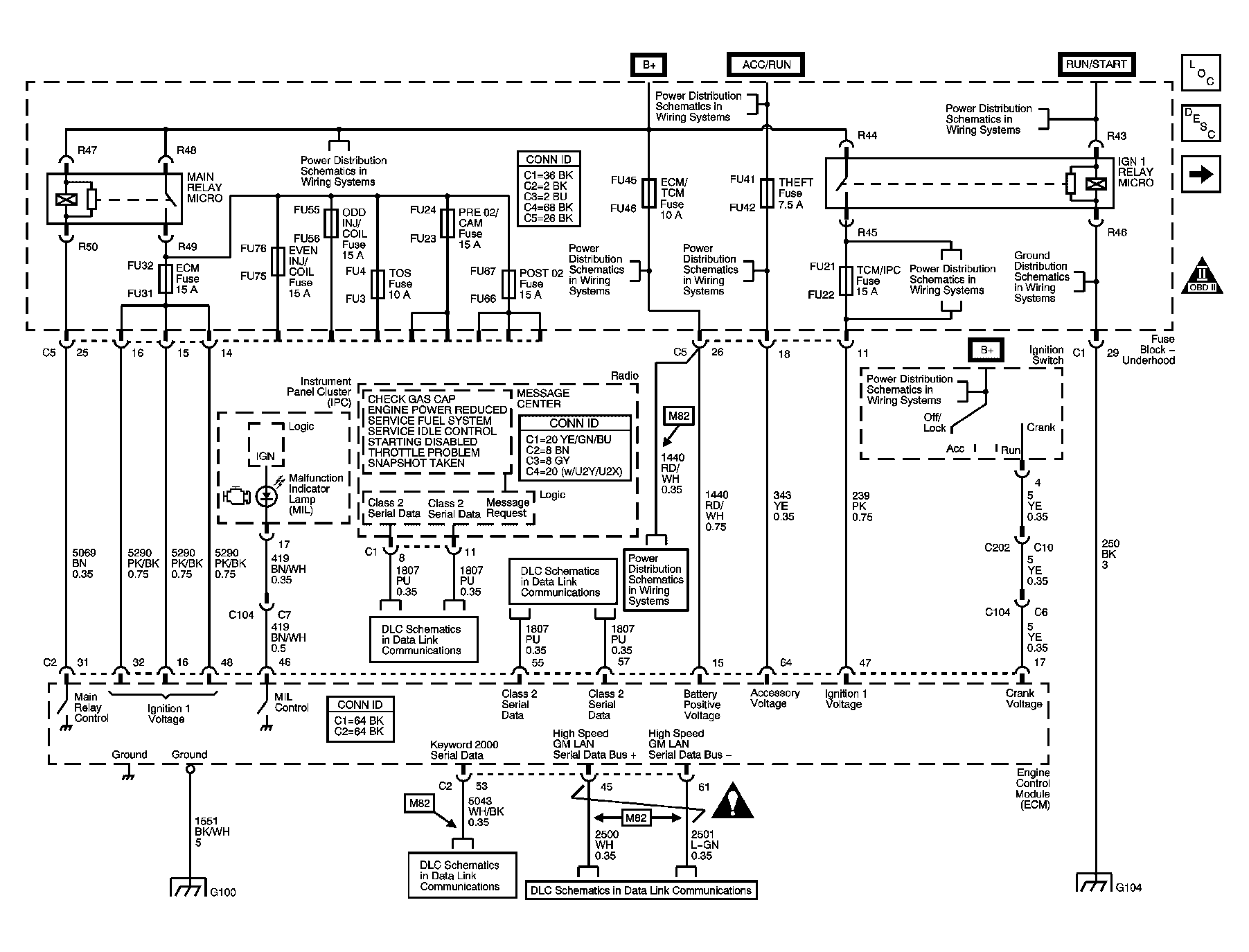

Fig 1: Power, Ground, Serial Data, DIC and Indicator Schematic
GM1310994Courtesy of GENERAL MOTORS CORP.

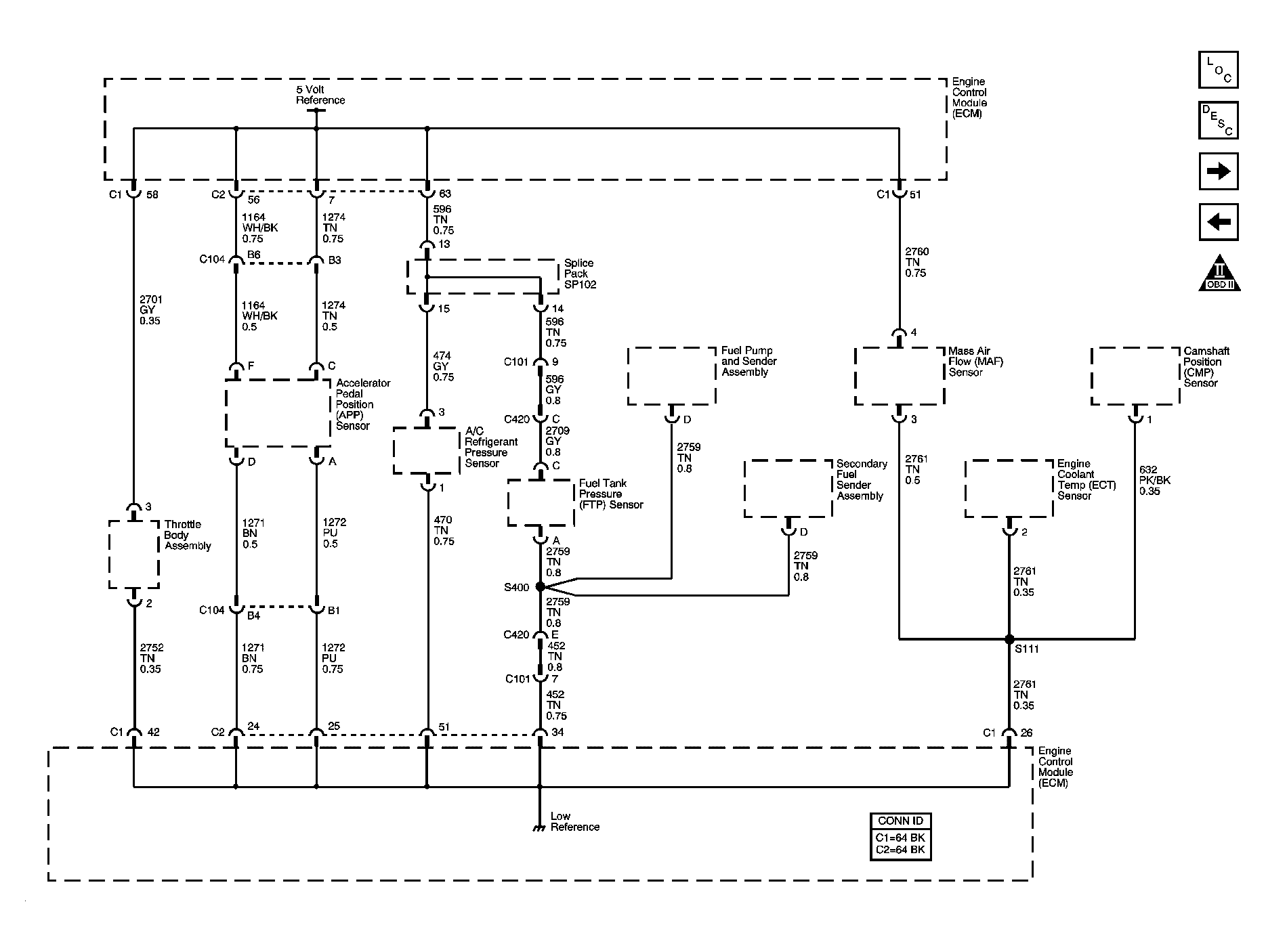

Fig 2: Engine Data Sensors Schematic - 5 Volt and Low Reference Buses
GM1311051Courtesy of GENERAL MOTORS CORP.

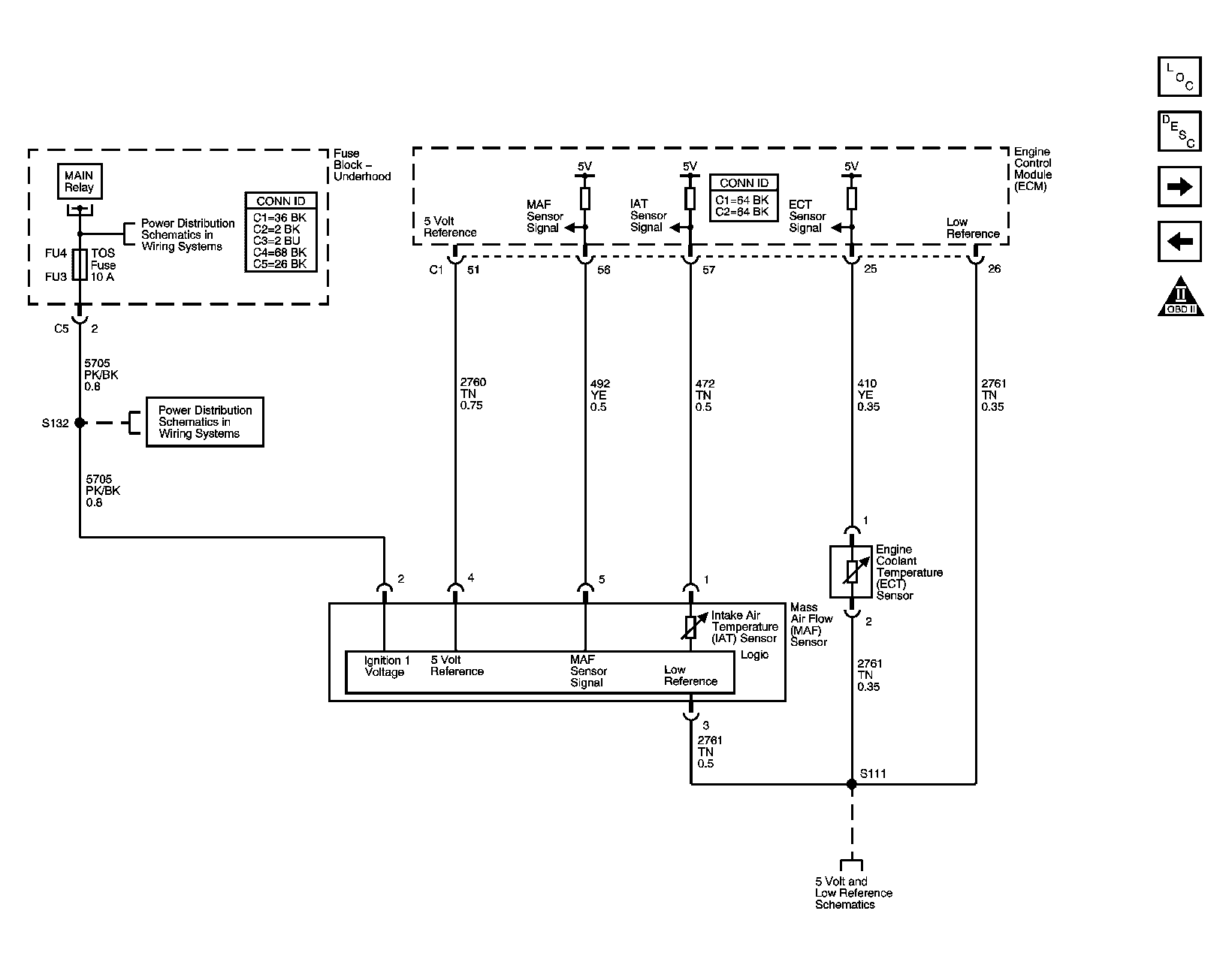

Fig 3: Engine Data Sensors Schematic - ECT, MAF and IAT Sensors
GM1311070Courtesy of GENERAL MOTORS CORP.

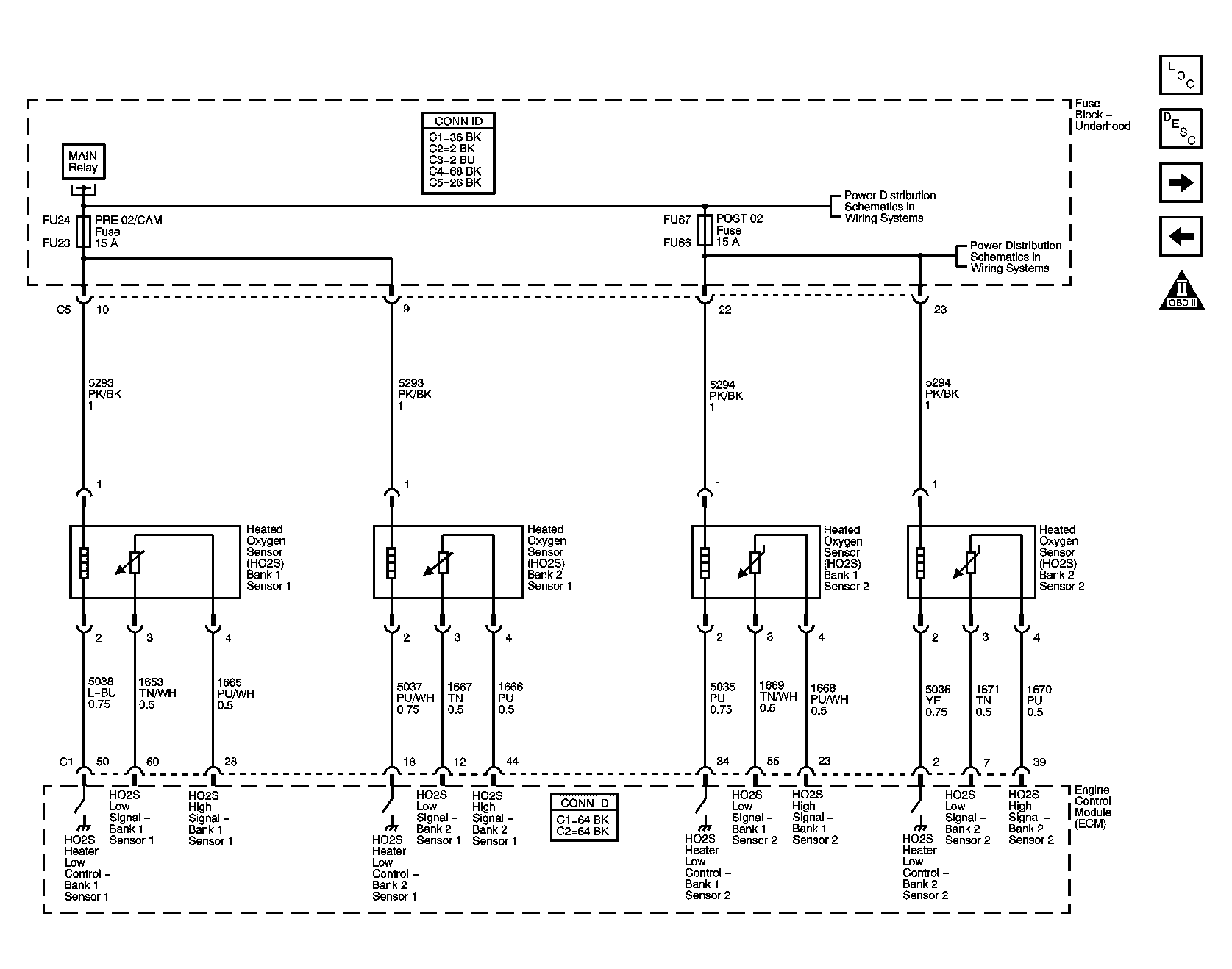

Fig 4: Engine Data Sensors Schematic - Heated Oxygen Sensors (HO2S)
GM1311071Courtesy of GENERAL MOTORS CORP.

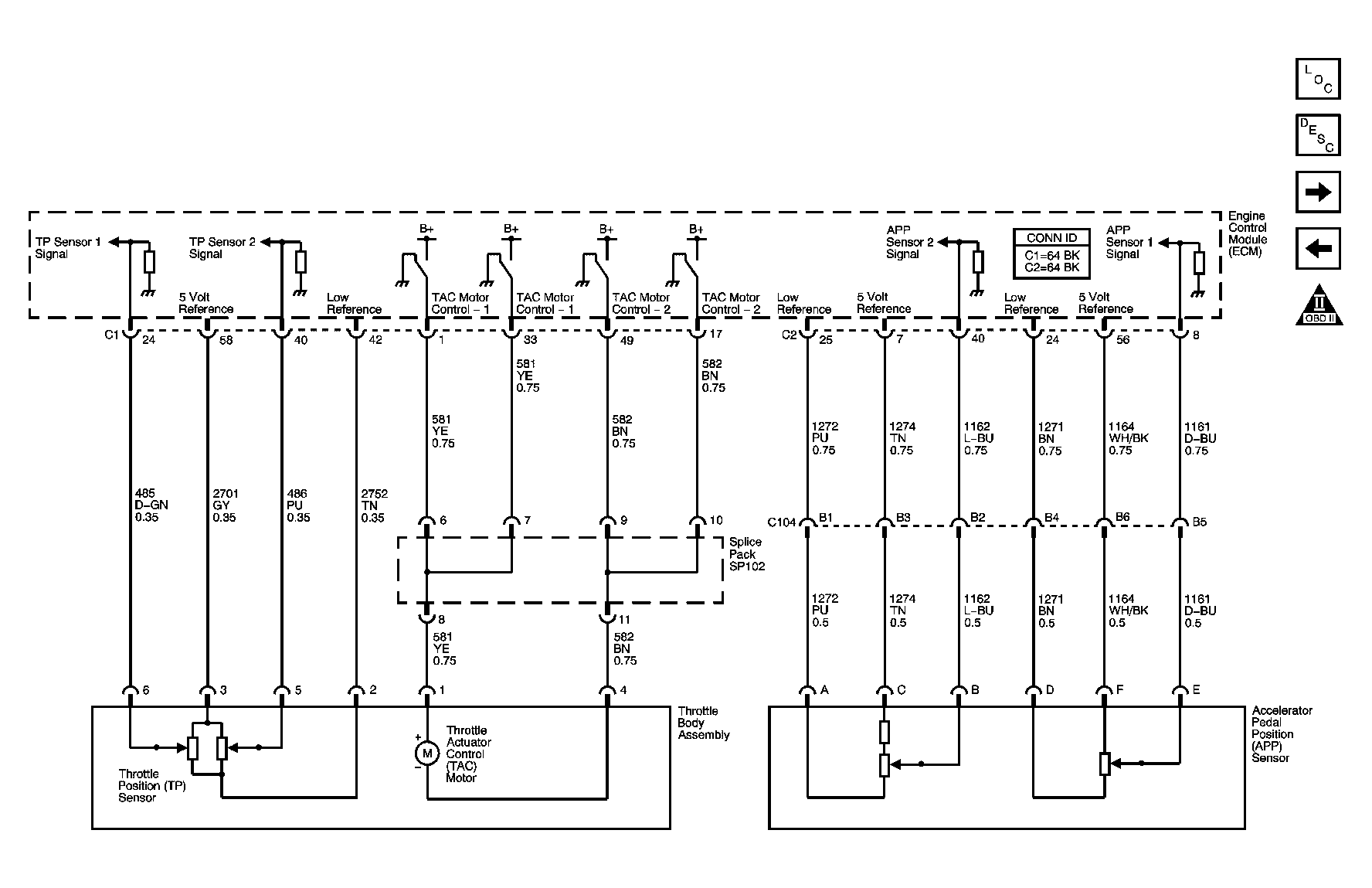

Fig 5: Engine Data Sensors Schematic - Throttle Actuator Control (TAC) System
GM1311072Courtesy of GENERAL MOTORS CORP.

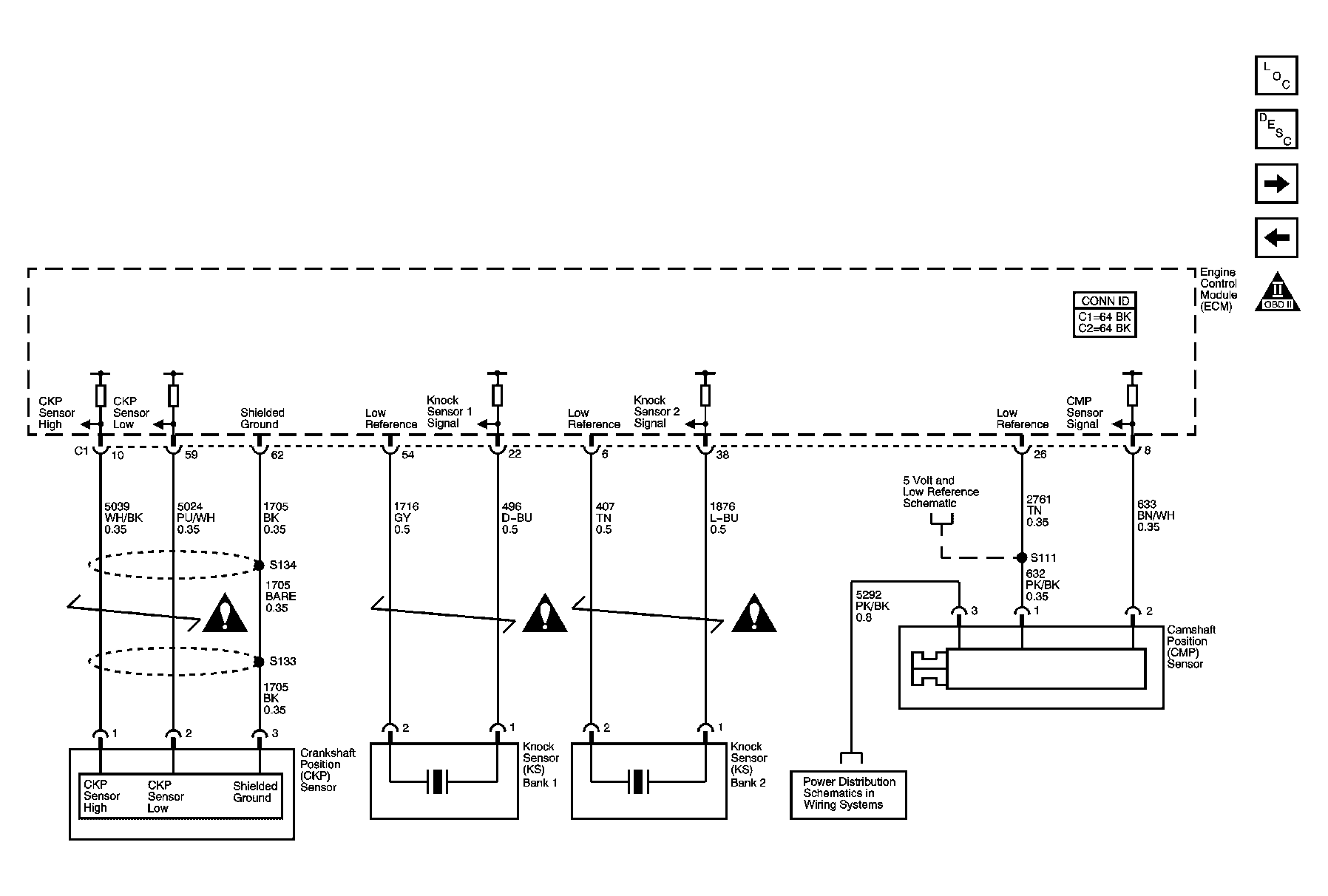

Fig 6: Ignition Controls Schematic - Knock, CKP and CMP Sensors
GM1311073Courtesy of GENERAL MOTORS CORP.

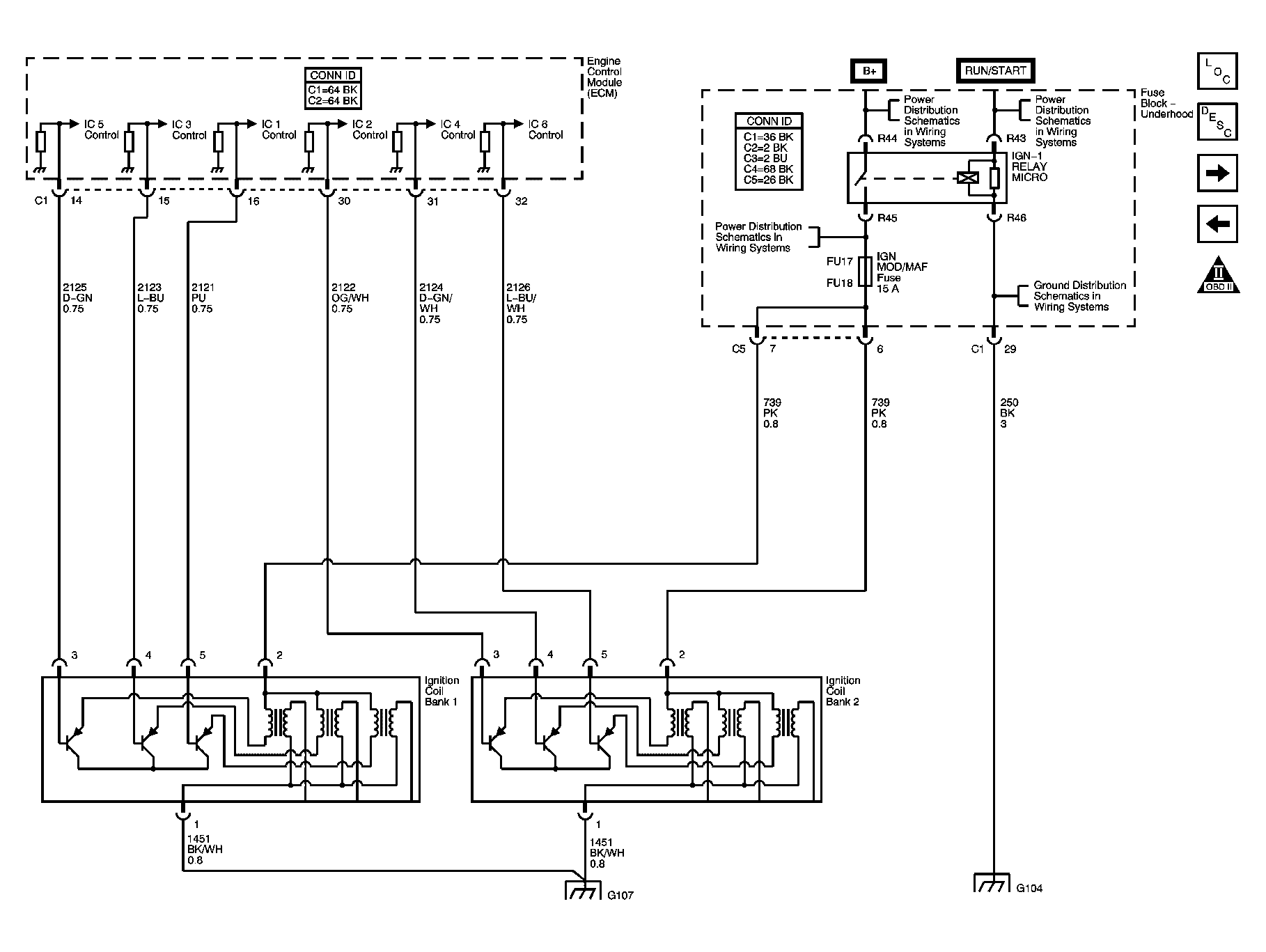

Fig 7: Ignition Controls Schematic - Ignition Coils
GM1311074Courtesy of GENERAL MOTORS CORP.

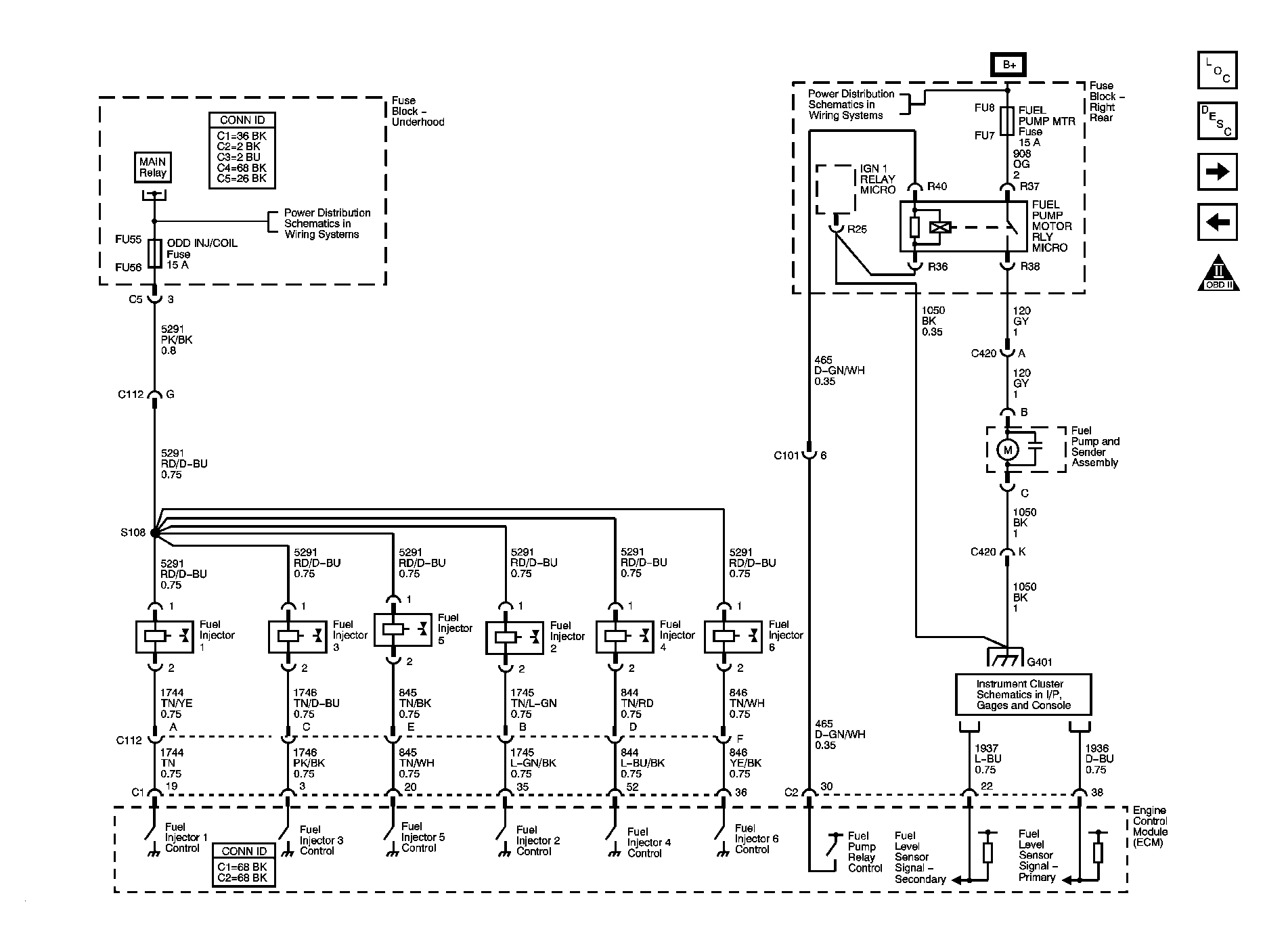

Fig 8: Fuel Controls - Fuel Injectors and Fuel Pump and Sender Assembly Schematic
GM1311077Courtesy of GENERAL MOTORS CORP.

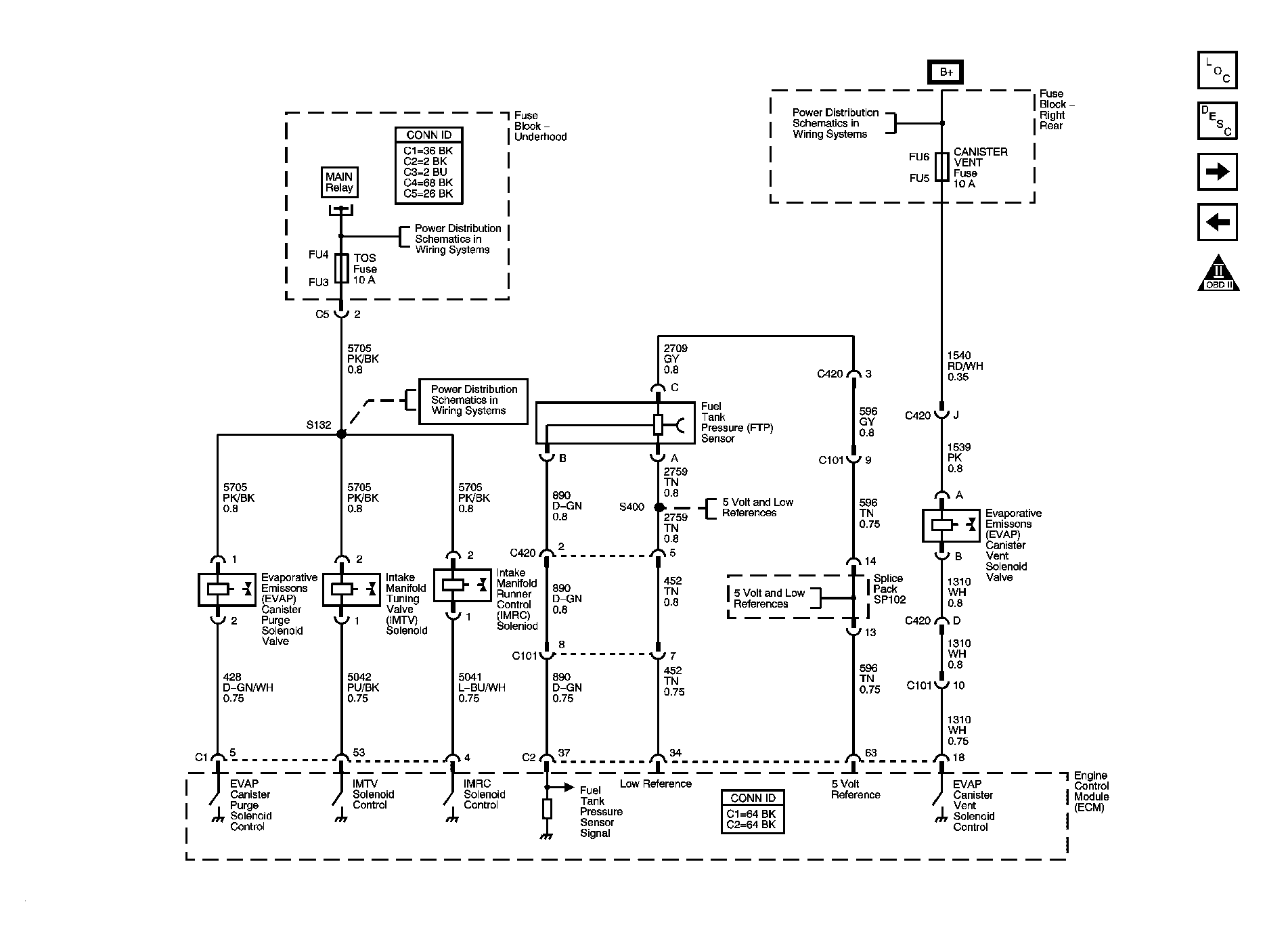

Fig 9: Fuel Controls - EVAP Controls, IMTV and IMRC Solenoids Schematic
GM1311127Courtesy of GENERAL MOTORS CORP.

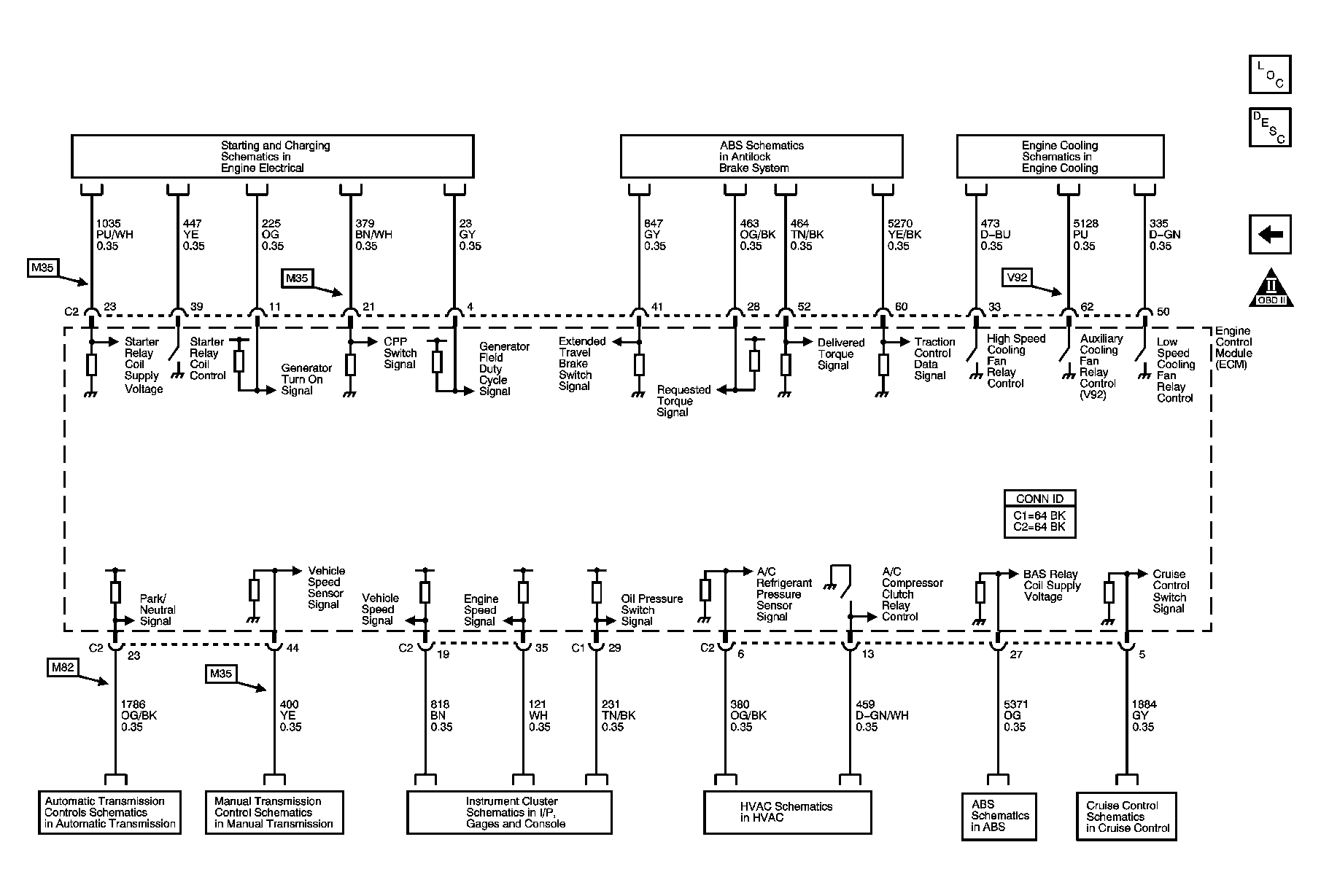

Fig 10: Controlled/Monitored Subsystem References Schematic
GM1311141Courtesy of GENERAL MOTORS CORP.
