Final Drive Assembly: Installation
WARNING: This page is about a different car, the 2003 Cadillac Seville and 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

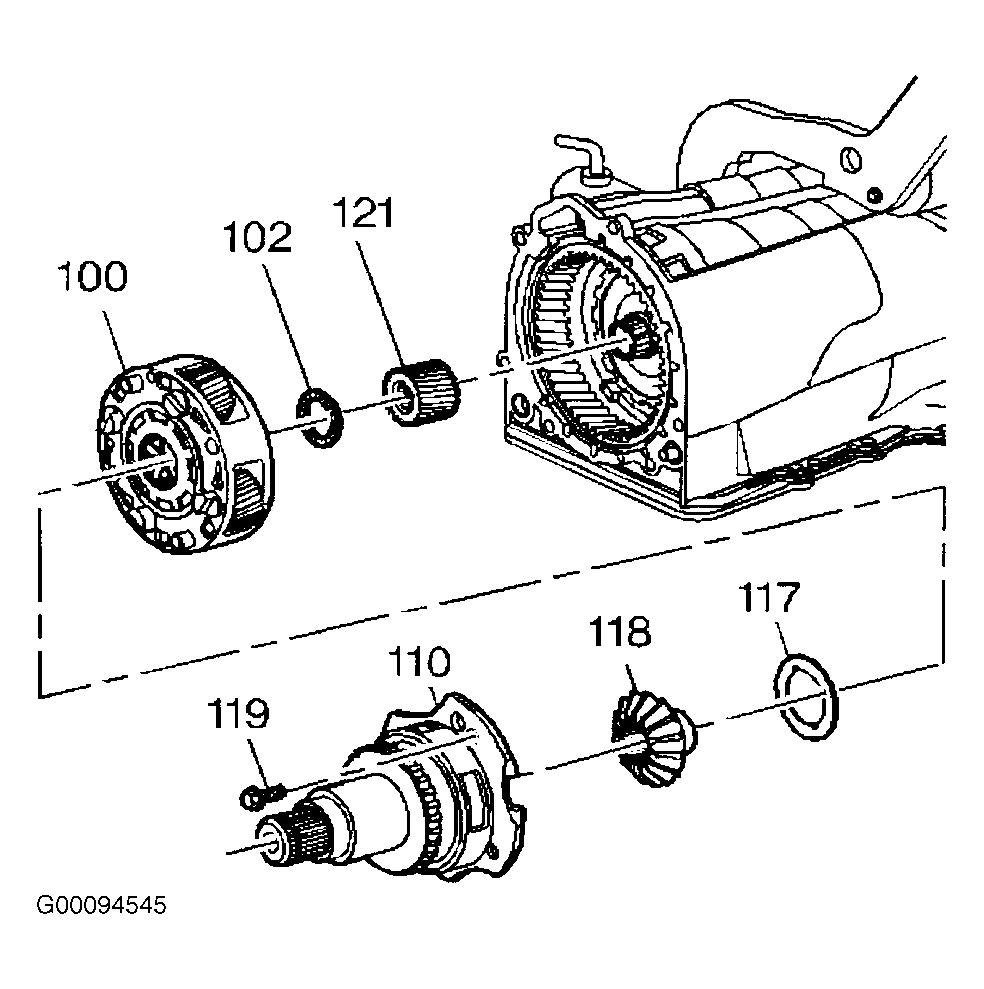

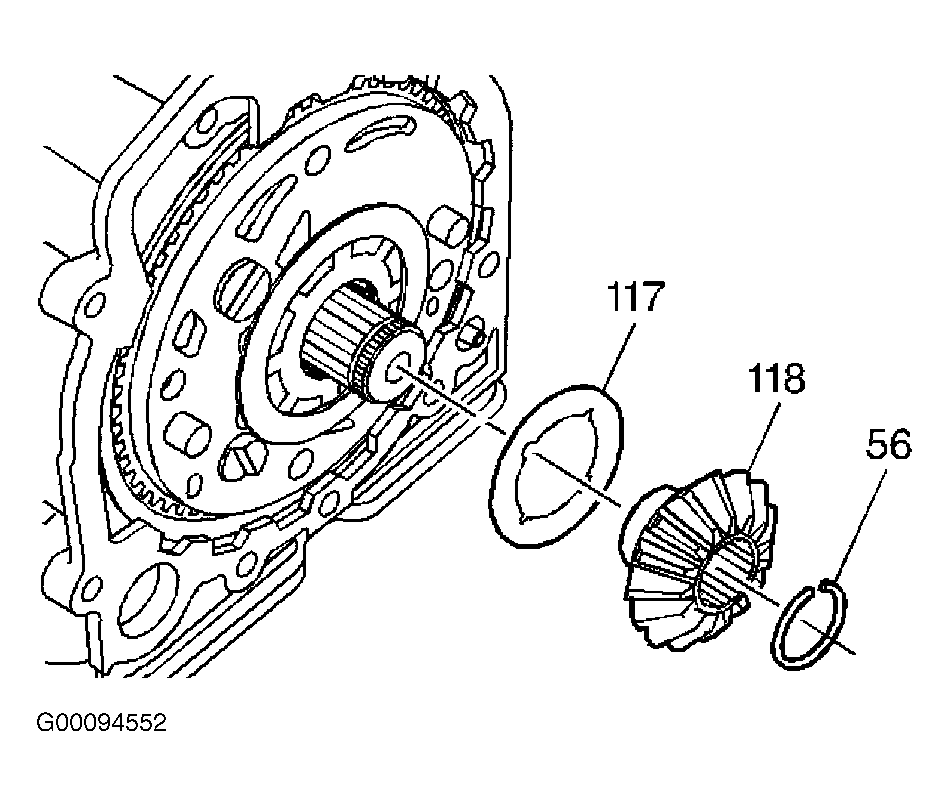

Install the sun gear (121) with the bushing and the seal side facing differential. See Figure . Install the final drive carrier (100). Turn the unit until it meshes with the sun gear and the internal gear teeth. Install the left thrush washer (117). See Fig 1 . Install the left differential side gear (118). Install the snap ring (56). Use the manual shaft to place the transaxle in Park. This will lock up the final drive unit. The actuator rod will move up. Install differential carrier. See DIFFERENTIAL CARRIER .
