Vehicle Speed Sensor: Installation
WARNING: This page is about a different car, the 2003 Cadillac Seville and 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

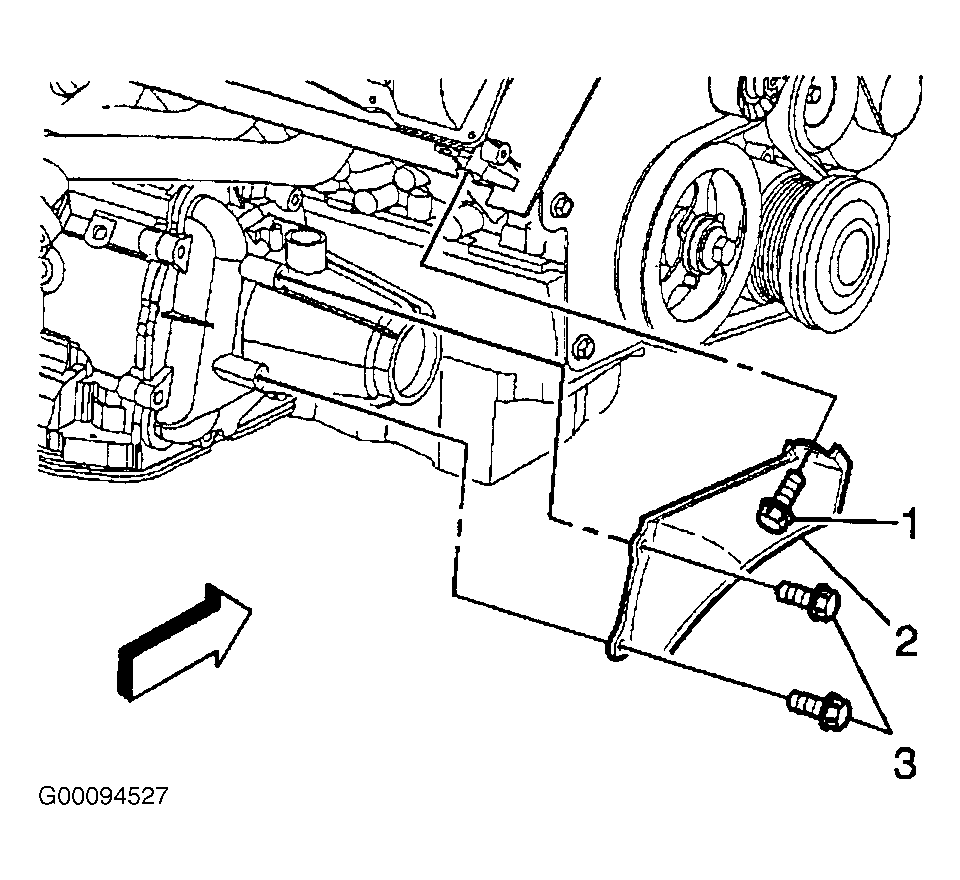

Install the vehicle speed sensor (130) and the retaining bolt (131). See Figure . Install a new O-ring seal on sensor if necessary. Tighten the bolt to specification. See TORQUE SPECIFICATIONS . Install the electrical connector at the sensor. Install the bolts (1 and 3) securing the front transaxle brace (2) to the transaxle and right cylinder head. See Figure . Lower the vehicle.
