Lighting Switches and Flasher Module

Lighting Switches And Flasher Module:

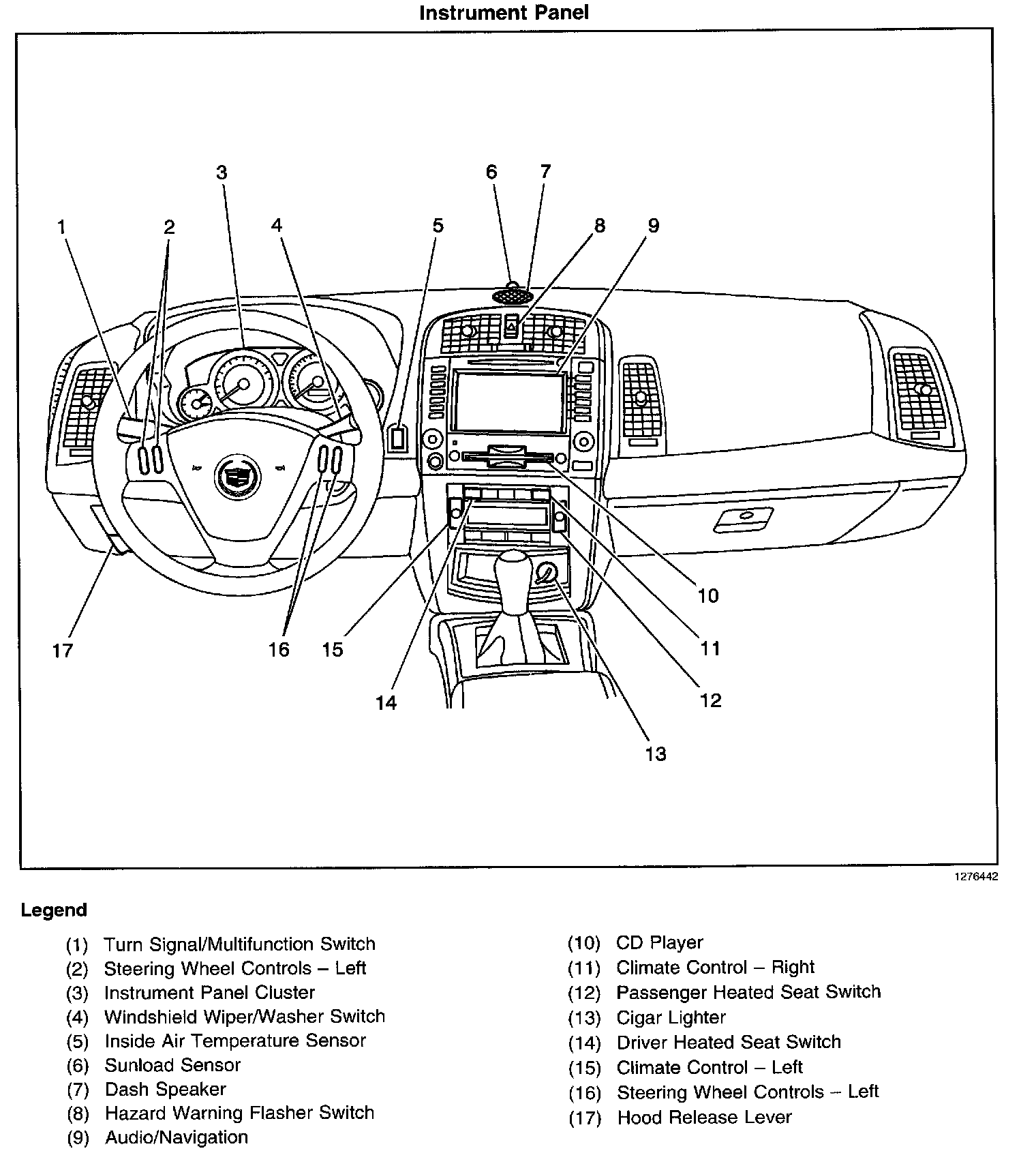

Instrument Panel:

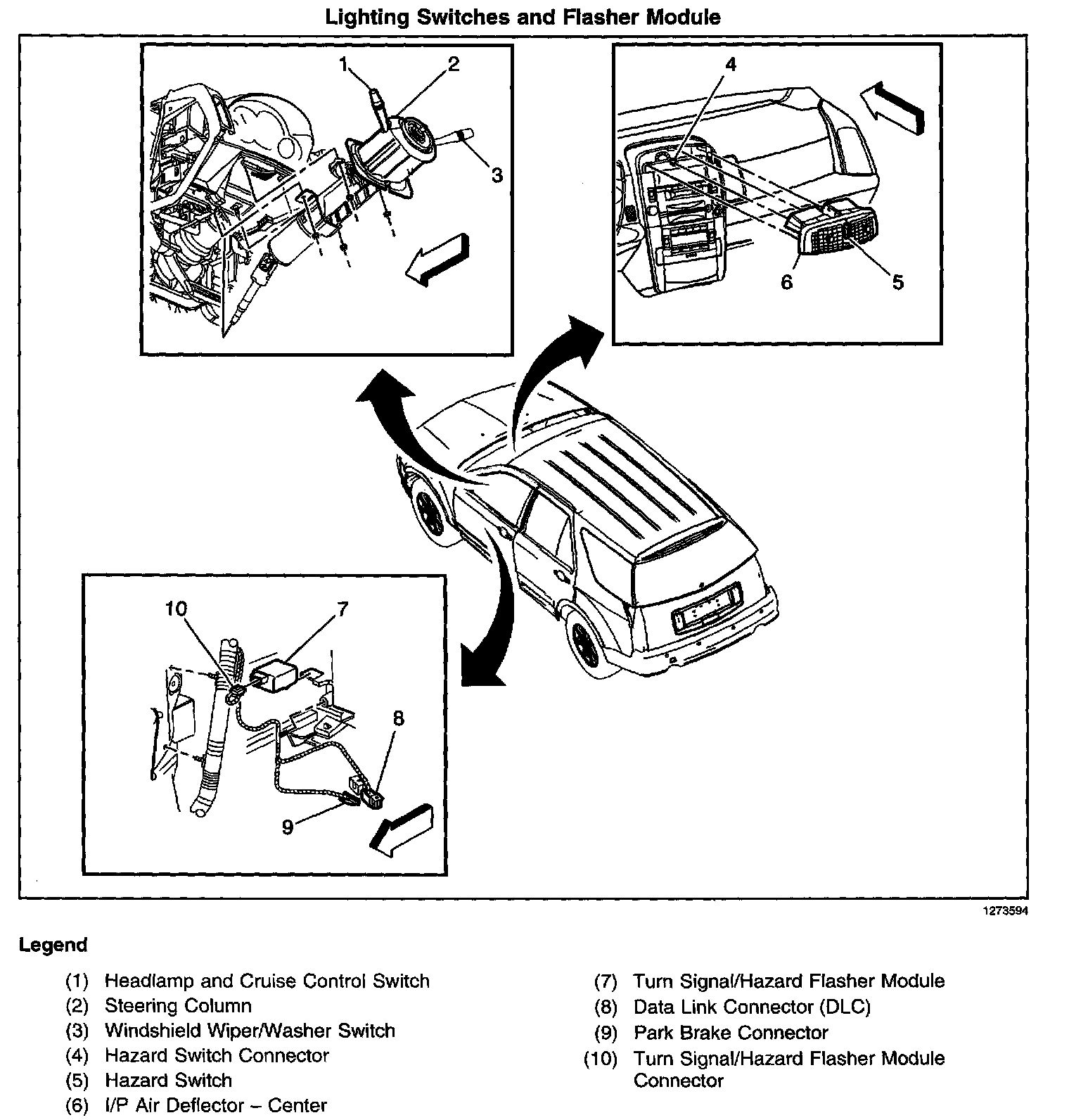

Lighting Switches And Flasher Module:



Harness Routing Views (I/P Harness):
