Tire Pressure Monitoring System Component Views

WARNING: This page is about a different car, the 2006 GMC Sierra, 2006 GMC Cab & Chassis Sierra, 2006 Chevrolet Silverado, and 2006 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

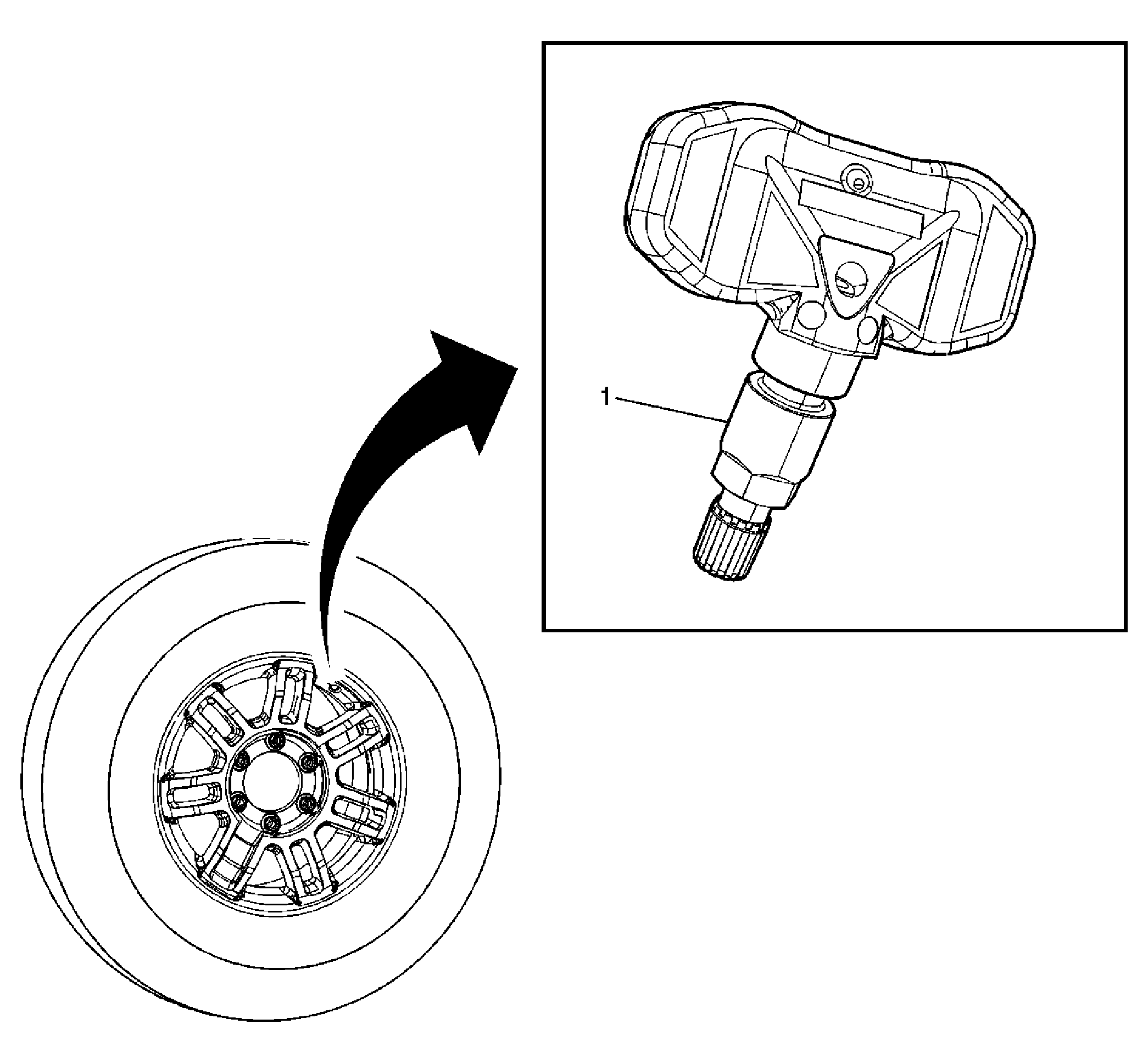

Fig 1: Tire Pressure Monitor Sensors
GM1575964Courtesy of GENERAL MOTORS CORP.
Callouts For Fig 1

Callout Component Name
1 Tire Pressure Monitor Sensor
