Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: The metal bushing inserts need to be installed with the flat side underneath the module bolts.

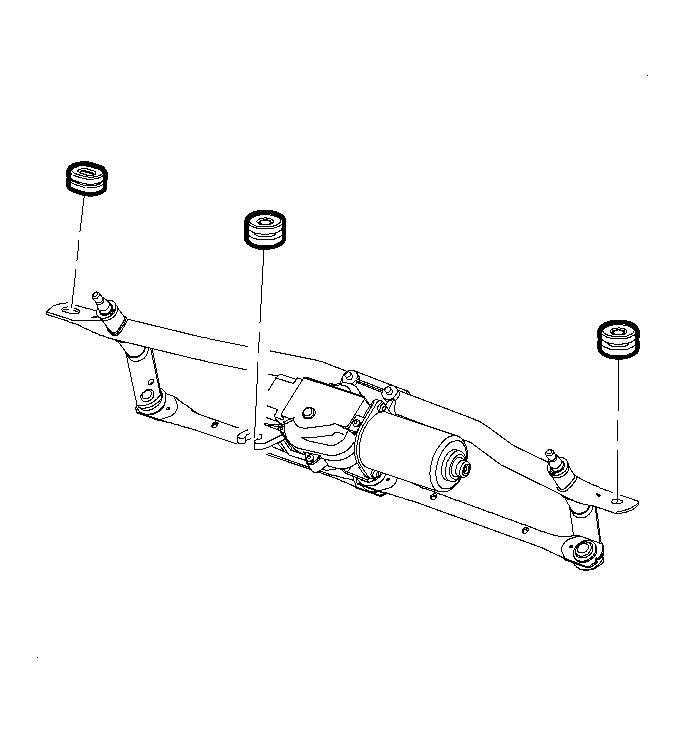

    Fig 1: Removing/Installing Front Wiper Motor
    GM929441Courtesy of GENERAL MOTORS CORP.
  1. Install the grommets and the bushings to the module.
  2. Install the front wiper motor. Refer to Wiper Motor Module Replacement .
