Radio Front Side Door Speaker Replacement

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

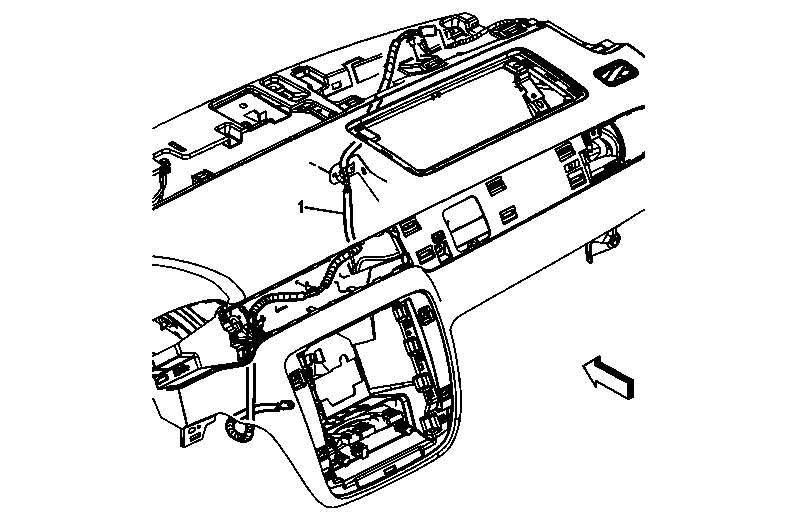

Fig 1: View Of Radio Antenna Extension Cable Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel upper trim pad. Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (with RPO SLT) or Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (without RPO SLT) . Remove the radio. Refer to Radio Replacement (With RPO SLT) or Radio Replacement (Without RPO SLT) . Remove the instrument panel center trim panel. Refer to Instrument Panel Center Trim Panel Replacement (with RPO SLT) .
1	Radio Antenna Extension Cable Assembly Tip: Disconnect the extension cable from the antenna. Disconnect the extension cable from the radio. Disconnect the extension cable from the center HVAC duct.

Callout

Component Name

Preliminary Procedure

Remove the instrument panel upper trim pad. Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (with RPO SLT) or Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (without RPO SLT) .
Remove the radio. Refer to Radio Replacement (With RPO SLT) or Radio Replacement (Without RPO SLT) .
Remove the instrument panel center trim panel. Refer to Instrument Panel Center Trim Panel Replacement (with RPO SLT) .

Radio Antenna Extension Cable Assembly
Tip:

Disconnect the extension cable from the antenna.
Disconnect the extension cable from the radio.
Disconnect the extension cable from the center HVAC duct.
