Pickup Box Endgate Latch Rod Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

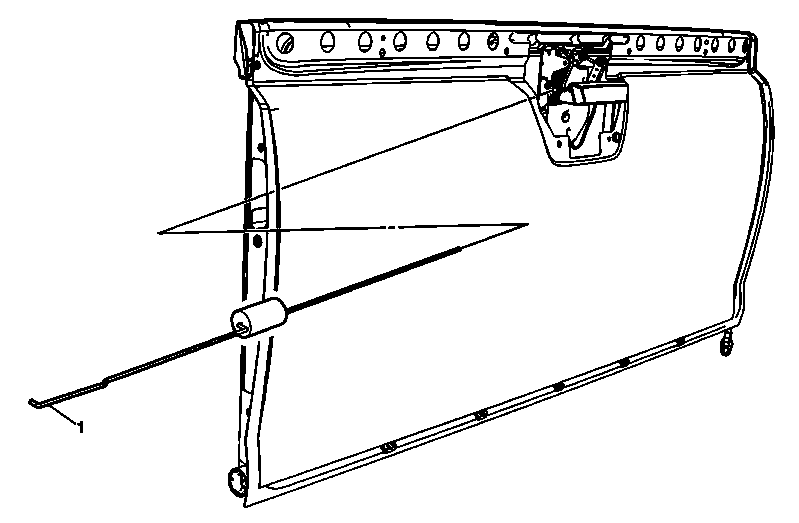

Fig 1: Endgate Latch Rod

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the endgate spoiler. Refer to Rear Spoiler Replacement (Avalanche/Escalade) . Remove the endgate latch. Refer to Endgate Latch Replacement .
1	Endgate Latch Rod Assembly TIP: Disconnect the actuator rod.

Callout

Component Name

Preliminary Procedures

Remove the endgate spoiler. Refer to Rear Spoiler Replacement (Avalanche/Escalade) .
Remove the endgate latch. Refer to Endgate Latch Replacement .

Endgate Latch Rod Assembly
TIP: Disconnect the actuator rod.
