LCD Unit Removal/Installation: Notes
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)

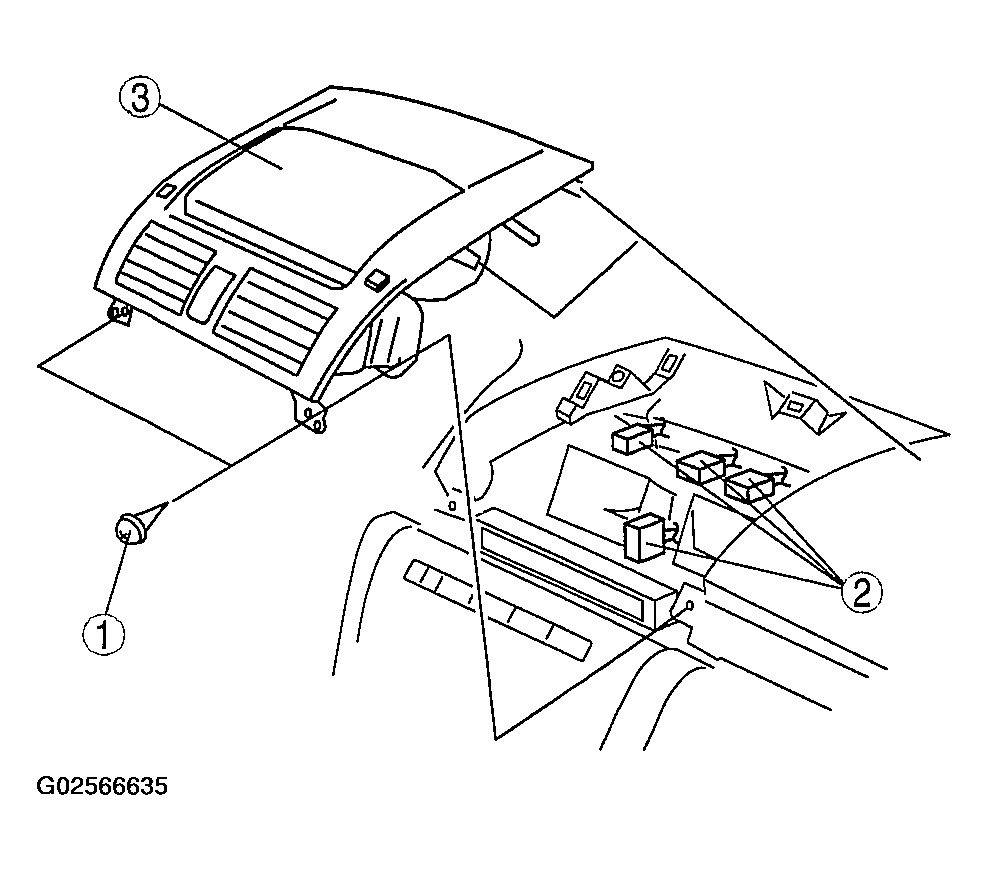

- Remove in the order indicated in the table.REMOVAL ORDER OF LCD UNIT
1 Screw 2 Connector 3 LCD unit (See LCD Unit Removal Note .) - Install in the reverse order of removal.
