Front of Instrument Panel Components
WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

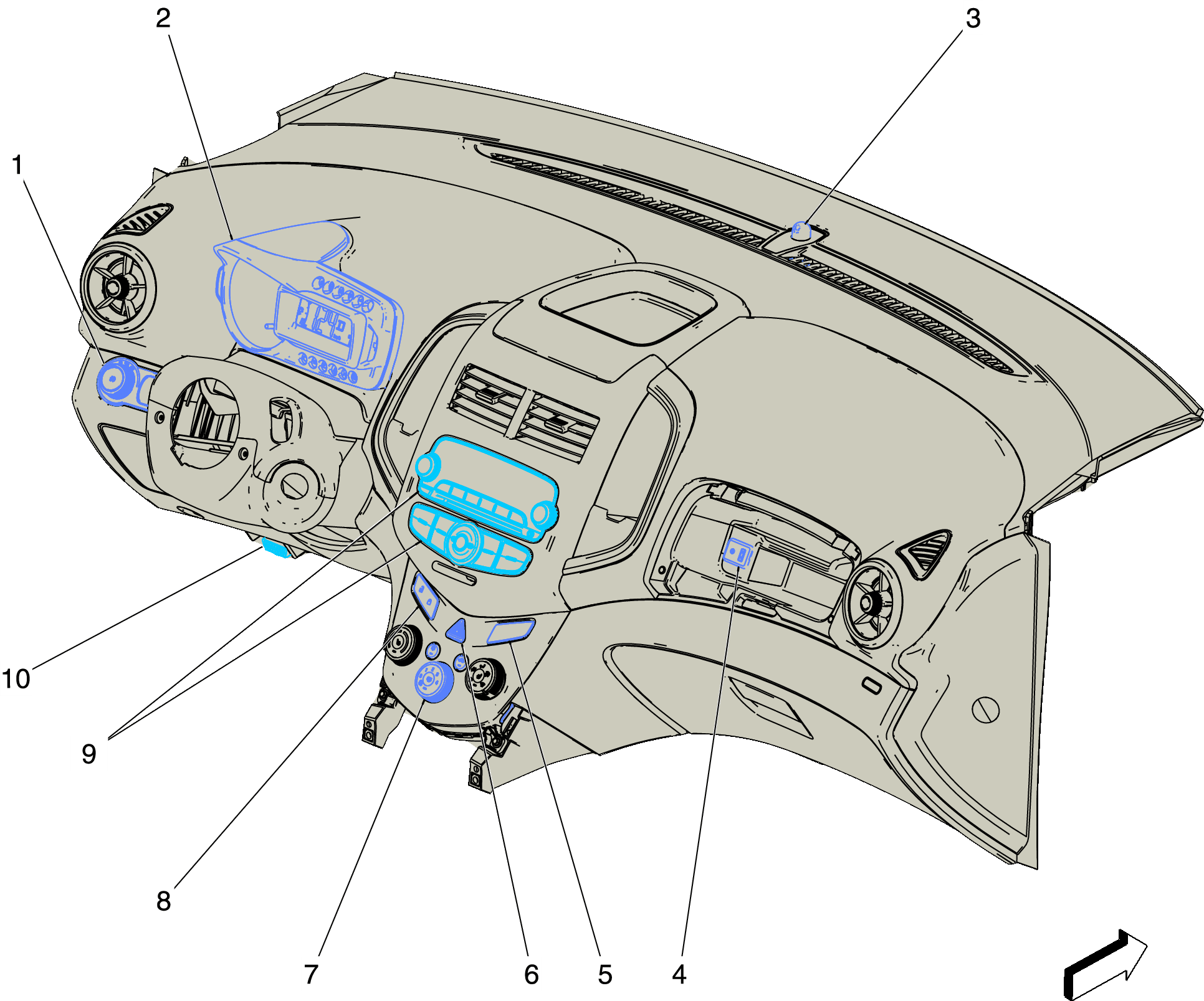

Front of Instrument Panel Components
| Items |
|---|
| 1. S30 Headlamp Switch S30 Headlamp Switch |
| 2. P16 Instrument Cluster P16 Instrument Cluster |
| 3. B10 Ambient Light Sensor B10 Ambient Light Sensor |
| 4. X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 (IOR)X83 Auxiliary Audio Input X2 (IOR) |
| 5. P14 Passenger Air Bag Disabled Indicator P14 Passenger Air Bag Disabled Indicator |
| 6. S26 Hazard Warning Switch S26 Hazard Warning Switch |
| 7. K33 HVAC Control Module K33 HVAC Control Module X1K33 HVAC Control Module X2K33 HVAC Control Module X3 |
| 8. S13D Door Lock Switch - Driver S13D Door Lock Switch - Driver |
| 9. A11 Radio A11 Radio X1 (IOR)A11 Radio X2 (IOR)A11 Radio X4 (IOR)A11 Radio X5 (IOR)A11 Radio X8 (IOR) |
| 10. X84 Data Link Connector X84 Data Link Connector |
