Steering Column Lower Trim Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

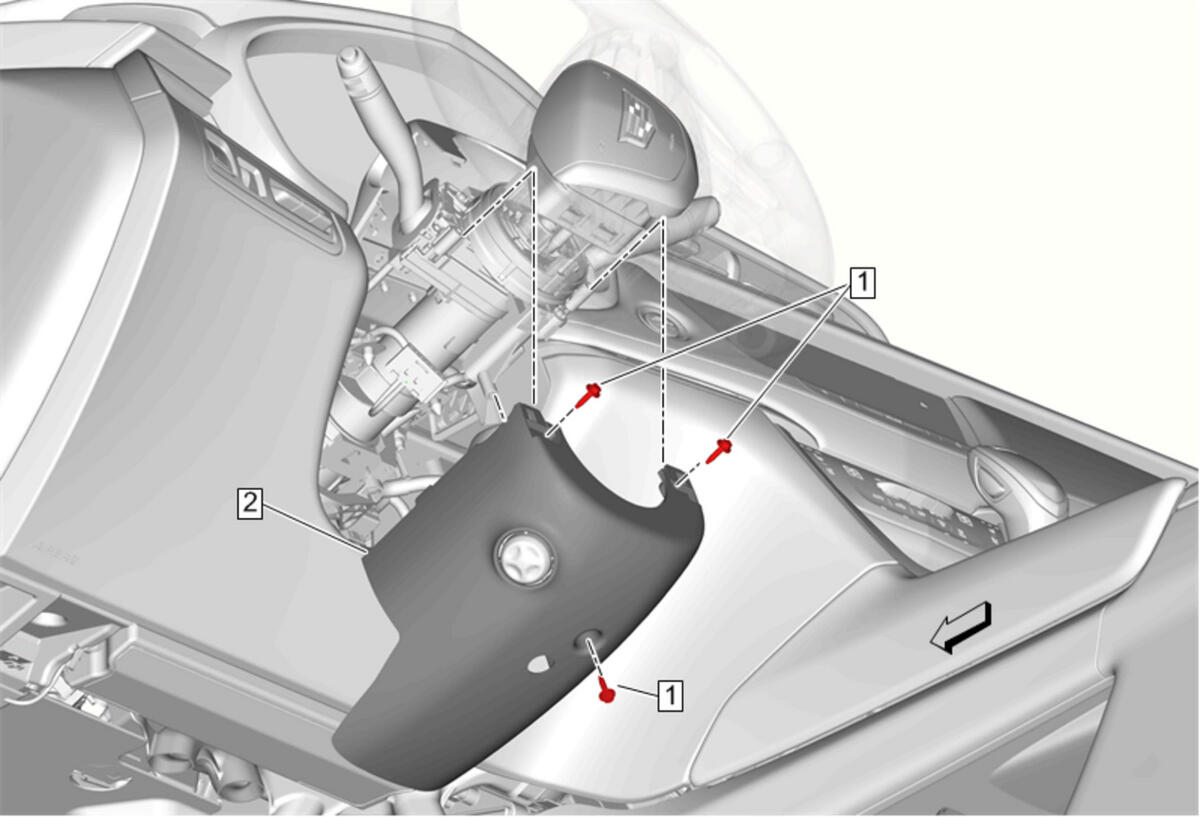

Callout	Component Name
Preliminary Procedure Reposition the steering column upper trim cover. Steering Column Upper Trim Cover Replacement
1	Steering Column Lower Trim Cover Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Steering Column Lower Trim Cover Procedure Extended the steering column to its furthest point to clear the instrument panel knee bolster. Turn the steering wheel left and right to access the fasteners securing the lower trim cover to the turn signal switch bracket. Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Reposition the steering column upper trim cover. Steering Column Upper Trim Cover Replacement

Steering Column Lower Trim Cover Bolt [3x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Steering Column Lower Trim Cover

Procedure

Extended the steering column to its furthest point to clear the instrument panel knee bolster.
Turn the steering wheel left and right to access the fasteners securing the lower trim cover to the turn signal switch bracket.
Disconnect the electrical connector.
Transfer components as necessary.
