Steering Column Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Steering Column Lower Trim Cover Replacement Instrument Panel Carrier Support Bracket Replacement - Driver Side CAUTION: With wheels of the vehicle facing straight ahead, secure the steering wheel utilizing steering column anti-rotation pin, steering column lock, or a strap to prevent rotation. Locking of the steering column will prevent damage and a possible malfunction of the SIR system. The steering wheel must be secured in position before disconnecting the following components: The steering column The steering shaft coupling The intermediate shaft(s) After disconnecting these components, do not rotate the steering wheel or move the front tires and wheels. Failure to follow this procedure may cause the SIR coil assembly to become un-centered and cause possible damage to the SIR coil. If you think the SIR coil has became un-centered, refer to your specific SIR coil's centering procedure to re-center SIR Coil. Place match marks on the steering column shaft and the intermediate steering shaft to aid in installation. Intermediate Steering Shaft @ Steering Column - Separate - Intermediate Steering Shaft Replacement Disconnect the steering column electrical connectors as necessary.
1	Steering Column Nut [4x] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Steering Column CAUTION: Once the steering column is removed from the vehicle, the column is extremely susceptible to damage. Dropping the column assembly on the end could collapse the steering shaft or loosen the plastic injections, which maintain column rigidity. Leaning on the column assembly could cause the jacket to bend or deform. Any of the above damage could impair the columns collapsible design. Do NOT hammer on the end of the shaft, because hammering could loosen the plastic injections, which maintain column rigidity. If you need to remove the steering wheel, refer to the Steering Wheel Replacement procedure in this section. Procedure If replacing the steering column, copy the match marks from the OLD steering column to the NEW steering column. Transfer components as necessary. After installation and before the steering column upper and lower trim covers are installed, relearn the soft and hard stops. Steering Column Tilt Wheel and Telescope Control Module Learn Center the steering angle sensor. Steering Angle Sensor Replacement NOTE: In order to relearn the steering column soft and hard stops, the steering column must be mounted and fastened and the steering column upper and lower trim covers cannot be installed.

Callout

Component Name

Preliminary Procedures

Steering Column Lower Trim Cover Replacement
Instrument Panel Carrier Support Bracket Replacement - Driver Side

CAUTION:

With wheels of the vehicle facing straight ahead, secure the steering wheel utilizing steering column anti-rotation pin, steering column lock, or a strap to prevent rotation. Locking of the steering column will prevent damage and a possible malfunction of the SIR system. The steering wheel must be secured in position before disconnecting the following components:

The steering column
The steering shaft coupling
The intermediate shaft(s)

After disconnecting these components, do not rotate the steering wheel or move the front tires and wheels. Failure to follow this procedure may cause the SIR coil assembly to become un-centered and cause possible damage to the SIR coil. If you think the SIR coil has became un-centered, refer to your specific SIR coil's centering procedure to re-center SIR Coil.

Place match marks on the steering column shaft and the intermediate steering shaft to aid in installation.
Intermediate Steering Shaft @ Steering Column - Separate - Intermediate Steering Shaft Replacement
Disconnect the steering column electrical connectors as necessary.

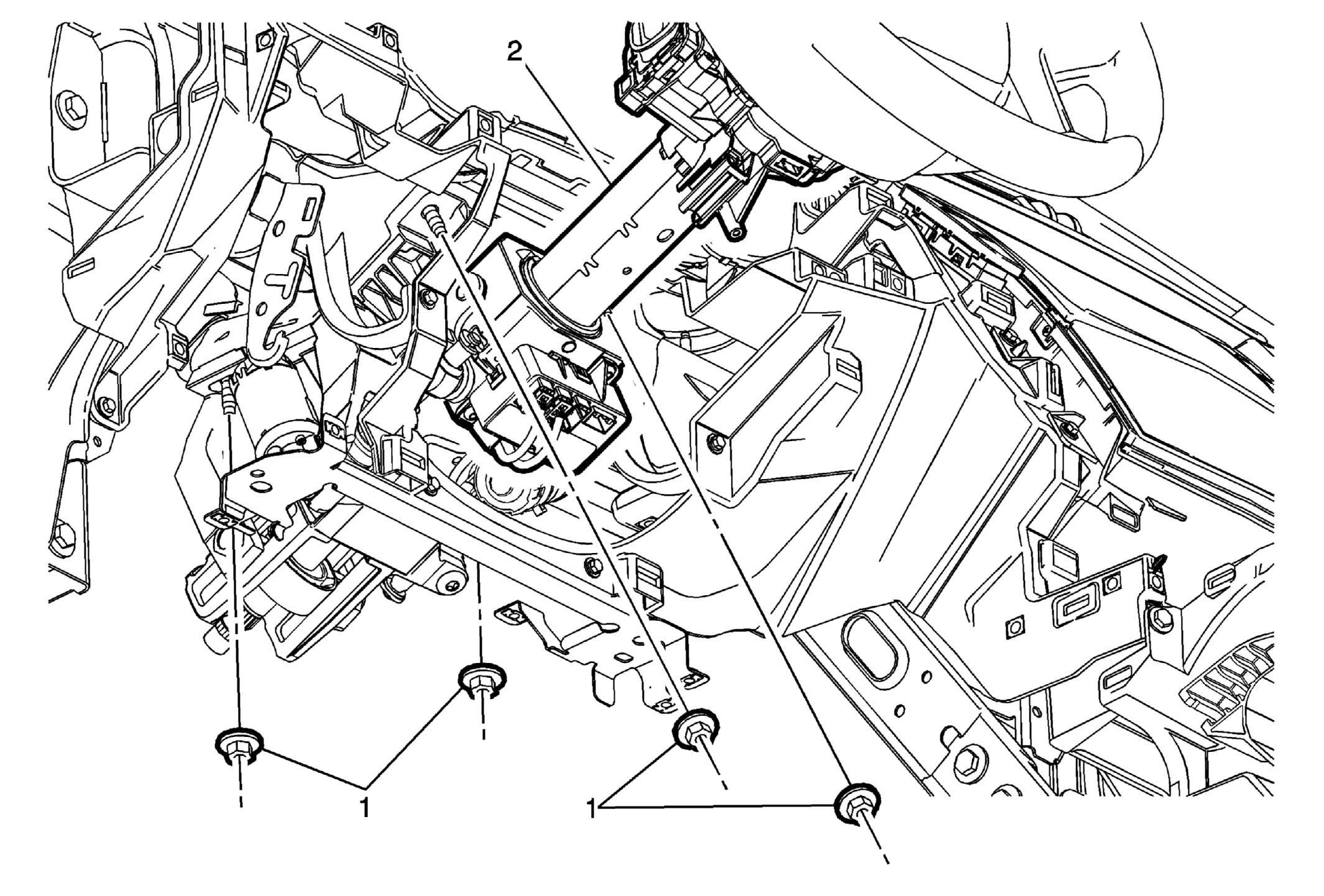

Steering Column Nut [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

Steering Column

CAUTION:

Once the steering column is removed from the vehicle, the column is extremely susceptible to damage. Dropping the column assembly on the end could collapse the steering shaft or loosen the plastic injections, which maintain column rigidity. Leaning on the column assembly could cause the jacket to bend or deform. Any of the above damage could impair the columns collapsible design. Do NOT hammer on the end of the shaft, because hammering could loosen the plastic injections, which maintain column rigidity. If you need to remove the steering wheel, refer to the Steering Wheel Replacement procedure in this section.

Procedure

If replacing the steering column, copy the match marks from the OLD steering column to the NEW steering column.
Transfer components as necessary.
After installation and before the steering column upper and lower trim covers are installed, relearn the soft and hard stops. Steering Column Tilt Wheel and Telescope Control Module Learn
Center the steering angle sensor. Steering Angle Sensor Replacement

NOTE:

In order to relearn the steering column soft and hard stops, the steering column must be mounted and fastened and the steering column upper and lower trim covers cannot be installed.
