Installation Procedure
- NOTE:
Ensure the retaining tabs are properly aligned.

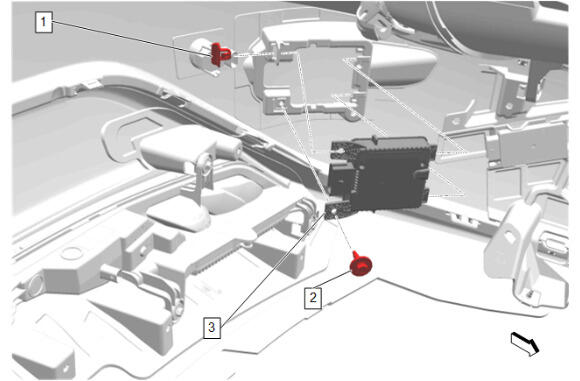

Side Obstacle Detection Control Module (3) - Install
- Short Range Radar Sensor Bolt (2) - Install and tighten - Fastener Specifications
- Side Object Sensing Alert Module Clip (1) - Install
- Connect the electrical connector.
With the aid of an assistant, install the fascia. (1) - Rear Bumper Fascia Removal and Installation
- Perform the necessary programming and setup procedure: Control Module References
CAUTION:
Refer to Fastener Caution .
