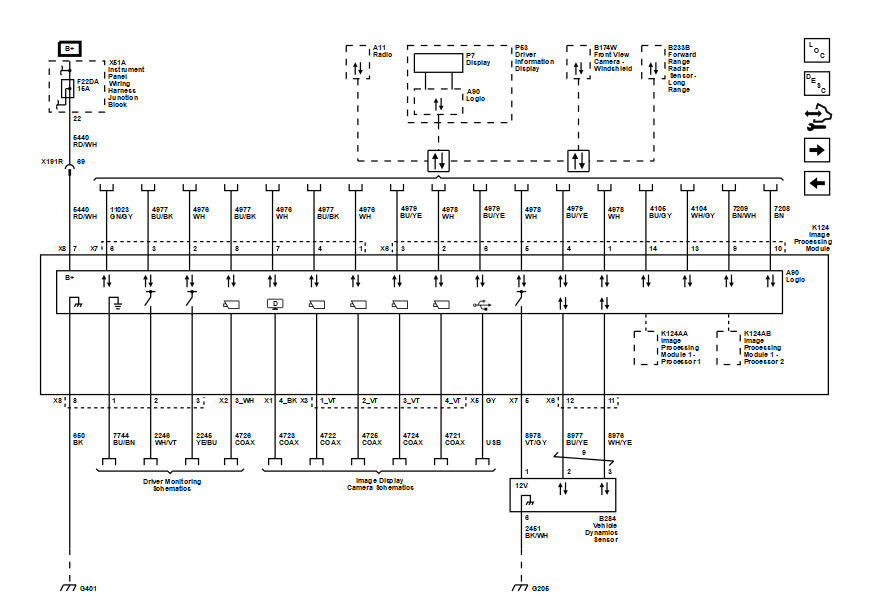

Collision Mitigation - Module Power, Ground, Serial Data, References, and Vehicle Dynamic Sensor (UKL)

GM6153442Courtesy of GENERAL MOTORS COMPANY
