Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

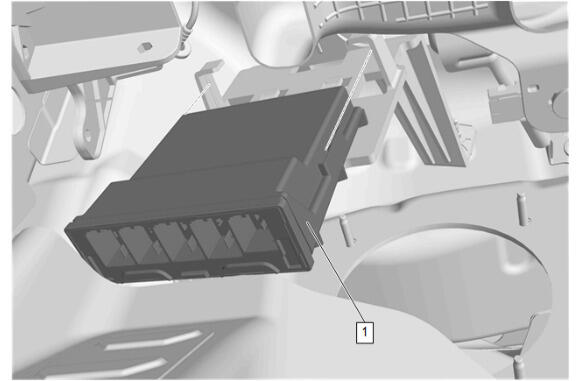

Lighting Control Module (1) - Install
Secure the retaining tabs.
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Install the left instrument panel lower trim panel insulator (1) to the floor studs.
Courtesy of GENERAL MOTORS COMPANY

Connect the instrument panel wiring harness (3) to the instrument panel lower trim panel insulator.

CAUTION:

Instrument Panel Lower Trim Panel Insulator Bolt (2) - Install and tighten - Fastener Specifications
{If equipped} Instrument Panel Insulator Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

WARNING:
When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.
Instrument Panel Knee Bolster (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Insert the tab at the top of the instrument panel outer trim cover (1) into the instrument panel before installing.
Instrument Panel Outer Trim Cover (1) - Install
Perform the necessary programming and setup procedure:Control Module References
