Installation Procedure

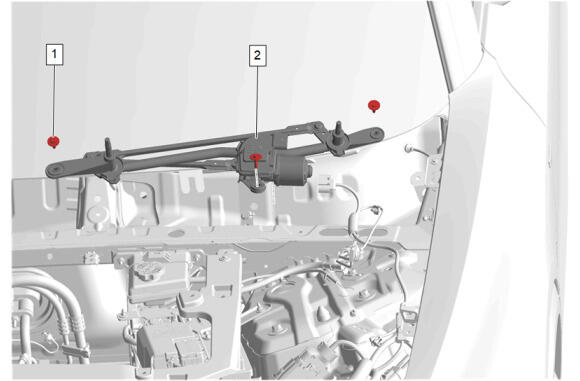

  1. GM5966774Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Windshield Wiper System Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Windshield Wiper System Module Bolt (1) - Install and tighten [3x] - Fastener Specifications
  3. Position the wiring harness and connect the harness retainers and the electrical connector.
    NOTE:

    Ensure the wiring harness is reinstalled in its original fasting location. If the wire harness is not retained and falls into the motion path of the wiper linkage, damage to the wire harness may occur and the wiper system will not operate as intended.

  4. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

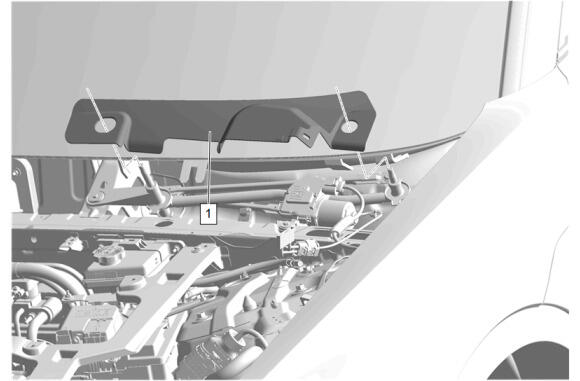

  5. GM5966771Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Windshield Wiper System Module Shield (1) - Install

  6. Carefully install and reconnect windshield wiper park position heater harness.

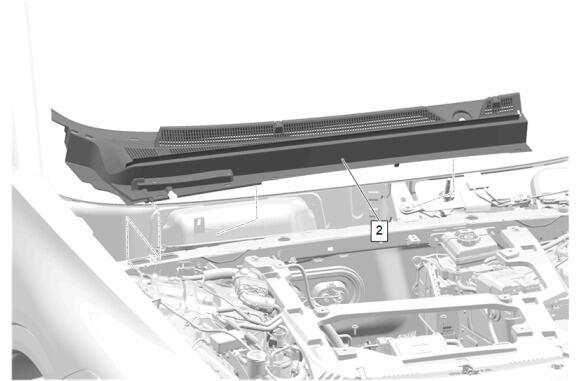

  7. GM5980636Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Air Inlet Grille Panel - Right Side (2) - Install

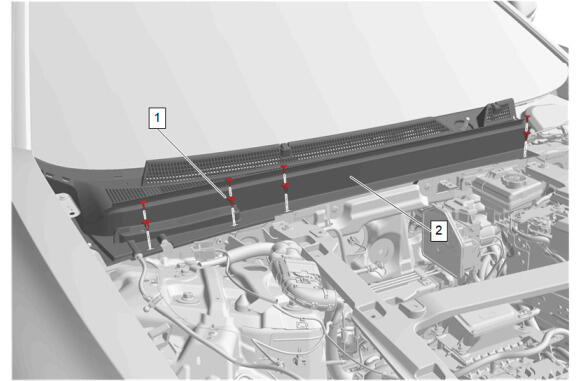

  8. GM5966770Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Windshield Washer Nozzle Hose @ Windshield Washer Nozzle Extension Hose - Connect

  9. Air Inlet Grille Panel Retainer (1) - Install [4x]

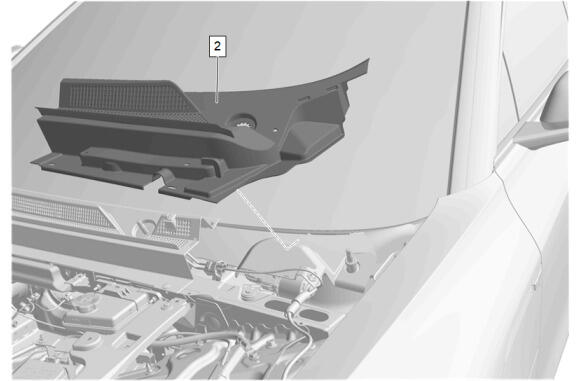

  10. GM5966768Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Air Inlet Grille Panel - Left Side (2) - Install

  11. GM5966767Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Air Inlet Grille Panel Retainer (1) - Install [2x]

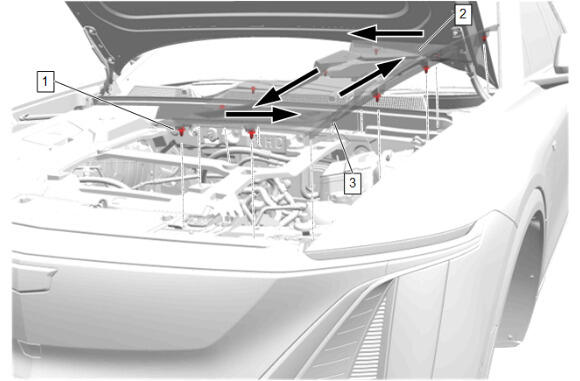

  12. GM5923709Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Compartment Side Sight Shield - Left Side and Right Side (2) - Install [2x]

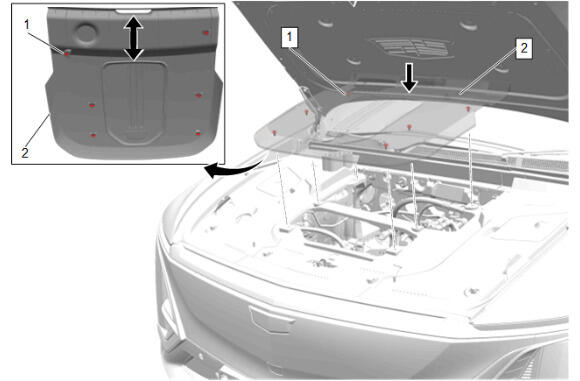

  13. GM5923711Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Rear Access Cover (2) - Install

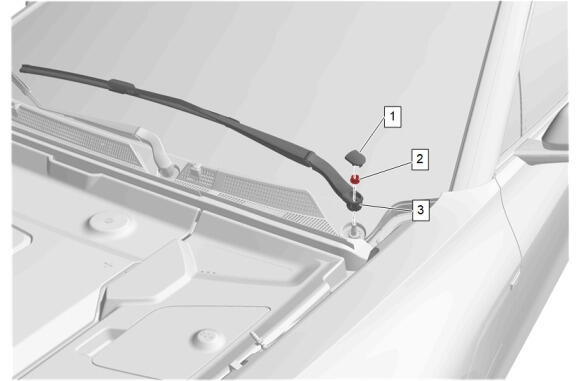

  14. GM5966785Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • Left side shown, right side similar.
    • Some components not shown for graphic clarity.

    Clean the windshield wiper transmission pivot shaft splines with a soft wire brush before installing the windshield wiper arm (3).

  15. Position the windshield wiper arms (3) on the windshield wiper transmission pivot shafts.
    16. CAUTION:

    Refer to Fastener Caution .

  16. Windshield Wiper Arm Nut - Left Side and Right Side (2) - Install and tighten [2x] - Fastener Specifications
  17. Windshield Wiper Arm Finish Cap - Left Side and Right Side (1) - Install [2x]

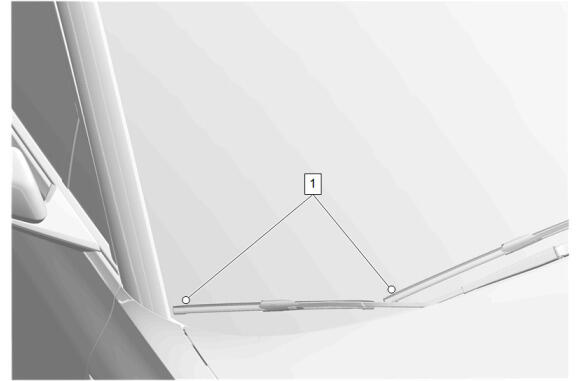

  18. GM5966784Courtesy of GENERAL MOTORS COMPANY

    If required, realign the windshield wipers to their respective alignment circles (1) on the windshield.

  19. Lubricate the windshield with clean washer fluid.
  20. Run the windshield wipers for two complete cycles then turn off the windshield wipers.
  21. Ensure the windshield wipers are in the full park position.

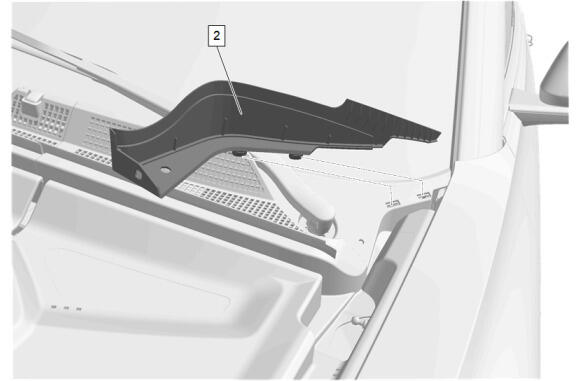

  22. GM5966766Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • Left side shown, right side similar.
    • Some components not shown for graphic clarity.

    Air Inlet Grille Panel Extension - Left Side and Right Side (2) - Install [2x]

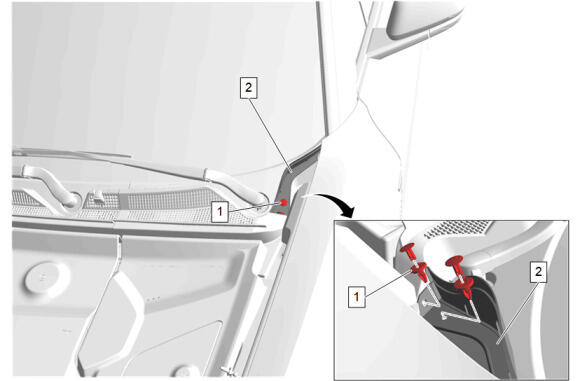

  23. GM5966765Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • Left side shown, right side similar.
    • Some components not shown for graphic clarity.

    Air Inlet Grille Panel Retainer (1) - Install [4x]
