Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

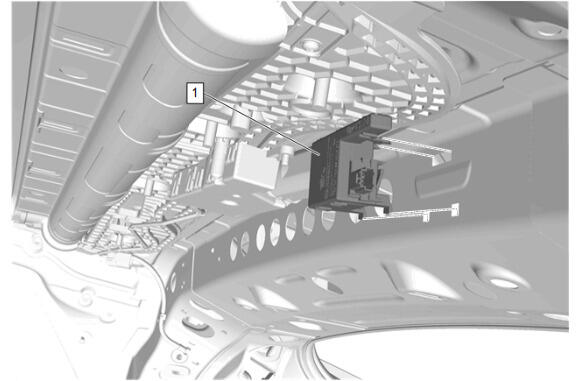

Remote Function Actuator Module (1) - Install
Ensure that the retaining tabs are fully secured.
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

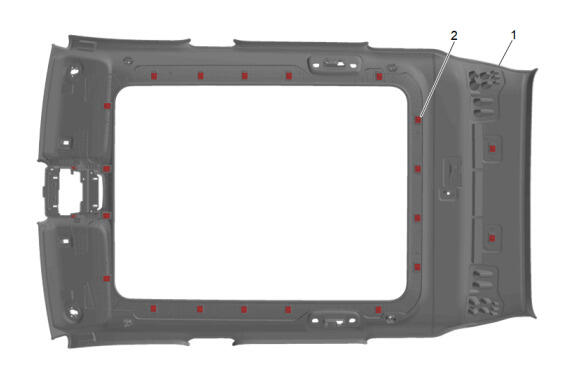

Headlining Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Connect the electrical connectors.
Ensure the seat belt webbing does not become trapped during installation.

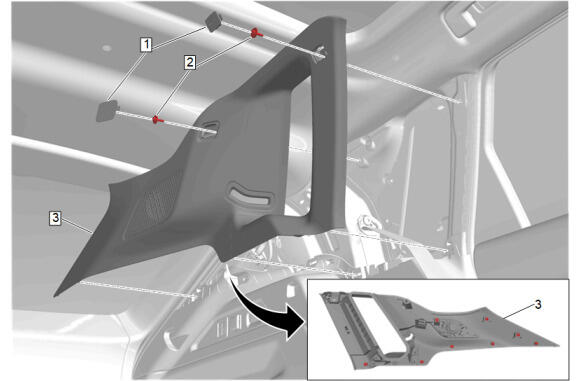

Quarter Window Trim Finish Panel - Left Side and Right Side (3) - Install [2x]

CAUTION:

Quarter Window Trim Finish Panel Bolt - Left Side and Right Side (2) - Install and tighten [4x] - Fastener Specifications
Quarter Window Trim Finish Panel Bolt Cap - Left Side and Right Side (1) - Install [4x]
Courtesy of GENERAL MOTORS COMPANY

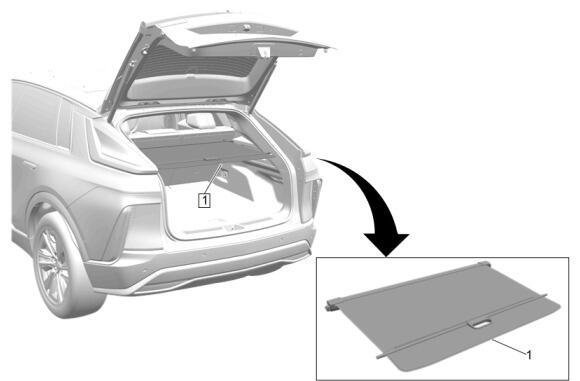

Luggage Shade (1) - Install
Fold the rear seat to the full upward position.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

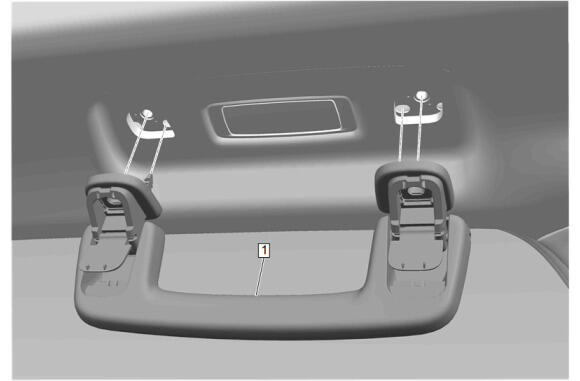

Roof Rail Rear Assist Handle - Left Side and Right Side (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

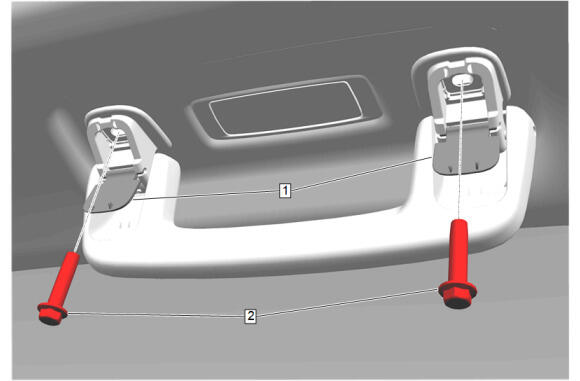

Roof Rail Rear Assist Handle Bolt - Left Side and Right Side (2) - Install and tighten [4x] - Fastener Specifications
Close the assist handle covers (1).
Enable the SIR System. SIR Disabling and Enabling
