Installation Procedure

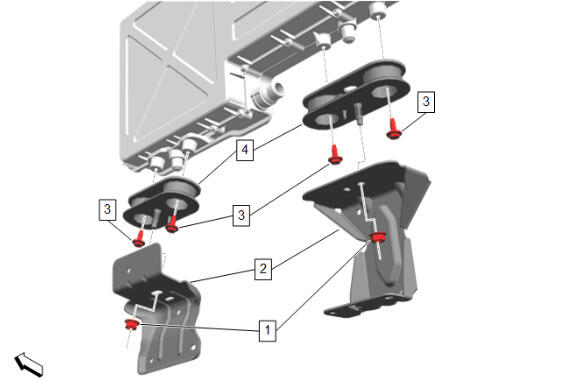

  1. GM6084856Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Battery Charger Adapter (4) - Install [2x]

    2. CAUTION:

    Refer to Fastener Caution

  2. Drive Motor Battery Charger Bolt (3) - Install and tighten [4x] - Fastener Specifications
  3. Drive Motor Battery Charger Bracket (2) - Install [2x]
  4. Drive Motor Battery Charger Bracket Nut (1) - Install and tighten [2x] - Fastener Specifications

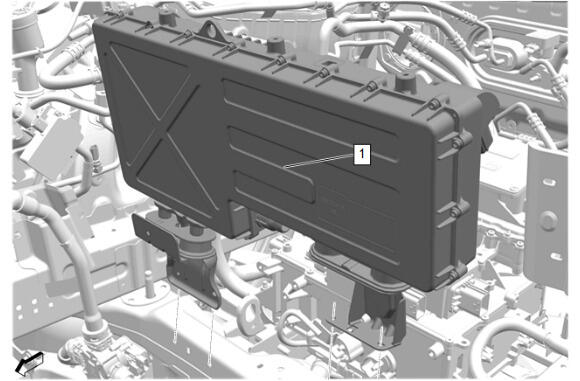

  5. GM6084852Courtesy of GENERAL MOTORS COMPANY

    Battery Charger (1) - Install

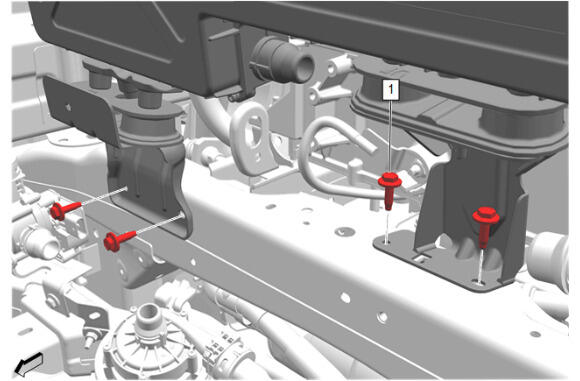

  6. GM6084850Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Battery Charger Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications

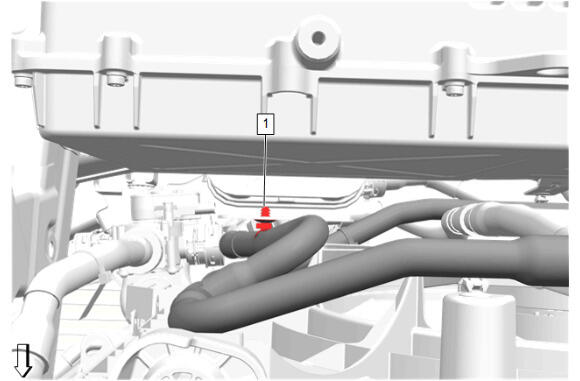

  7. GM6084847Courtesy of GENERAL MOTORS COMPANY

    Radiator Outlet Hose Retainer (1) - Install

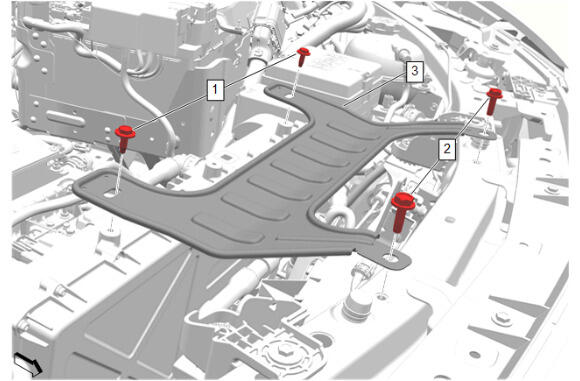

  8. GM5946250Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Battery Charger Bracket (3) - Install

  9. Drive Motor Battery Charger Ground Bolt (2) - Install and tighten [2x] - Fastener Specifications
  10. Drive Motor Battery Charger Bolt (1) - Install and tighten [2x] - Fastener Specifications

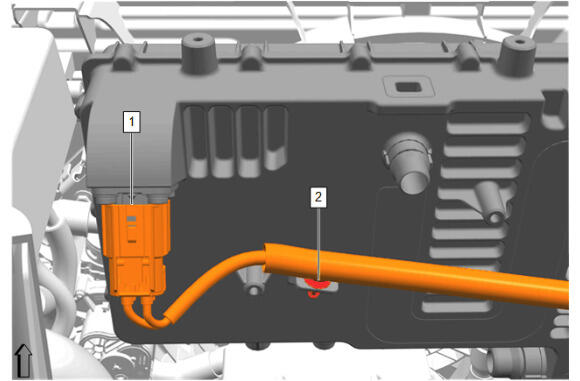

  11. GM5993515Courtesy of GENERAL MOTORS COMPANY

    Connect the high voltage electrical connector and install the wiring harness retainers as necessary. (1, 2) High Voltage Connectors

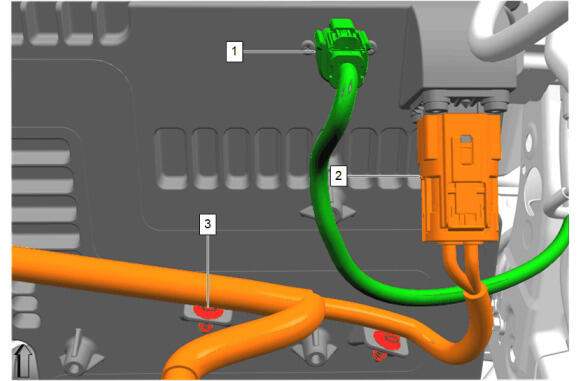

  12. GM5993513Courtesy of GENERAL MOTORS COMPANY

    Connect the high voltage electrical connector and install the wiring harness retainers as necessary. (2, 3) High Voltage Connectors

  13. Connect the electrical connector. (1)

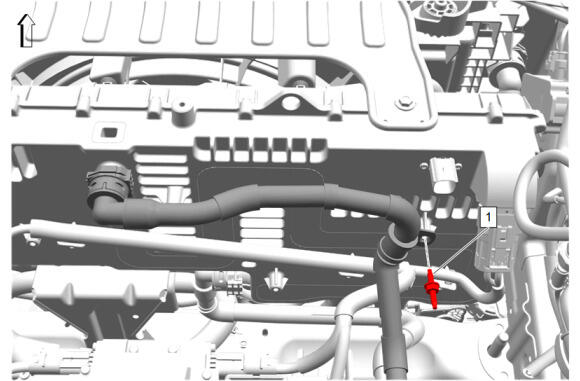

  14. GM5950645Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Heater Inlet and Outlet Pipe Bracket Stud (1) - Install and tighten - Fastener Specifications

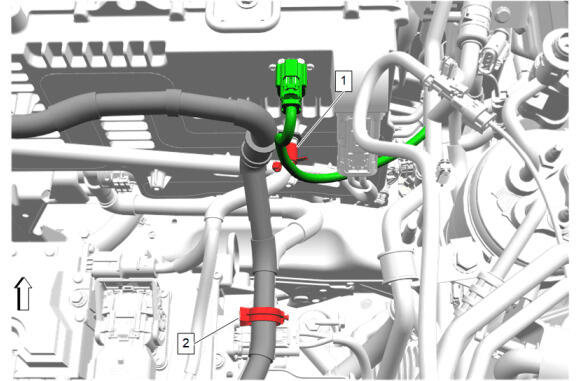

  15. GM5950643Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Clip (1) - Install

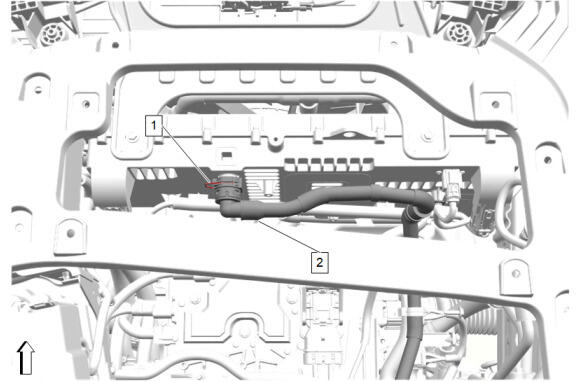

  16. GM5950642Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose (2) @ Battery Charger - Install

  17. Retainer (1) - Engage

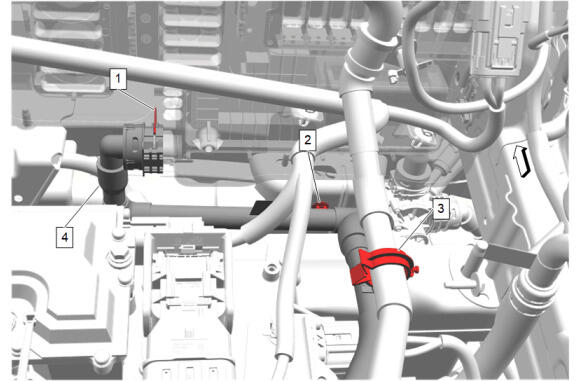

  18. GM5951583Courtesy of GENERAL MOTORS COMPANY

    Heater Inlet and Outlet Pipe Clamp (3) - Install

  19. Retainer (2) - Install
  20. Drive Motor Battery Charger Inlet Hose (4) @ Battery Charger - Install
  21. Retainer (1) - Engage

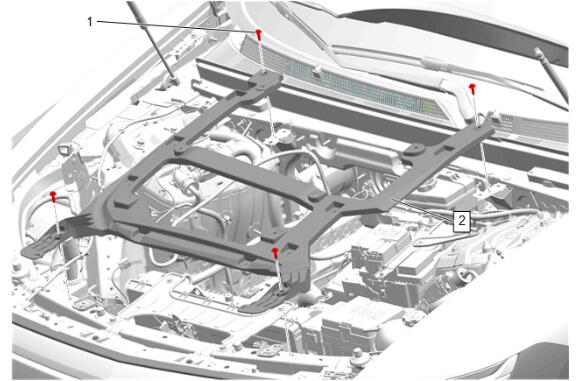

  22. GM5925550Courtesy of GENERAL MOTORS COMPANY

    Front Trim Finish Compartment Support (2) - Install

  23. Front Trim Finish Compartment Bolt (1) - Install and tighten [4x] - Fastener Specifications
  24. Connect the wiring harness retainers.

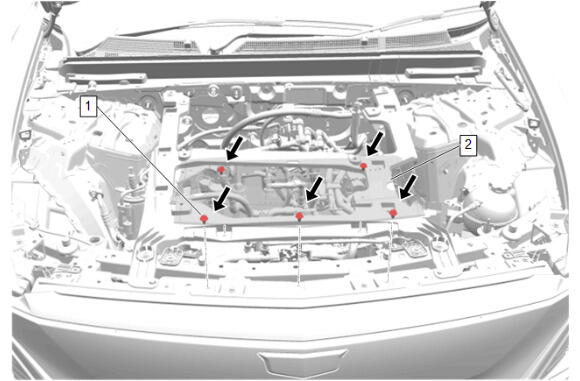

  25. GM5923708Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Front Sight Shield (2) - Install

  26. GM5923709Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Compartment Side Sight Shield - Right Side (2) - Install

  27. Fill the cooling system to the proper level. Drive Motor Battery Cooling System Draining and Filling
  28. Enable the high voltage system. High Voltage Enabling
