HVAC Assembly Components (RHD)

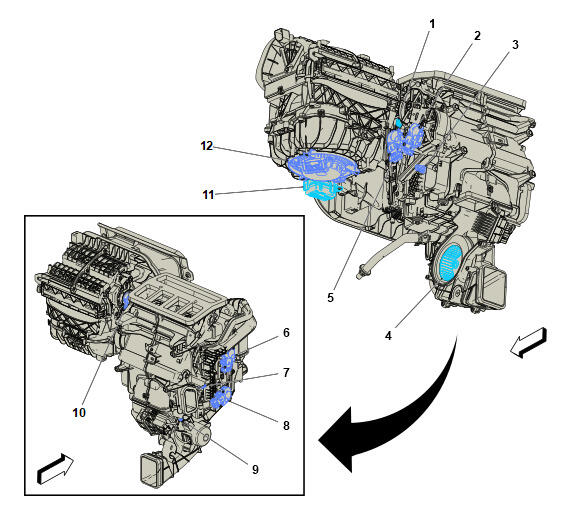

GM6413384Courtesy of GENERAL MOTORS COMPANY
Items
1. B39 Air Conditioning Evaporator Air Temperature Sensor B39 Air Conditioning Evaporator Air Temperature Sensor
2. M37P Programmable Mode Valve Actuator M37P Programmable Mode Valve Actuator
3. B7LF Duct Air Temperature Sensor - Front Left B7LF Duct Air Temperature Sensor - Front Left
4. M8B Blower Motor - Rear (CJ4) M8B Blower Motor - Rear (CJ4)
5. M6PL Programmable Temperature Valve Actuator - Left M6PL Programmable Temperature Valve Actuator - Left
6. M6PR Programmable Temperature Valve Actuator - Right M6PR Programmable Temperature Valve Actuator - Right
7. B7RF Duct Air Temperature Sensor - Front Right B7RF Duct Air Temperature Sensor - Front Right
8. M6BP Rear Programmable Temperature Valve Actuator (CJ4) M6BP Rear Programmable Temperature Valve Actuator (CJ4)
9. B7S Duct Air Temperature Sensor - Rear Upper (CJ4) B7S Duct Air Temperature Sensor - Rear Upper (CJ4)
10. M4P Programmable Air Inlet Valve Actuator M4P Programmable Air Inlet Valve Actuator
11. B357 Inside Ambient Air Quality Particulate Sensor Module (USK) B357 Inside Ambient Air Quality Particulate Sensor Module (USK)
12. M8 Blower Motor M8 Blower Motor
