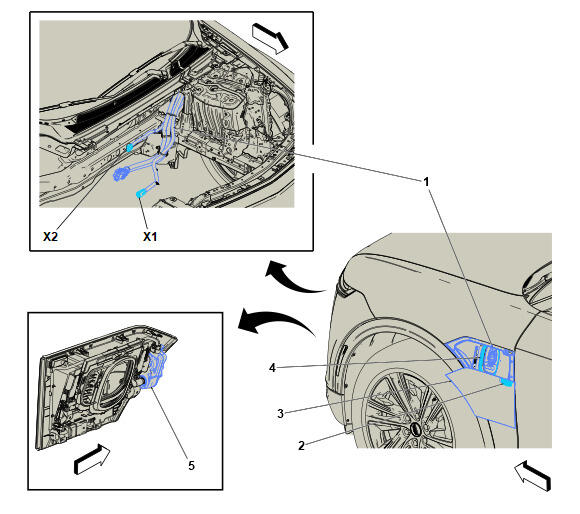

Charge Port Components

GM6073993Courtesy of GENERAL MOTORS COMPANY
Items
1. X98 Battery Charger Coupler X98 Battery Charger Coupler X1 (K2W) , or X98 Battery Charger Coupler X1 (LHD & K28) , or X98 Battery Charger Coupler X1 (LHD & K2O) , or X98 Battery Charger Coupler X1 (RHD & K2O) , or X98 Battery Charger Coupler X2 ((K28 / K20) - MAS) , or X98 Battery Charger Coupler X2 (K2W) , or X98 Battery Charger Coupler X2 (MAS)
2. S113 Charge Port Door Release Switch
3. A110 Charge Port Housing A110 Charge Port Housing
4. E85 Charge Port Housing Lamp
5. M80 Charge Port Door Actuator
