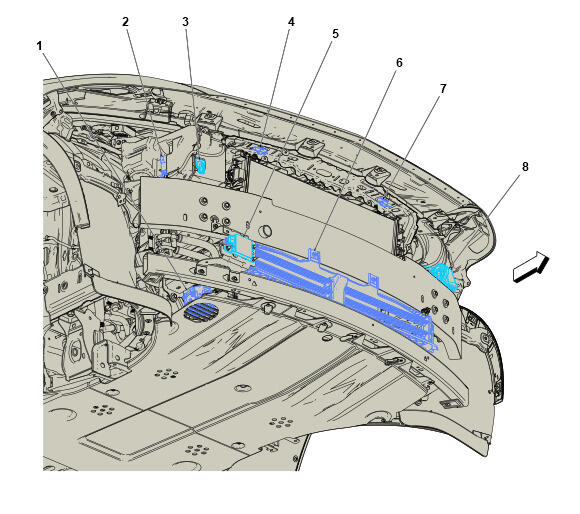

Front of Front Compartment Components (RHD)

GM6425074Courtesy of GENERAL MOTORS COMPANY
Items
1. P48F Pedestrian Sound Alert Speaker - Front P48F Pedestrian Sound Alert Speaker - Front
2. G24 Windshield Washer Pump G24 Windshield Washer Pump
3. B118 Windshield Washer Solvent Container Level Sensor B118 Windshield Washer Solvent Container Level Sensor
4. B58R Airbag Front End Discriminating Sensor - Right B58R Airbag Front End Discriminating Sensor - Right
5. B233B Forward Range Radar Sensor - Long Range B233B Forward Range Radar Sensor - Long Range (UKL / UKM) , or B233B Forward Range Radar Sensor - Long Range (UKR)
6. M96A Active Grille Air Shutter Actuator 1 M96A Active Grille Air Shutter Actuator 1
7. B58L Airbag Front End Discriminating Sensor - Left B58L Airbag Front End Discriminating Sensor - Left
8. P13 Horn P13 Horn
