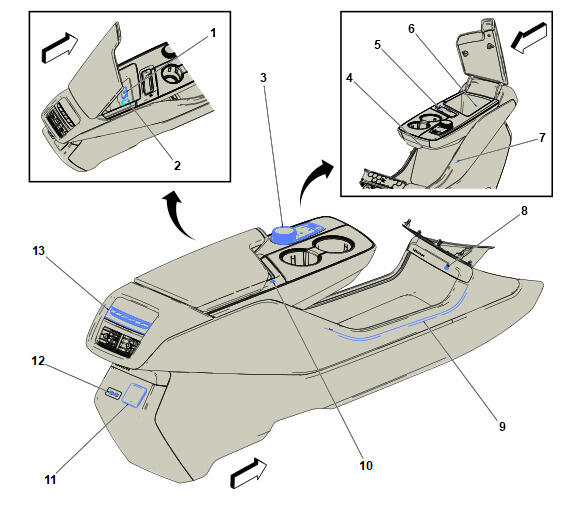

Center Console Components (LHD)

GM6419263Courtesy of GENERAL MOTORS COMPANY
Items
1. X92FCC USB Receptacle - Floor Console Compartment X92FCC USB Receptacle - Floor Console Compartment X1 , or X92FCC USB Receptacle - Floor Console Compartment X2 , or X92FCC USB Receptacle - Floor Console Compartment X3
2. X80L Front Floor Console Accessory Power Rear Receptacle X80L Front Floor Console Accessory Power Rear Receptacle
3. S165 Infotainment Control Switch S165 Infotainment Control Switch
4. E88 Front Floor Console Bin Lamp E88 Front Floor Console Bin Lamp
5. T22 Wireless Accessory Charging Module T22 Wireless Accessory Charging Module
6. E28 Front Floor Console Compartment Lamp E28 Front Floor Console Compartment Lamp
7. E1X Front Floor Console Extension Light Conductor Lamp - Left E1X Front Floor Console Extension Light Conductor Lamp - Left
8. X92FCF USB Receptacle - Floor Console Front
9. E1Y Front Floor Console Extension Light Conductor Lamp - Right E1Y Front Floor Console Extension Light Conductor Lamp - Right
10. X82FC Audio Player and USB Receptacle - Floor Console
11. X81ACA Front Floor Console Accessory Power Rear Receptacle - 110V AC (KI6) X81ACA Front Floor Console Accessory Power Rear Receptacle - 110V AC (KI6)
12. X92CD Dual Charge Only Receptacle - Floor Console Rear X92CD Dual Charge Only Receptacle - Floor Console Rear
13. A34 Heater and Air Conditioning Auxiliary Control (CJ4) A34 Heater and Air Conditioning Auxiliary Control (CJ4)
