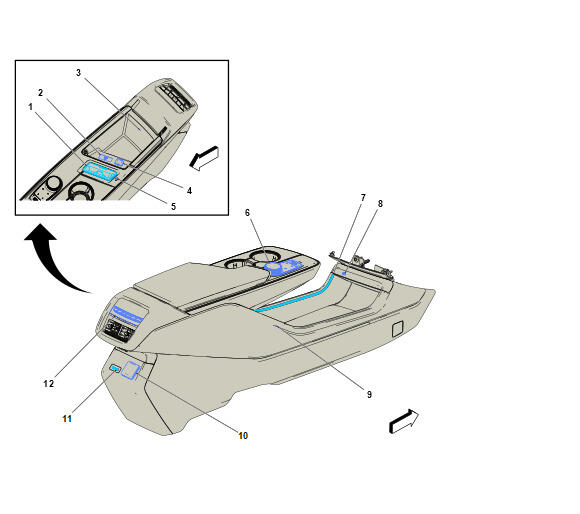

Center Console Components (RHD)

GM6419264Courtesy of GENERAL MOTORS COMPANY
Items
1. T22 Wireless Accessory Charging Module T22 Wireless Accessory Charging Module
2. X92FCC USB Receptacle - Floor Console Compartment X92FCC USB Receptacle - Floor Console Compartment X1 , or X92FCC USB Receptacle - Floor Console Compartment X2 , or X92FCC USB Receptacle - Floor Console Compartment X3
3. E28 Front Floor Console Compartment Lamp E28 Front Floor Console Compartment Lamp
4. X80L Front Floor Console Accessory Power Rear Receptacle X80L Front Floor Console Accessory Power Rear Receptacle
5. X82FC Audio Player and USB Receptacle - Floor Console
6. S165 Infotainment Control Switch S165 Infotainment Control Switch
7. E1Y Front Floor Console Extension Light Conductor Lamp - Right E1Y Front Floor Console Extension Light Conductor Lamp - Right
8. X92FCF USB Receptacle - Floor Console Front
9. E1X Front Floor Console Extension Light Conductor Lamp - Left E1X Front Floor Console Extension Light Conductor Lamp - Left
10. X81BCA Front Floor Console Accessory Power Rear Receptacle - 220V AC (KI7) X81BCA Front Floor Console Accessory Power Rear Receptacle - 220V AC (KI7)
11. X92CD Dual Charge Only Receptacle - Floor Console Rear X92CD Dual Charge Only Receptacle - Floor Console Rear
12. A34 Heater and Air Conditioning Auxiliary Control (CJ4) A34 Heater and Air Conditioning Auxiliary Control (CJ4)
