HVAC Assembly Components (LHD and CJ4)

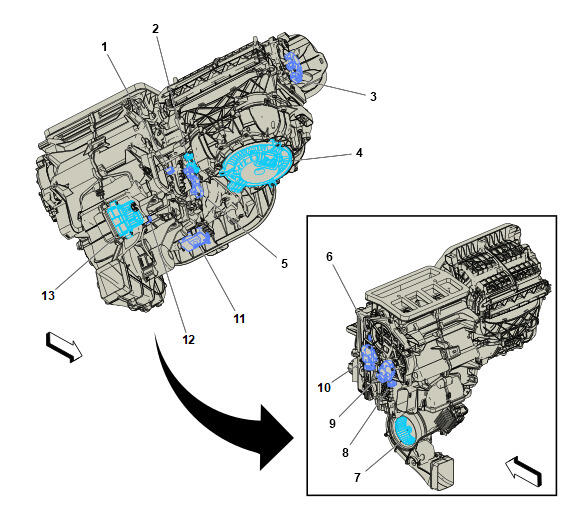

GM6413383Courtesy of GENERAL MOTORS COMPANY
Items
1. B7RF Duct Air Temperature Sensor - Front Right B7RF Duct Air Temperature Sensor - Front Right
2. M6PR Programmable Temperature Valve Actuator - Right M6PR Programmable Temperature Valve Actuator - Right
3. M4P Programmable Air Inlet Valve Actuator M4P Programmable Air Inlet Valve Actuator
4. M8 Blower Motor M8 Blower Motor
5. M6BP Rear Programmable Temperature Valve Actuator (CJ4) M6BP Rear Programmable Temperature Valve Actuator (CJ4)
6. B39 Air Conditioning Evaporator Air Temperature Sensor B39 Air Conditioning Evaporator Air Temperature Sensor
7. M8B Blower Motor - Rear (CJ4) M8B Blower Motor - Rear (CJ4)
8. B7LF Duct Air Temperature Sensor - Front Left B7LF Duct Air Temperature Sensor - Front Left
9. M37P Programmable Mode Valve Actuator M37P Programmable Mode Valve Actuator
10. M6PL Programmable Temperature Valve Actuator - Left M6PL Programmable Temperature Valve Actuator - Left
11. B357 Inside Ambient Air Quality Particulate Sensor Module (USK) B357 Inside Ambient Air Quality Particulate Sensor Module (USK)
12. B7S Duct Air Temperature Sensor - Rear Upper (CJ4) B7S Duct Air Temperature Sensor - Rear Upper (CJ4)
13. K8AB Blower Motor Control Module - Rear (CJ4) K8AB Blower Motor Control Module - Rear X1 (CJ4) , or K8AB Blower Motor Control Module - Rear X2 (CJ4)
