Drive Motor Power Distribution Control Module Installation

Courtesy of GENERAL MOTORS COMPANY

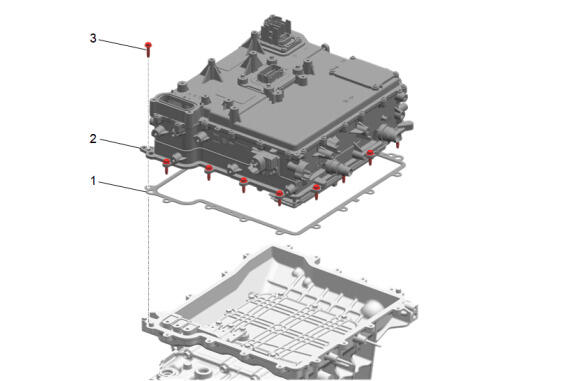

Drive Motor Power Inverter Module Gasket (1) - Install
Drive Motor Power Distribution Control Module (2) - Install
Drive Motor Power Inverter Module Bolt (3) - Install and tighten in sequence [17x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Using a magnetic socket, install and tighten the 3 drive motor power inverter module connector bolts (1). Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Drive motor power distribution control module high voltage connector access cover seal is not serviceable separately.

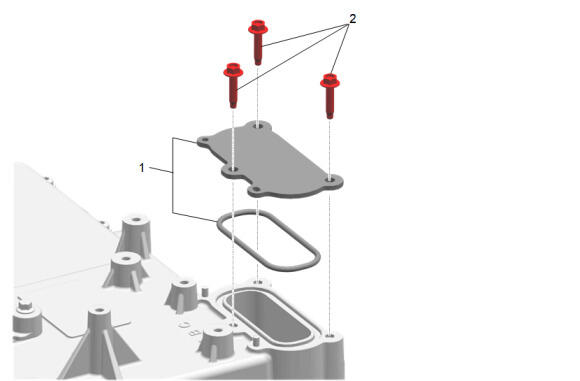

Drive Motor Power Distribution Control Module High Voltage Connector Access Cover (1) - Install
Drive Motor Power Distribution Control Module High Voltage Connector Cover Bolt (2) - Install and tighten [3x] - Fastener Specifications
