Drive Motor Power Distribution Control Module Removal

Courtesy of GENERAL MOTORS COMPANY

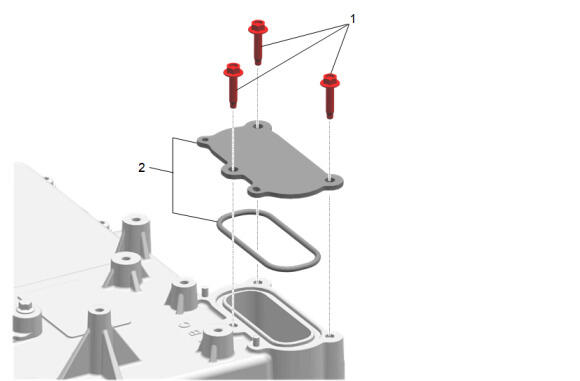

Drive Motor Power Distribution Control Module High Voltage Connector Cover Bolt (1) - Remove [3x]

NOTE:

Drive motor power distribution control module high voltage connector access cover seal is not serviceable separately.

Drive Motor Power Distribution Control Module High Voltage Connector Access Cover (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

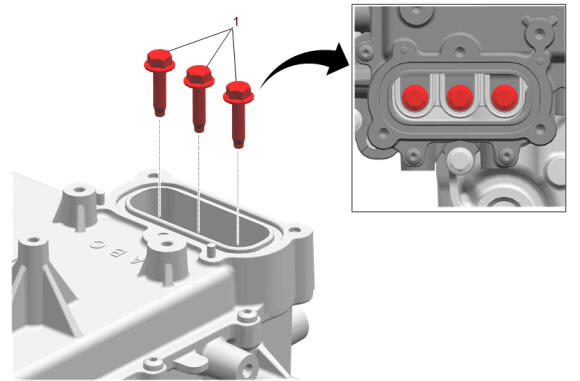

Using a magnetic socket, remove the 3 drive motor power inverter module connector bolts (1).
Courtesy of GENERAL MOTORS COMPANY

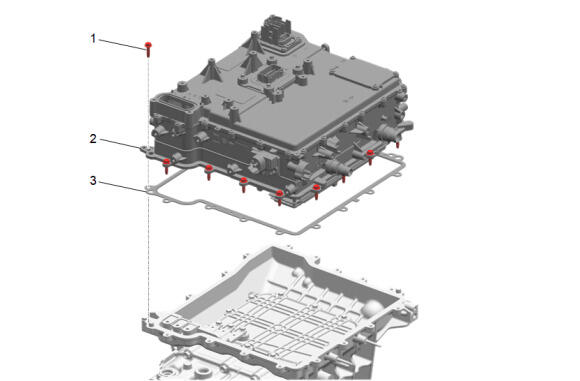

Drive Motor Power Inverter Module Bolt (1) - Remove [17x]
Drive Motor Power Distribution Control Module (2) - Remove
Drive Motor Power Inverter Module Gasket (3) - Remove
