Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

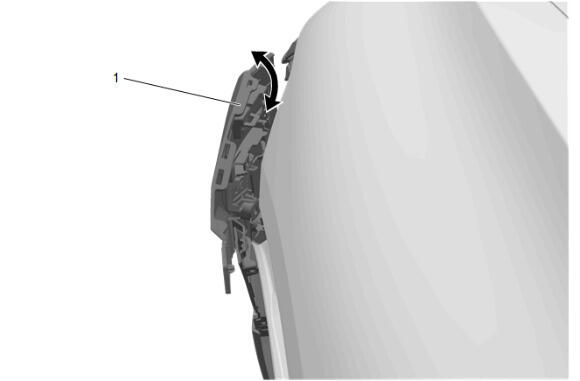

UHF Low Energy Remote Control Access Sensor Transceiver (1) - Install
Ensure that the retaining tabs are fully secured.
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Front Bumper Fascia- Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

CAUTION:
Refer to Fastener Caution .

Front Bumper Fascia Bolt - Right Side (2) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

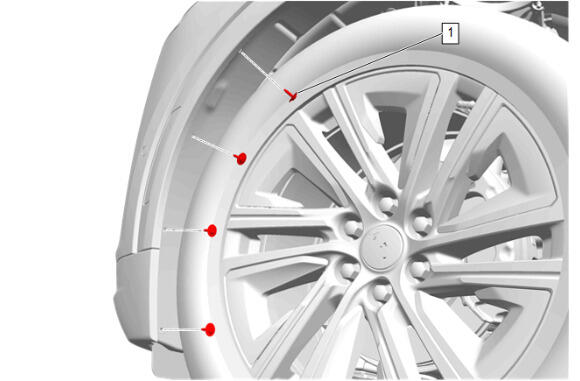

Front Wheelhouse Liner Bolt - Right Side (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Connect the electrical connector.

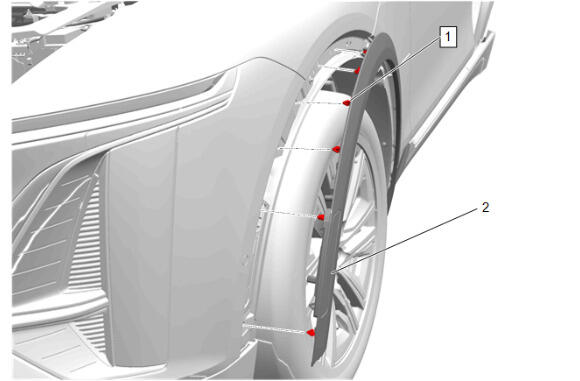

Front Wheel Opening Molding Retainer - Right Side (1) - Install [6x]
Front Wheel Opening Molding - Right Side (2) - Install
Remove the double layer of masking tape around the perimeter of the painted surfaces.
With a clean towel, use a 50/50 mixture of isopropyl alcohol and clean drinking water to remove any left over adhesive residue from the masking tape.
