Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

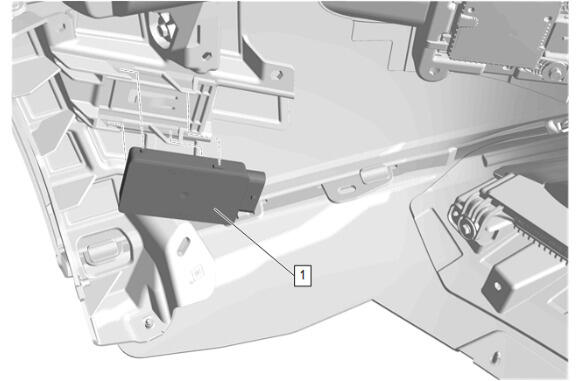

UHF Low Energy Remote Control Access Sensor Transceiver (1) - Install
Ensure that the retaining tabs are fully secured.
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The proper position of the underbody rear air rear deflector - rear (1) is above the left and right side rear wheelhouse liners.

Underbody Rear Air Rear Deflector - Rear (1) - Install
Courtesy of GENERAL MOTORS COMPANY

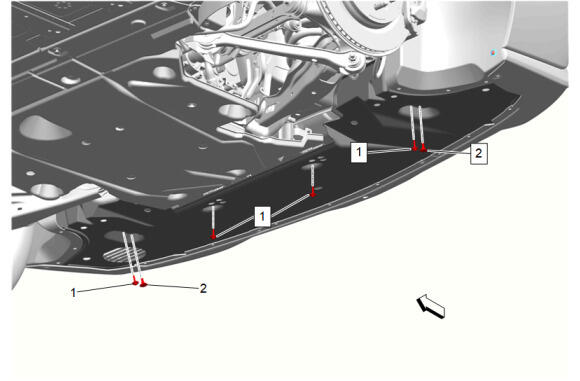

Underbody Rear Air Deflector Retainer (2) - Install [2x]

CAUTION:

Underbody Rear Air Rear Deflector Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

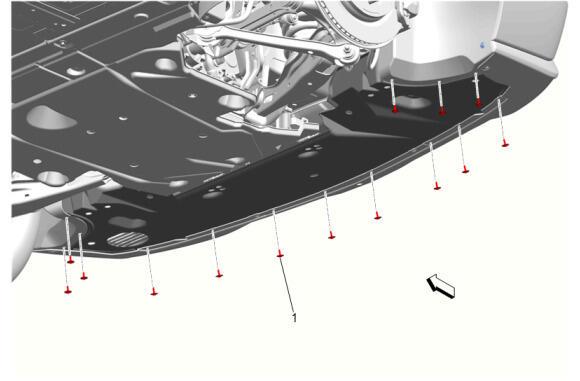

Underbody Rear Air Rear Deflector Bolt (1) - Install and tighten [14x] - Fastener Specifications
Remove the support and lower the vehicle.
