Removal Procedure

  1. Front Side Door Trim - Remove - Front Side Door Trim Removal and Installation

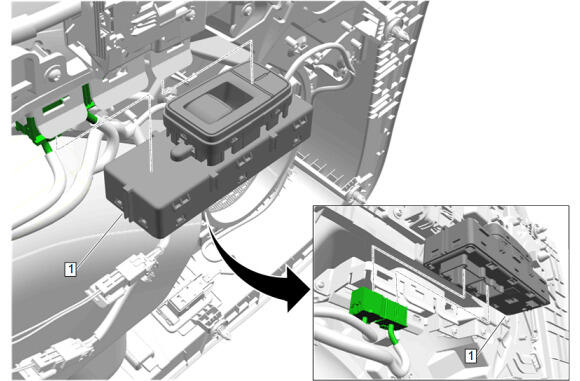

  2. GM5947871Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connectors.

  3. Release the front side door window switch (1) from the switch mount plate by depressing the tabs along each side of the switch.
  4. Front Side Door Window Switch (1) - Remove
