Fastener Specifications

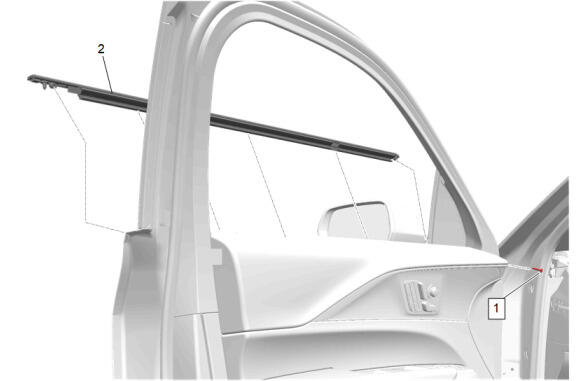

GM5983203Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Belt Reveal Molding Bolt - - 1.5 N.m (13 lb in) Front Side Door Window Belt Reveal Molding Replacement

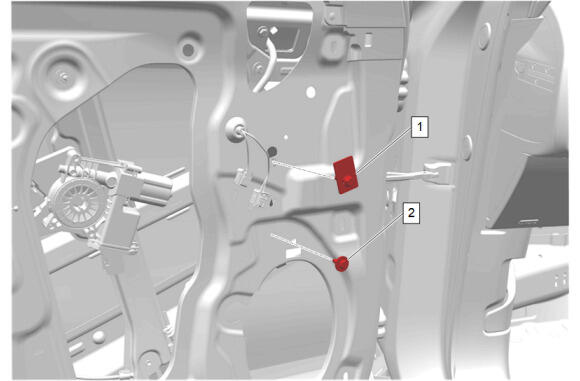

GM6750669Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Channel Front Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Channel Retainer Bolt - Yes 11 N.m (97 lb in) Front Side Door Window Channel Front Retainer Replacement
2 Front Side Door Window Channel Retainer Bolt - Yes 11 N.m (97 lb in) Front Side Door Window Channel Front Retainer Replacement

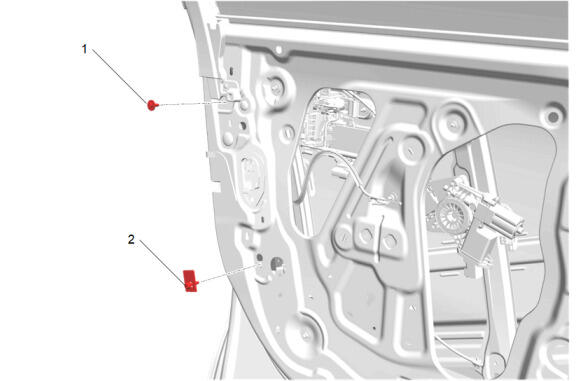

GM6750637Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Channel Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Channel Retainer Bolt - Yes 11 N.m (97 lb in) Front Side Door Window Channel Retainer Replacement
2 Front Side Door Window Channel Retainer Bolt - Yes 11 N.m (97 lb in) Front Side Door Window Channel Retainer Replacement

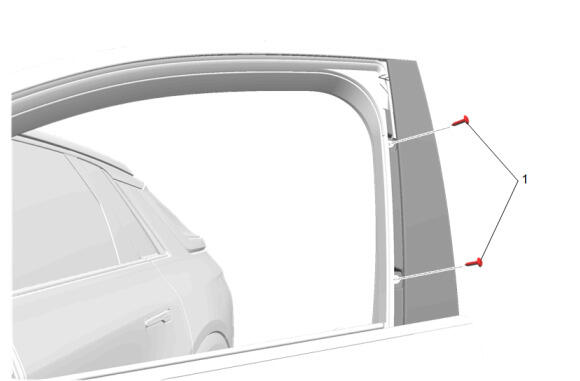

GM6002929Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Frame Rear Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Frame Rear Applique Bolt [2x] - - 1.5 N.m (13 lb in) Front Side Door Window Frame Rear Applique Replacement (- BOY) , or Front Side Door Window Frame Rear Applique Replacement (BOY)

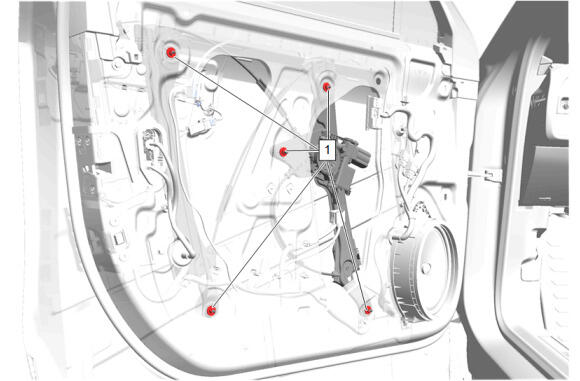

GM5987904Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Nut [5x] - - 11 N.m (97 lb in) Front Side Door Window Regulator Replacement

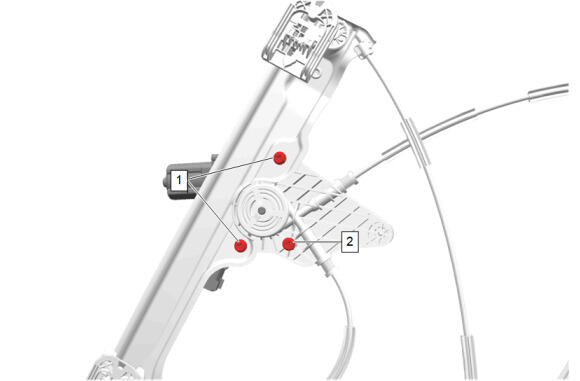

GM6341716Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Motor Bolt [2x] - - 8.5 N.m (75 lb in) Front Side Door Window Regulator Motor Replacement
2 Front Side Door Window Regulator Motor Bolt - - 7.0 N.m (62 lb in) Front Side Door Window Regulator Motor Replacement

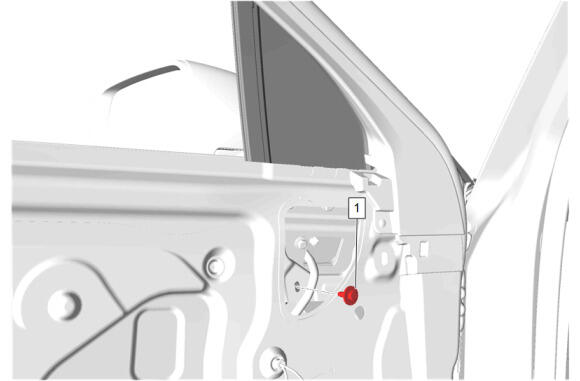

GM5990106Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Weatherstrip

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Weatherstrip Bolt - - 11 N.m (97 lb in) Front Side Door Window Weatherstrip Replacement

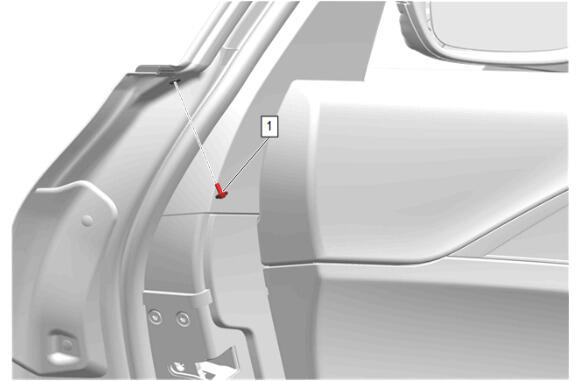

GM6161111Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Belt Reveal Molding Bolt - - 1.5 N.m (13 lb in) Rear Side Door Window Belt Reveal Molding Replacement

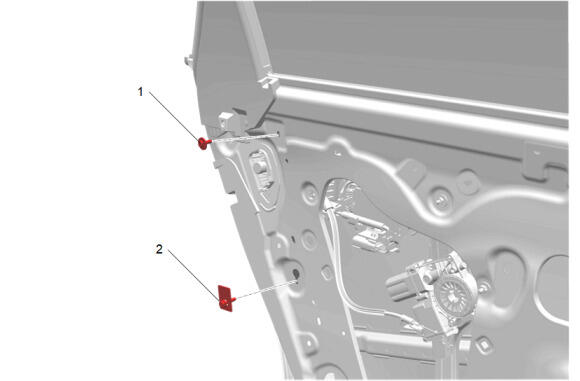

GM6750656Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Channel Rear Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Channel Rear Retainer Bolt - Yes 11 N.m (97 lb in) Rear Side Door Window Channel Rear Retainer Replacement
2 Rear Side Door Window Channel Rear Retainer Bolt - Yes 11 N.m (97 lb in) Rear Side Door Window Channel Rear Retainer Replacement

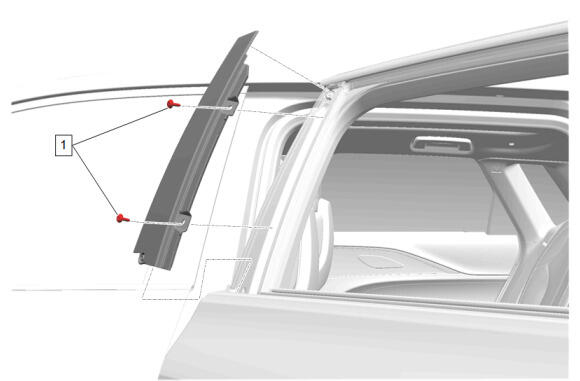

GM6003677Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Frame Front Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Frame Front Applique Bolt [2x] - - 1.5 N.m (13 lb in) Rear Side Door Window Frame Front Applique Replacement

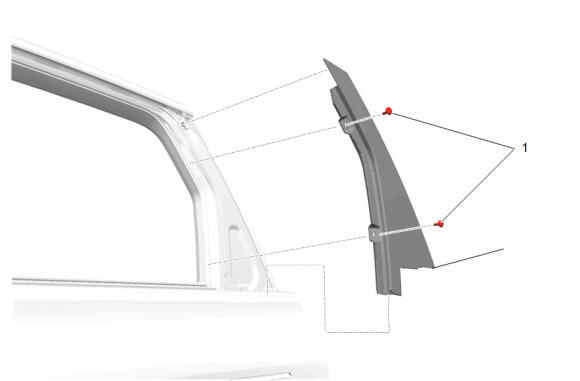

GM6003679Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Frame Rear Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Frame Rear Applique Bolt [2x] - - 1.5 N.m (13 lb in) Rear Side Door Window Frame Rear Applique Replacement

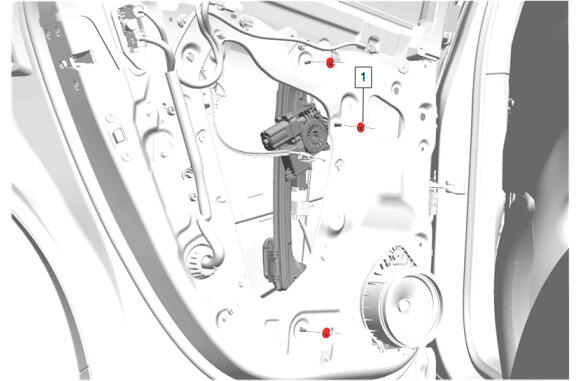

GM5991955Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Nut [3x] - - 11 N.m (97 lb in) Rear Side Door Window Regulator Replacement

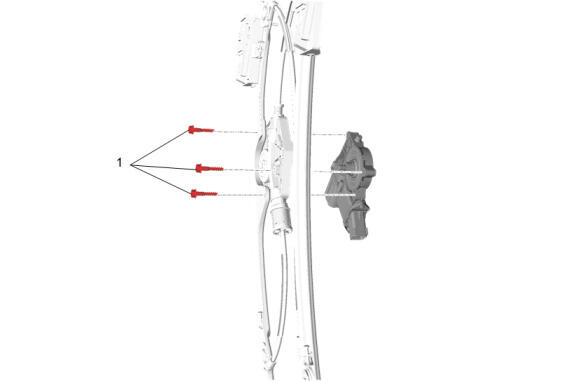

GM5844449Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Motor Bolt [3x] - - Install and hand tighten Rear Side Door Window Regulator Motor Replacement
