Fastener Specifications

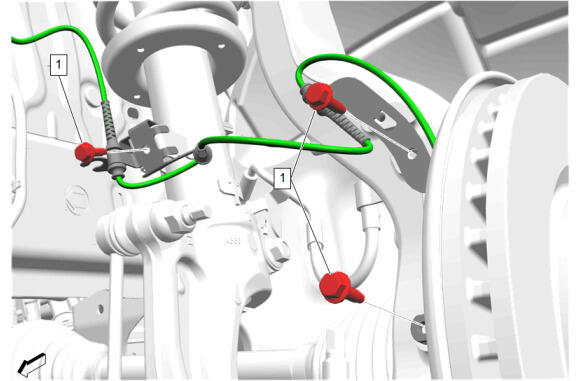

GM5994571Courtesy of GENERAL MOTORS COMPANY
Front Wheel Speed Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Wheel Speed Sensor Bolt [3x] - - 9 N.m (80 lb in) Front Wheel Speed Sensor Replacement

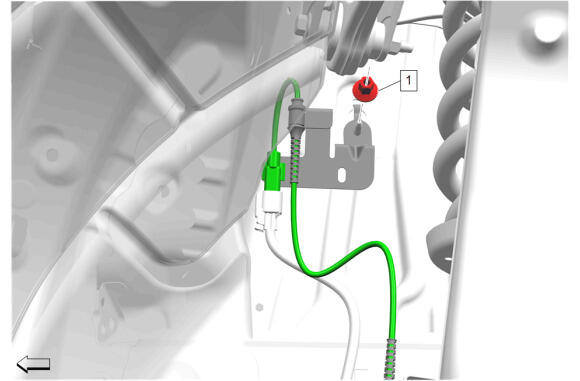

GM6166519Courtesy of GENERAL MOTORS COMPANY
Front Wheel Speed Sensor Harness

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Wheel Speed Sensor Bracket Nut - - 9 N.m (80 lb in) Front Wheel Speed Sensor Replacement

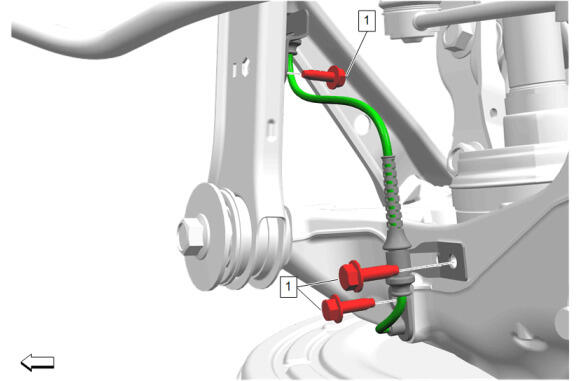

GM5994516Courtesy of GENERAL MOTORS COMPANY
Rear Wheel Speed Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Wheel Speed Sensor Bolt [3x] - - 9 N.m (80 lb in) Rear Wheel Speed Sensor Replacement
GM5994520Courtesy of GENERAL MOTORS COMPANY
Rear Wheel Speed Sensor Harness

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Wheel Speed Sensor Bracket Nut - - 9 N.m (80 lb in) Rear Wheel Speed Sensor Replacement

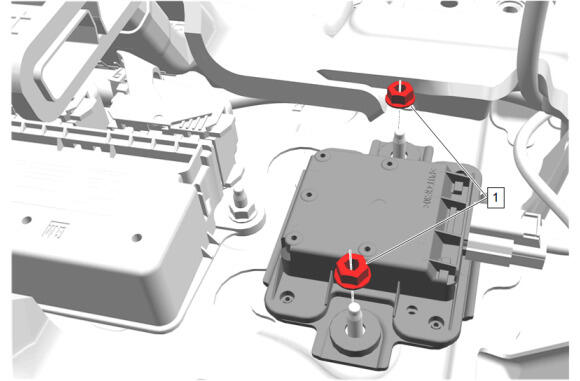

GM5970047Courtesy of GENERAL MOTORS COMPANY
Vehicle Dynamic Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Vehicle Dynamic Sensor Nut [2x] - - 9 N.m (80 lb in) Vehicle Dynamics Sensor Replacement
