Installation Procedure

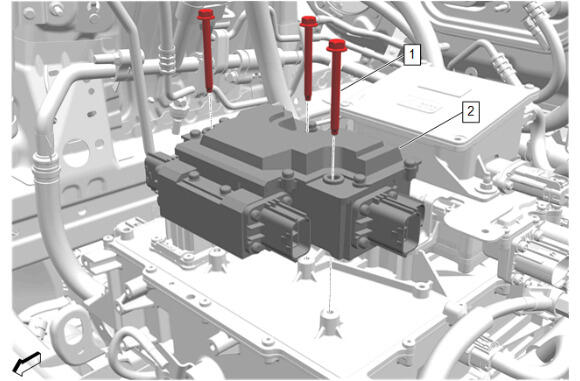

  1. GM6087816Courtesy of GENERAL MOTORS COMPANY

    Hybrid/Electric Vehicle Battery Charging Disconnect Module Relay (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Drive Motor Battery Charger Module Relay Bolt (1) - Install and tighten [3x] - Fastener Specifications

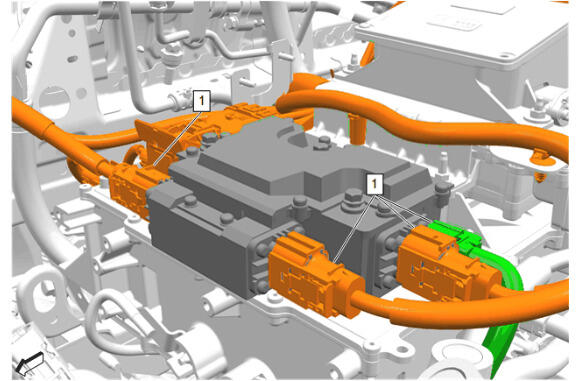

  3. GM6087815Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors. (1)

  4. Enable the high voltage system. High Voltage Enabling
