Fastener Specifications

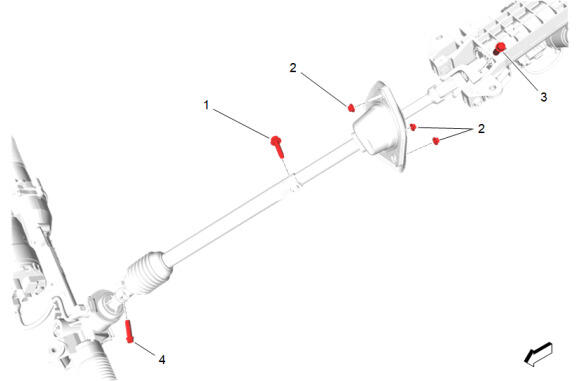

GM5969809Courtesy of GENERAL MOTORS COMPANY
Intermediate Steering Shaft

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Mid Intermediate Steering Shaft Bolt - Yes 58 N.m (43 lb ft) Intermediate Steering Shaft Replacement
2 Intermediate Steering Shaft Boot Nut [3x] - - 9 N.m (80 lb in) Intermediate Steering Shaft Outer Boot Replacement
3 Intermediate Steering Shaft Upper Bolt - - 50 N.m (37 lb ft) Upper Intermediate Steering Shaft Replacement
4 Intermediate Steering Shaft Lower Bolt - - 50 N.m (37 lb ft) Intermediate Steering Shaft Replacement

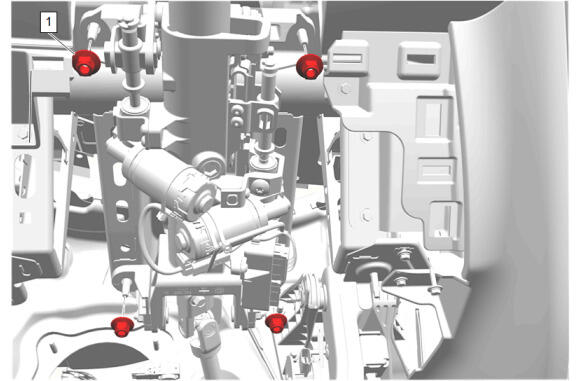

GM6142849Courtesy of GENERAL MOTORS COMPANY
Steering Column

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Column Nut [4x] - - Steering Column Nut Sequence  Steering Column Replacement

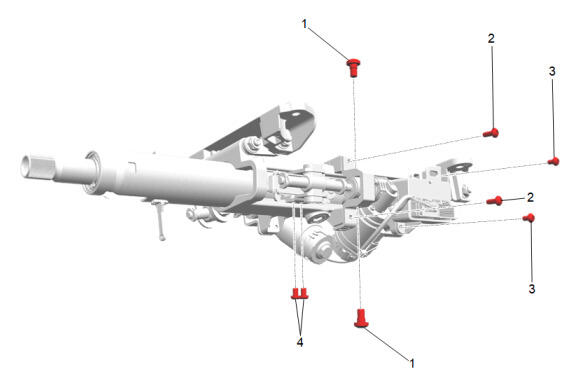

GM6001572Courtesy of GENERAL MOTORS COMPANY
Steering Column Telescope Actuator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Column Telescope Actuator Bracket Bolt [2x] - - 6 N.m (53 lb in) Steering Column Telescope Actuator Replacement
2 Steering Column Telescope Actuator Bracket Bolt [2x] - - 4.5 N.m (40 lb in) Steering Column Telescope Actuator Replacement
3 Steering Column Control Module Bracket Bolt [2x] - - 2.5 N.m (22 lb in) Steering Column Control Module Replacement
4 Steering Column Telescope Actuator Bracket Bolt [2x] - - 4 N.m (35 lb in) Steering Column Telescope Actuator Replacement

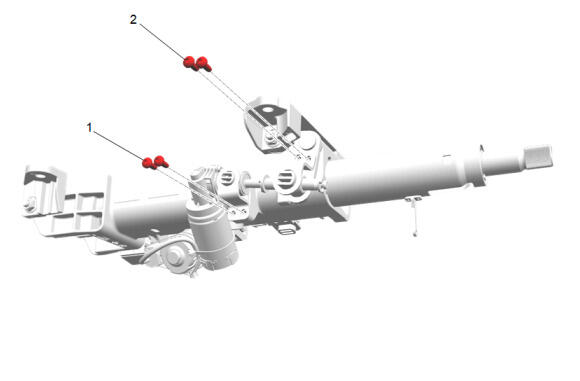

GM6001569Courtesy of GENERAL MOTORS COMPANY
Steering Column Tilt Wheel Actuator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Column Tilt Wheel Actuator Bracket Bolt [2x] - - 4.5 N.m (40 lb in) Steering Column Tilt Wheel Actuator Replacement
2 Steering Column Tilt Wheel Actuator Bracket Bolt [2x] - - 11 N.m (97 lb in) Steering Column Tilt Wheel Actuator Replacement

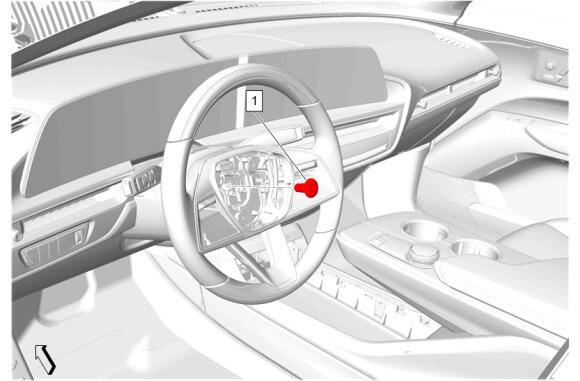

GM5969807Courtesy of GENERAL MOTORS COMPANY
Steering Wheel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Bolt - Yes 45 N.m (33 lb ft) Steering Wheel Replacement

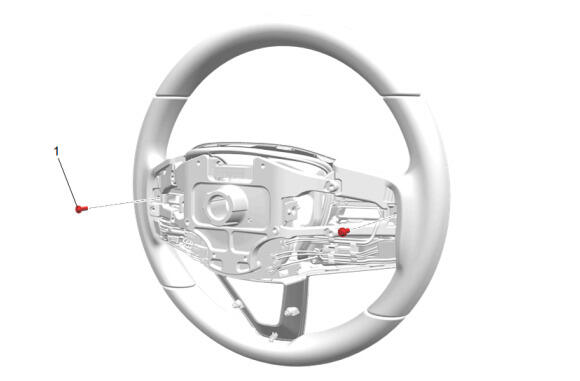

GM6142738Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Bolt [2x] - - 1 N.m (9 lb in) Steering Wheel Spoke Cover Applique Replacement

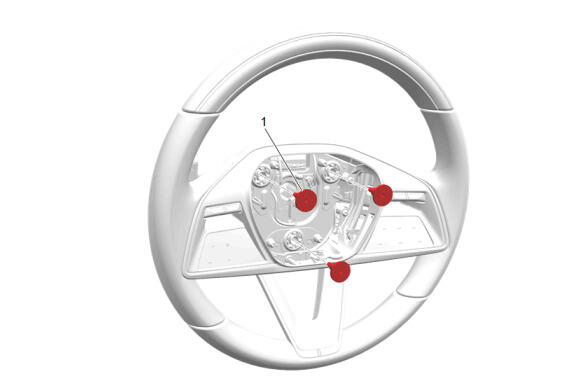

GM6142213Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Bolt @ Steering Wheel Vibration Dampener

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Bolt [3x] - - 5.5 N.m (49 lb in) Steering Wheel Spoke Cover Applique Replacement

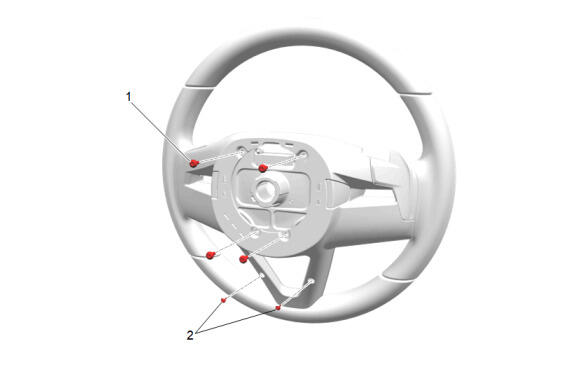

GM6126901Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Shroud

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Spoke Cover Bolt [4x] - - 1 N.m (9 lb in) Steering Wheel Shroud Replacement
2 Steering Wheel Spoke Cover Bolt [2x] - - 1 N.m (9 lb in) Steering Wheel Shroud Replacement

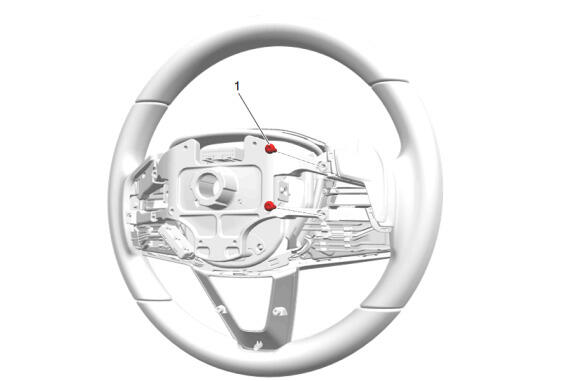

GM6126881Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Spoke Cover Bolt @ Automatic Transmission Manual Shift Auxiliary Position Switch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Spoke Cover Bolt [2x] - - 1 N.m (9 lb in) Automatic Transmission Manual Shift Auxiliary Position Switch Replacement

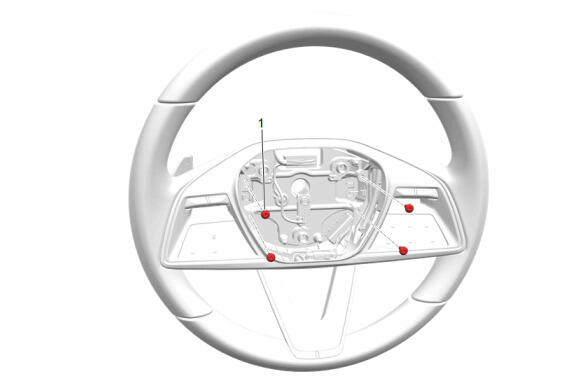

GM6126896Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Spoke Cover Bolt @ Steering Wheel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Spoke Cover Bolt [4x] - - 1 N.m (9 lb in) Steering Wheel Spoke Cover Applique Replacement

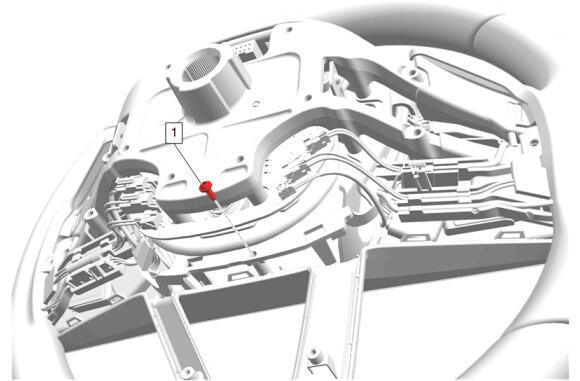

GM6142732Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Spoke Cover Bolt @ Steering Wheel Harness Clip

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Spoke Cover Bolt - - 1 N.m (9 lb in) Steering Wheel Spoke Cover Applique Replacement

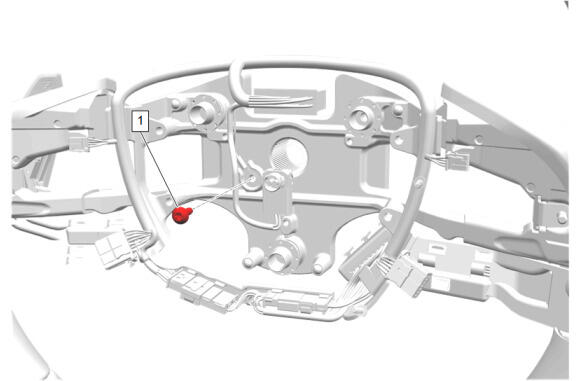

GM6126893Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Spoke Cover Bolt @ Steering Wheel Horn Switch Wiring Harness

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Spoke Cover Bolt - - 1 N.m (9 lb in) Steering Wheel Horn Switch Wiring Harness Replacement
GM6126896Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Spoke Cover Bolt @ Steering Wheel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Spoke Cover Bolt [4x] - - 1 N.m (9 lb in) Steering Wheel Spoke Cover Applique Replacement

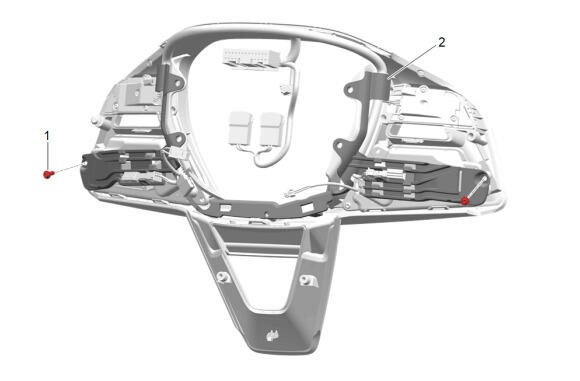

GM6247752Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Spoke Cover Bolt @ Steering Wheel Harness Clip

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Spoke Cover Bolt [2x] - - 1 N.m (9 lb in) Steering Wheel Spoke Cover Applique Replacement

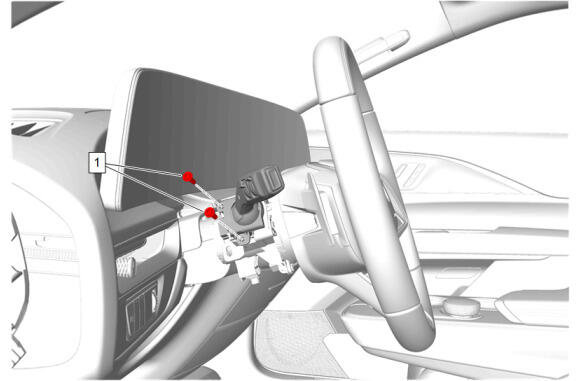

GM5981235Courtesy of GENERAL MOTORS COMPANY
Turn Signal Switch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Turn Signal Switch Bolt - - 3.3 N.m (29.2 lb in) Turn Signal Switch Replacement

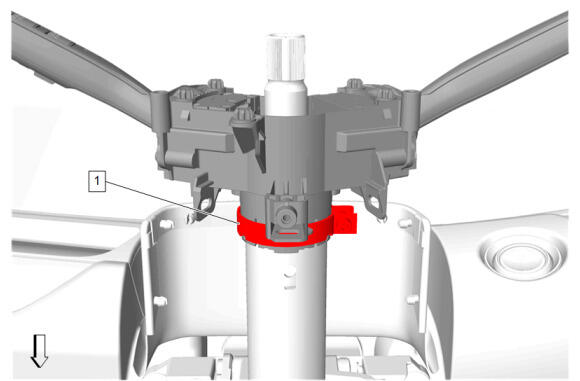

GM5989521Courtesy of GENERAL MOTORS COMPANY
Turn Signal Switch Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Turn Signal Switch Bracket Band Clamp - - 5 N.m (44 lb in) Turn Signal Switch Bracket Replacement

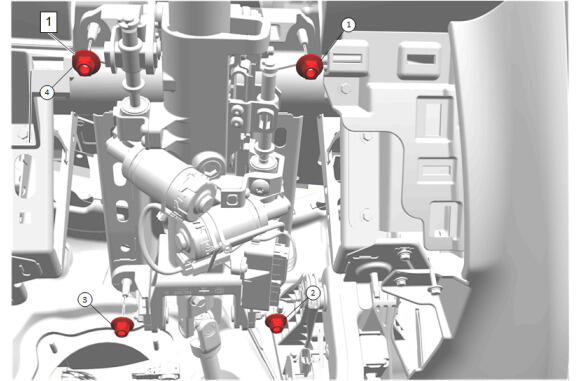

Steering Column Nut Sequence
GM6142840Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Column Nut [4x] - - 22 N.m (16 lb ft) Steering Column Replacement
