Fastener Specifications

Courtesy of GENERAL MOTORS COMPANY

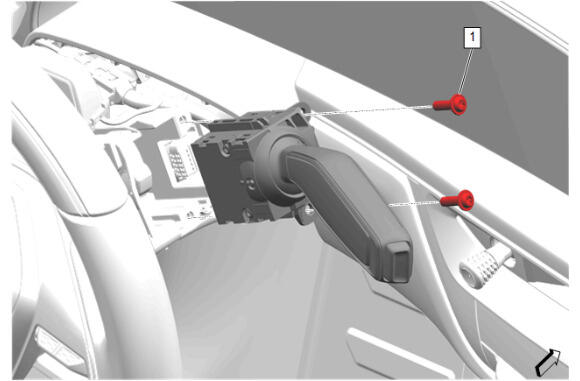

Gear Shift Control Module Bolts

Callout	Component Name [Component Quantity]	Single Use Fastener / Component	Thread Locking Adhesive Required	Specification	Procedure Link
Callout	Component Name [Component Quantity]	Single Use Fastener / Component	Thread Locking Adhesive Required	Metric (English)	Procedure Link
1	Automatic Transmission Electronic Control Bolt [2x]	-	-	3.3 N.m (29 lb in)	Gear Shift Control Module Replacement
