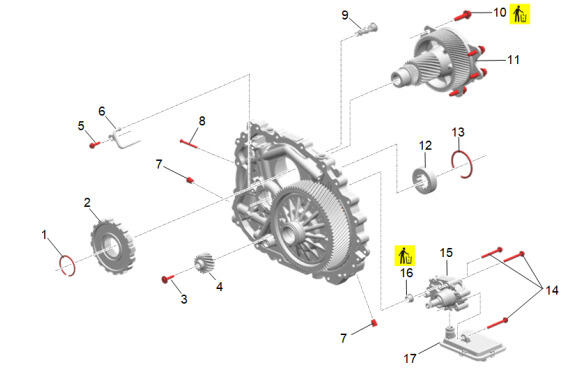

| 1 |
Park Gear Retaining Ring |
| 2 |
Park Gear |
| 3 |
Automatic Transmission Fluid Pump Drive Gear Bolt |
| 4 |
Automatic Transmission Fluid Pump Drive Gear |
| 5 |
Drive Motor Rotor Cooling Tube Bolt |
| 6 |
Drive Motor Rotor Cooling Tube |
| 7 |
Transmission Fluid Drain Plug [2x] |
| 8 |
Automatic Transmission Fluid Cooler Bypass Valve Pin |
| 9 |
Automatic Transmission Fluid Cooler Bypass Valve |
| 10 |
Automatic Transmission Differential Final Drive Pinion Gear Bearing Support Bolt [5x] |
| 11 |
Automatic Transmission Differential Final Drive Pinion Gear Bearing Support |
| 12 |
Drive Motor Rotor Bearing |
| 13 |
Drive Motor Rotor Bearing Retaining Ring |
| 14 |
Automatic Transmission Fluid Pump Bolt [3x] |
| 15 |
Automatic Transmission Fluid Pump |
| 16 |
Drive Motor Housing Seal |
| 17 |
Automatic Transmission Fluid Filter |
