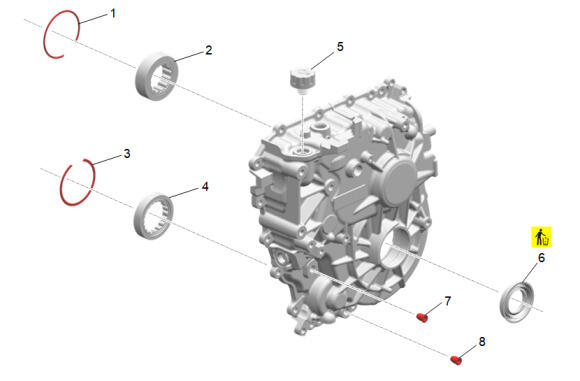

Automatic Transmission Case Components
| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Differential Final Drive Pinion Gear Bearing Retaining Ring |
| 2 | Automatic Transmission Differential Final Drive Pinion Gear Bearing |
| 3 | Automatic Transmission Differential Carrier Bearing Retaining Ring |
| 4 | Automatic Transmission Differential Carrier Bearing |
| 5 | Transmission Fluid Filler Cap |
| 6 | Front Wheel Drive Shaft Oil Seal |
| 7 | Automatic Transmission Fluid Level Hole Plug |
| 8 | Transmission Fluid Drain Plug |
