ECM Terminal Identification

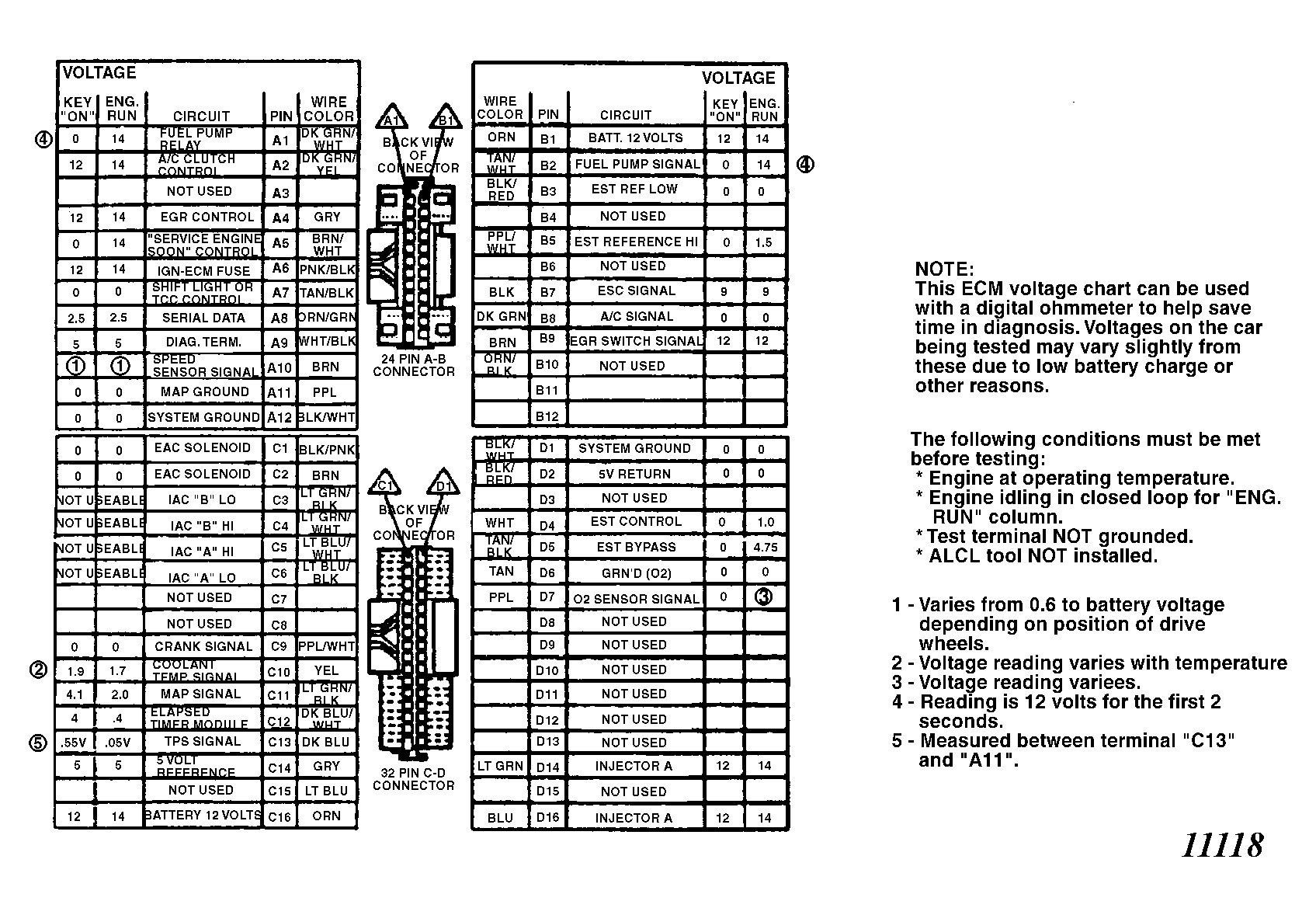

Fig 1: ECM Terminal ID & Voltage Values (2.8L TBI Engine)
G11118

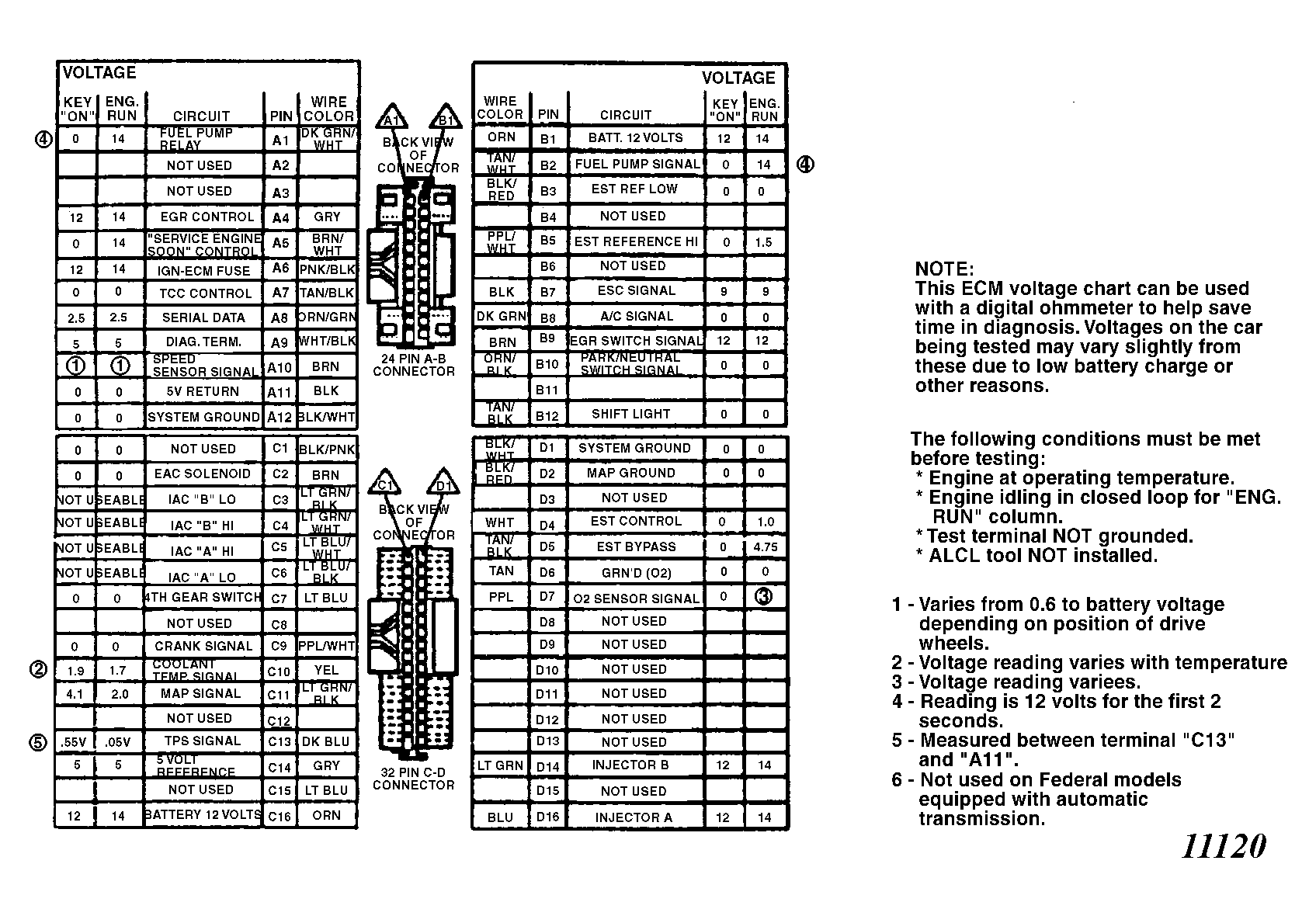

Fig 2: ECM Terminal ID & Voltage Values (4.3L TBI Engine)
G11120
