Chevrolet
>>
1986
>>
Astro Van Passenger, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
2.5L TBI Tests W/Codes
>>
Chart C1D - Map Output Check
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Chart C1D - Map Output Check

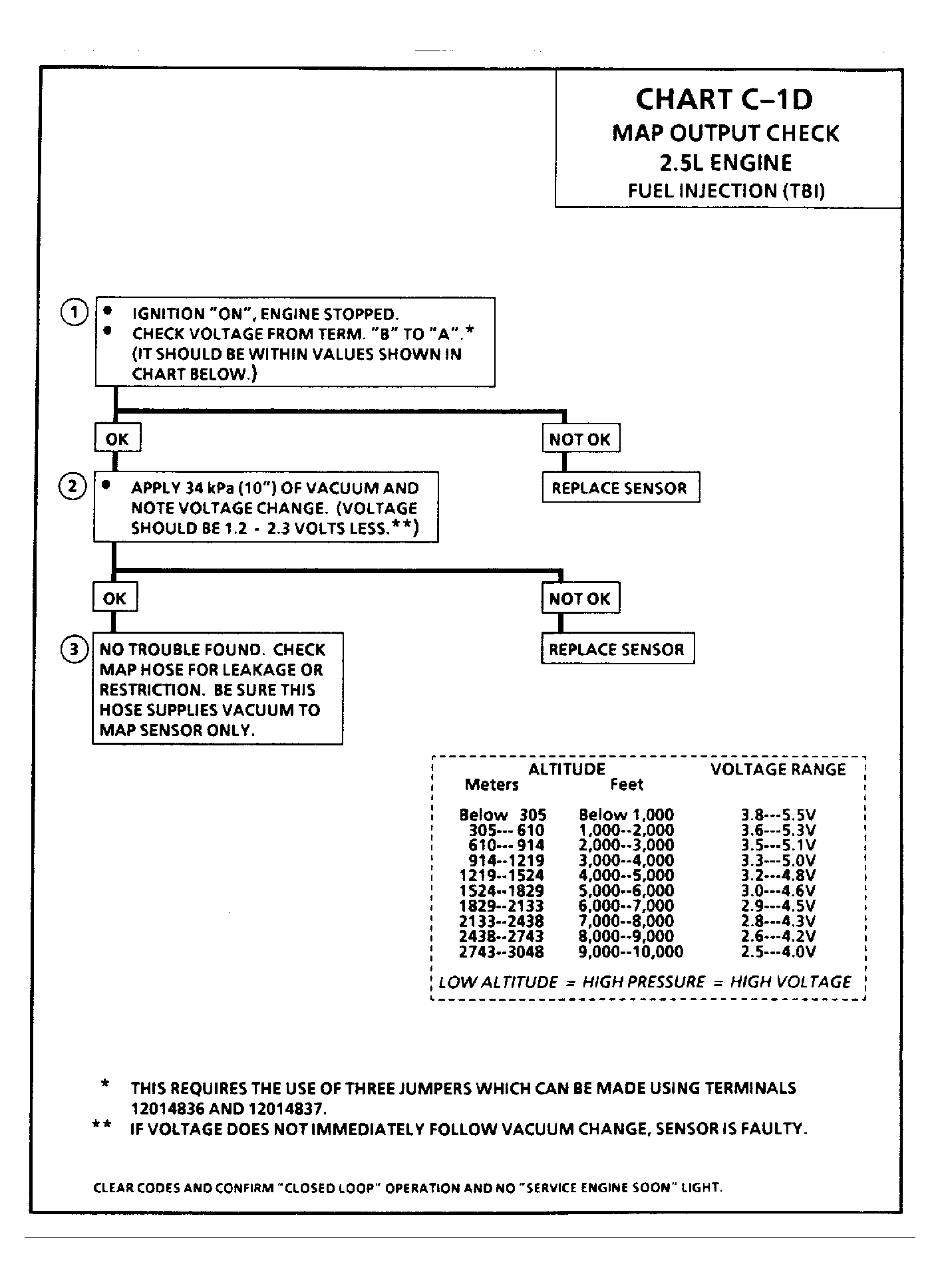

Fig 1: Chart C1D, Fuel Injection (TBI) MAP Output Check
Fig 2: Chart C1D, Fuel Injection (TBI) MAP Output Check
