Chart C4B - Ignition System Check

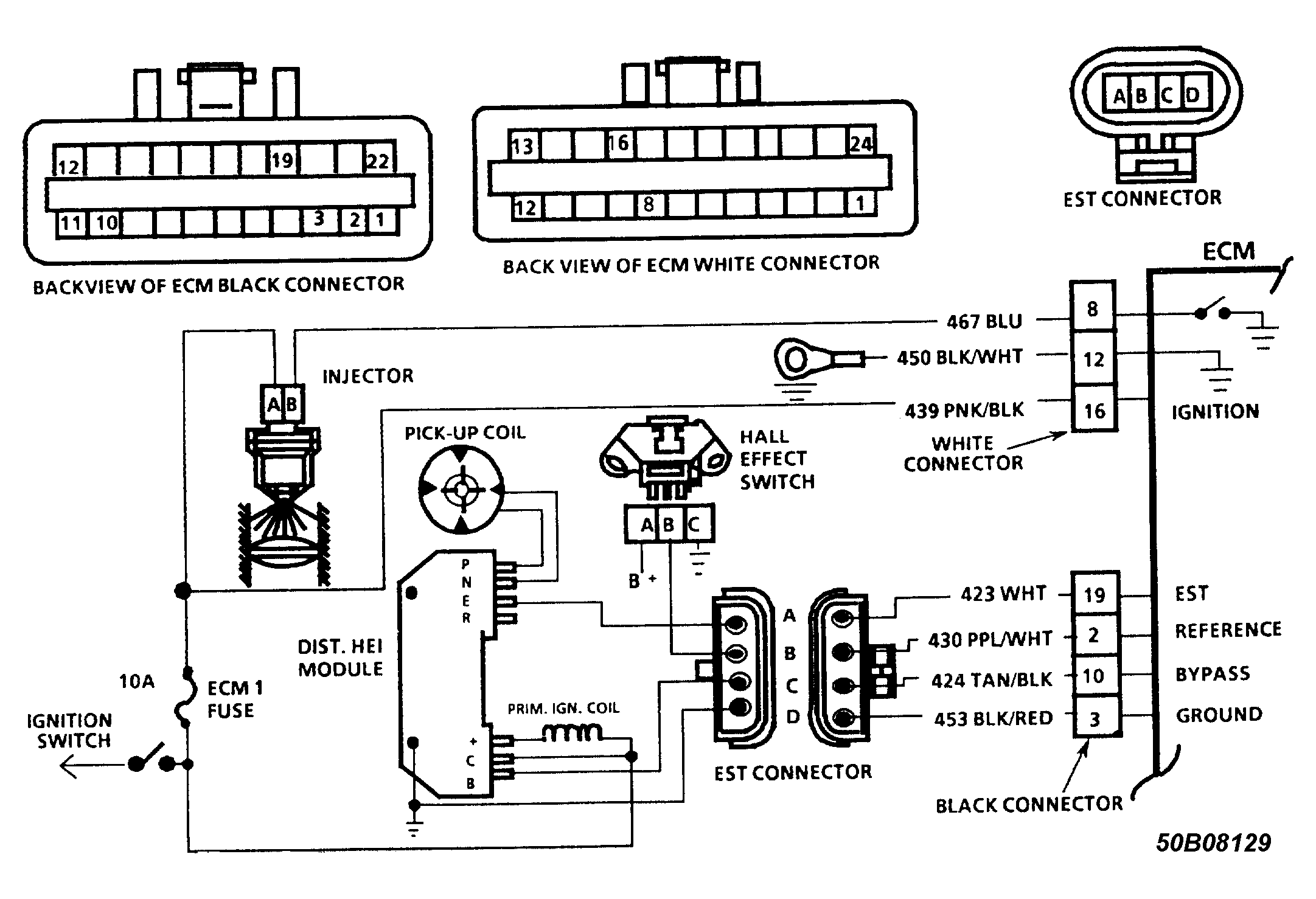

Fig 1: Chart C4B, Fuel Injection (TBI) Ign. Sys Check, Schematic

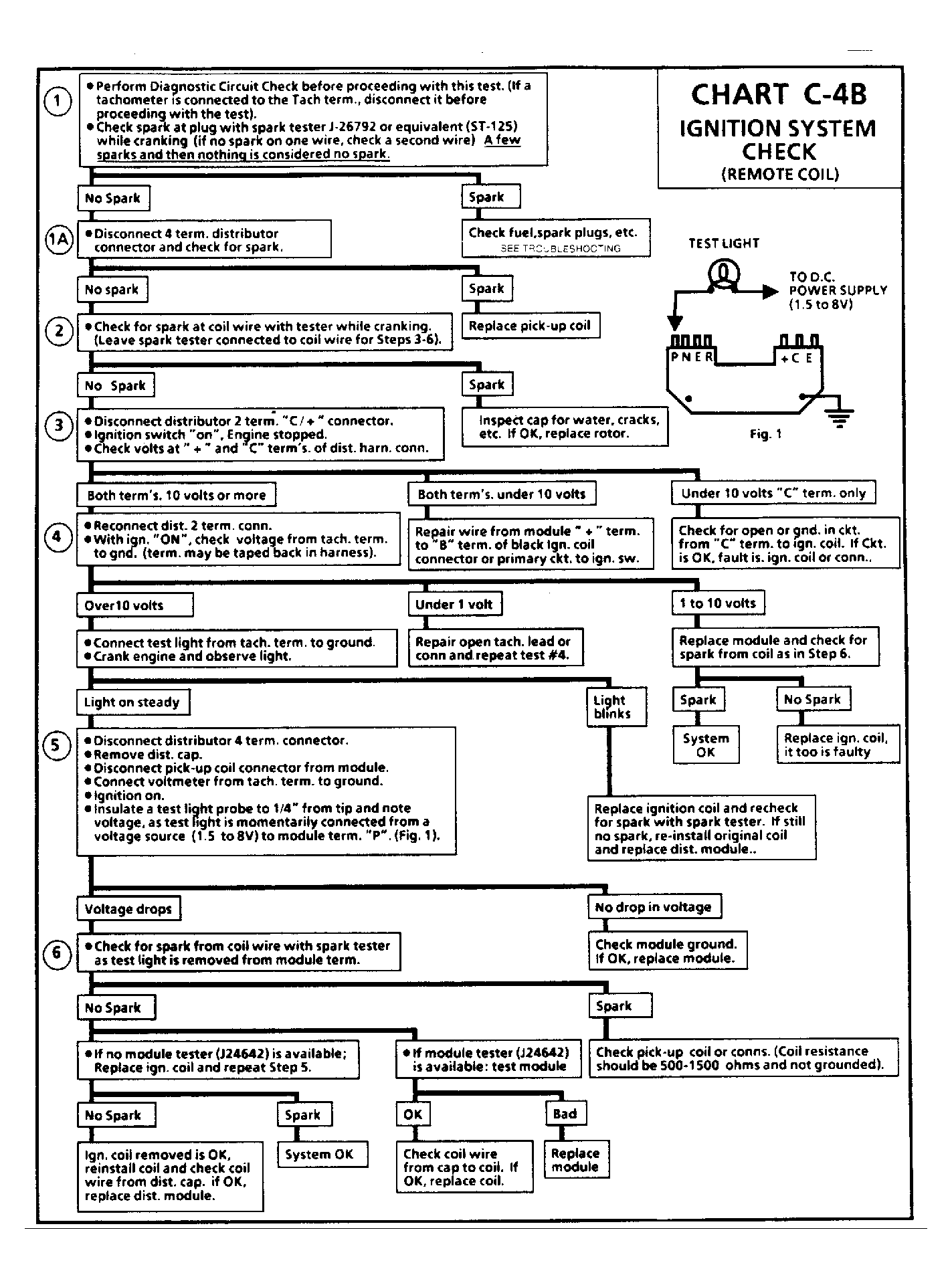

Fig 2: Chart C4B, Fuel Injection (TBI) Ign. Sys Check, Flow Chart
