Electronic/Powertrain Control Module (ECM/PCM)

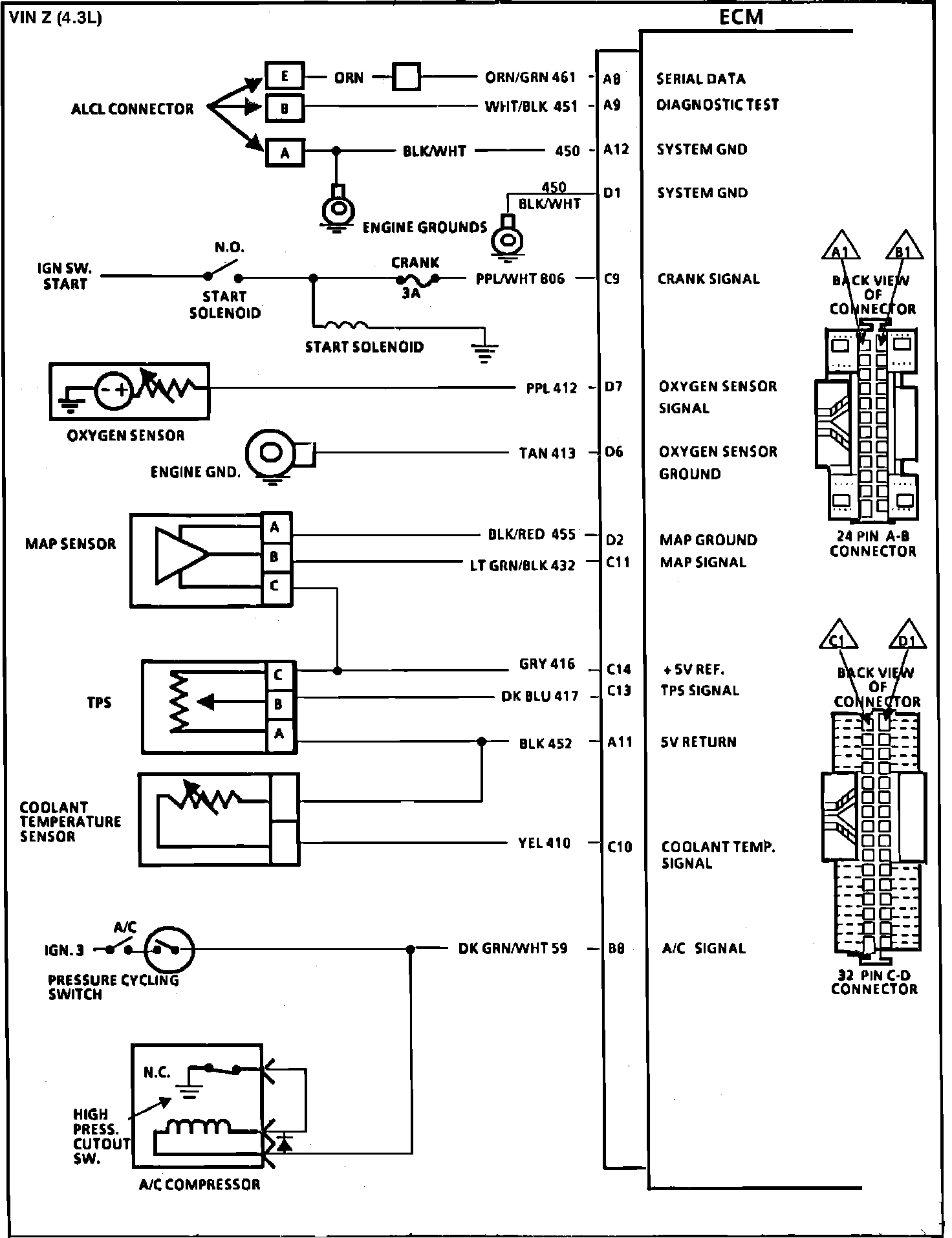

Fig. 047 ECM Wiring Diagrams (1 of 3):

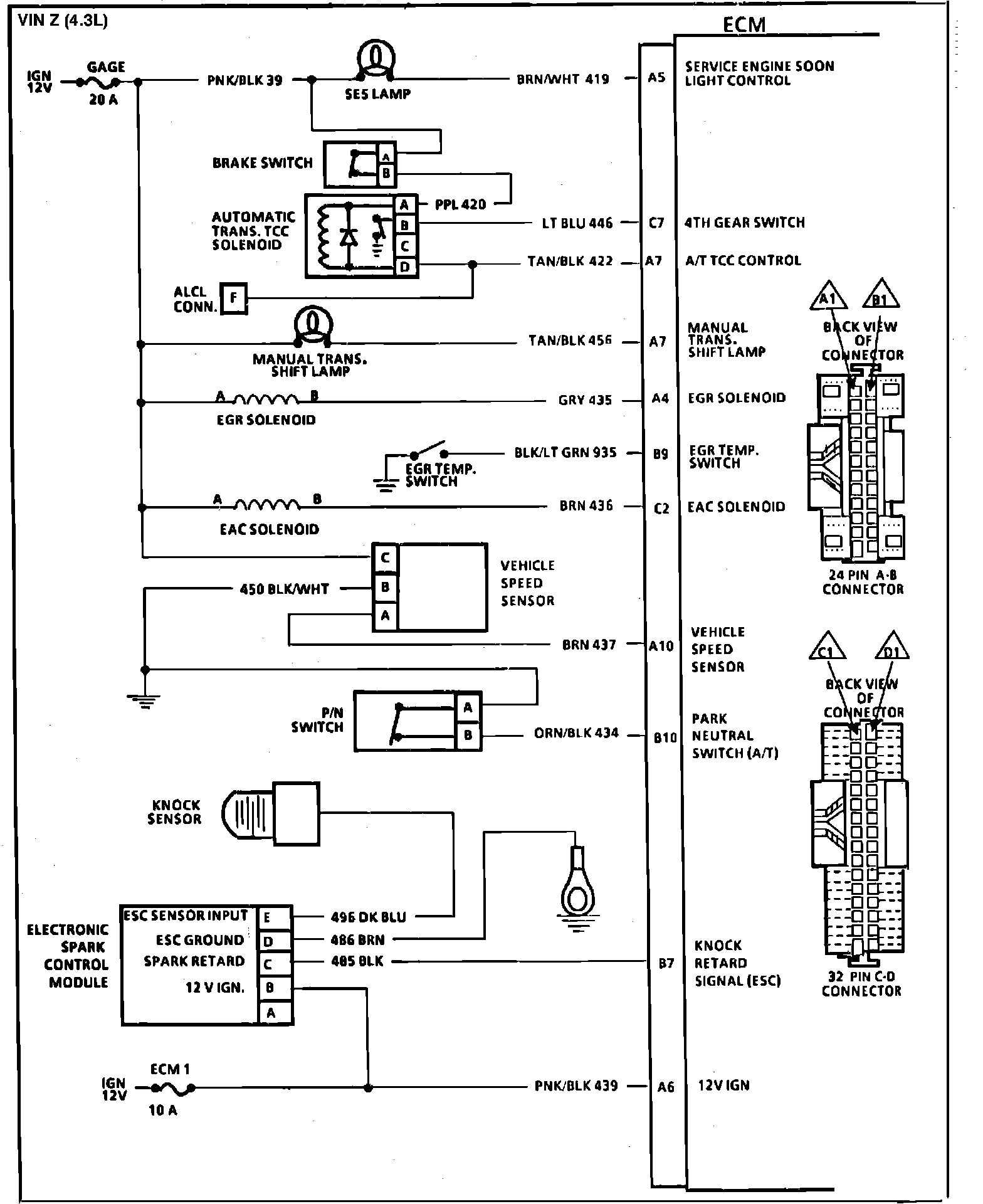

Fig. 048 ECM Wiring Diagrams (2 of 3):

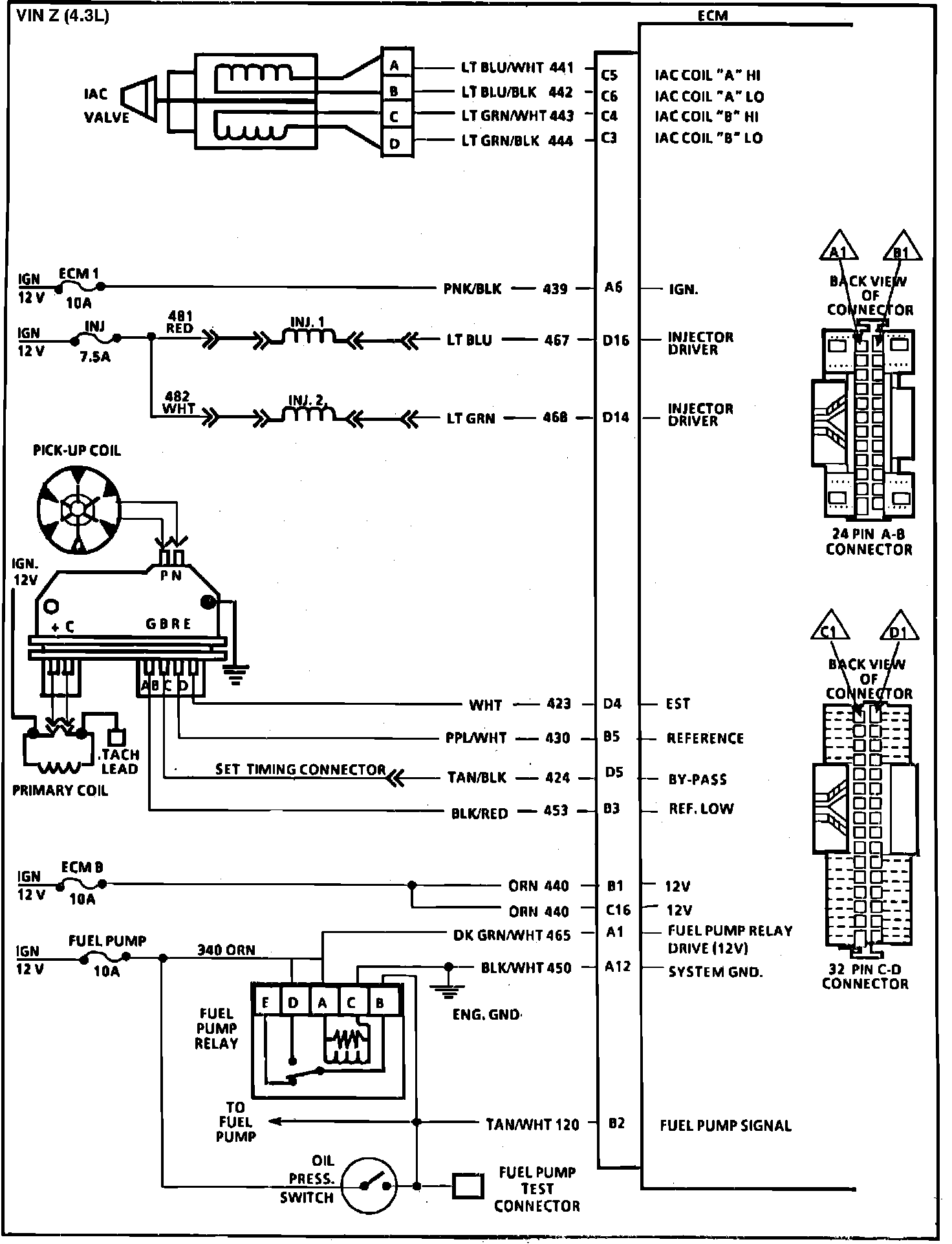

Fig. 049 ECM Wiring Diagrams (3 of 3):
