Manifold Pressure/Vacuum Sensor: Testing and Inspection

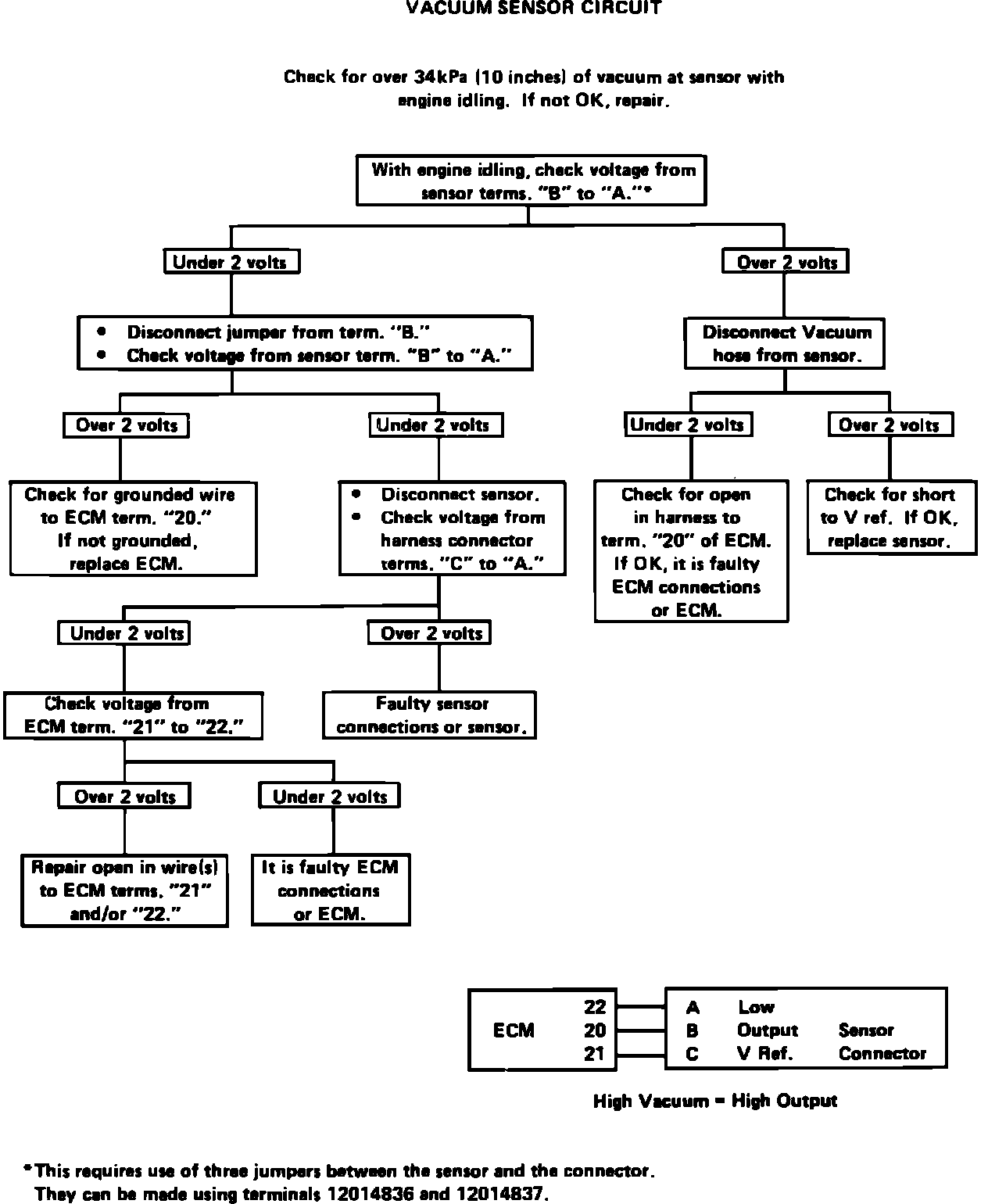

Fig. 7 Vacuum sensor diagnostic chart. All models with vacuum sensor (use this chart with EST diagnostic & performance charts):
