Oil Pressure Sensor: Locations

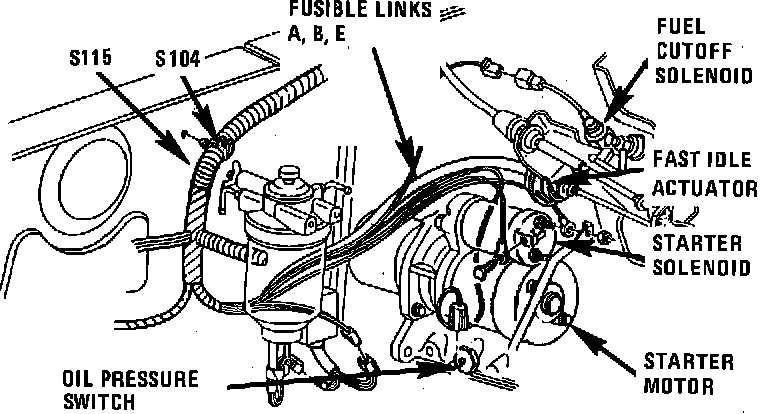

RH Side Of VIN D Engine.:




RH Side Of Engine, Below Starter (Diesel Engine Models)

Applicable to: 1986 Chevette & 1000
